Overview
To reduce the risk of serious injury or death to
yourself or others, read the Safety instructions
section found on the previous pages of this
manual before operating the machine.
Design and function
SB is a range of rig mounted hydraulic breakers
designed for all kinds of demolition works. No other
use is permitted.
SB has a solid body which means that the breaker
body is made in one piece. The accumulator is
integrated with the body.
The hydraulic breaker is operated from the driver's
cab of the carrier using the carrier's hydraulic
system. The breaker frequency is controlled by the
oil flow from the carrier.
Recommended working tools are listed in the
spare parts list.

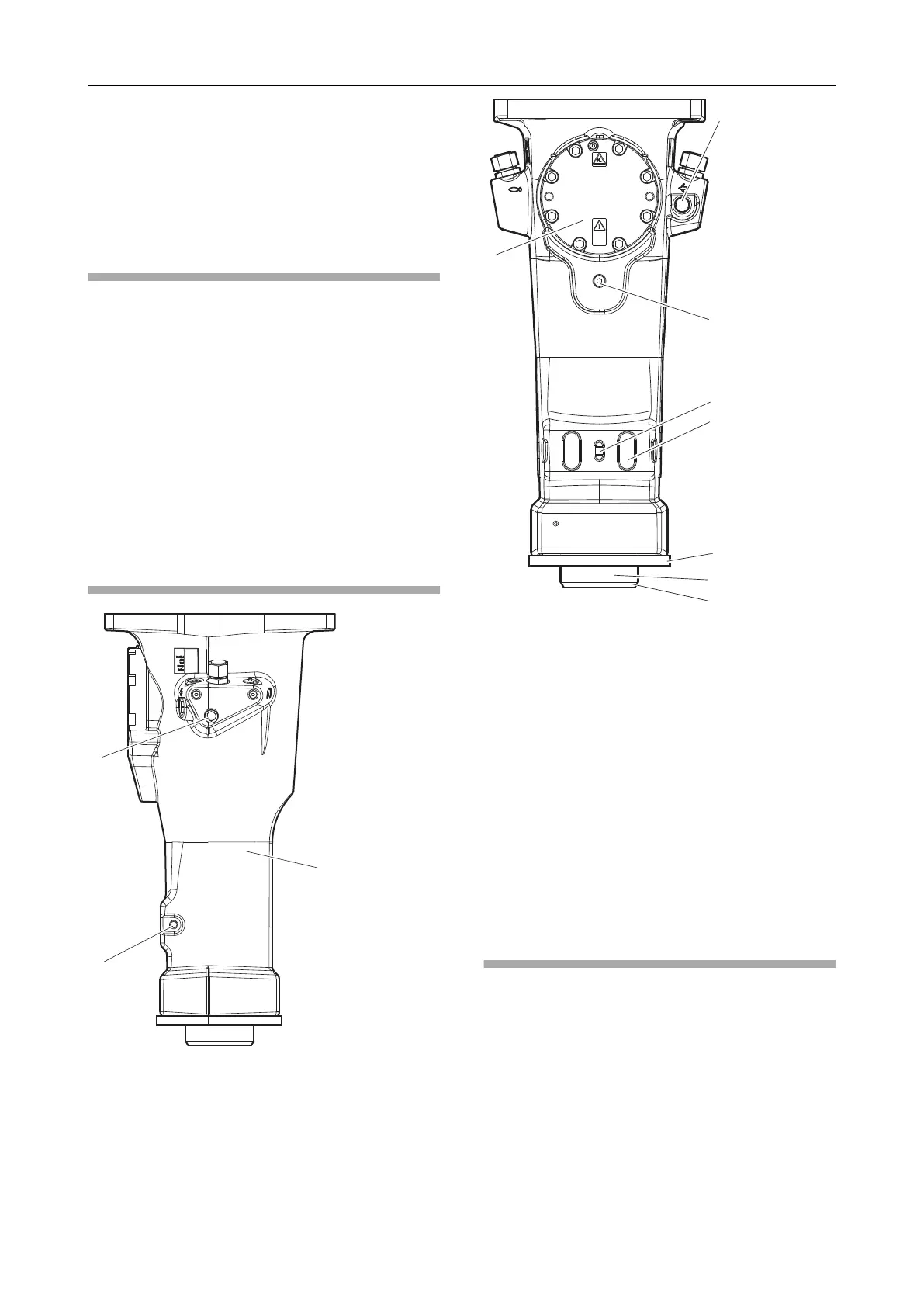

Main parts
A. Restrictor
B. Hammer body
C. Lock pin
D. Pressure relief valve
E. Accumulator
F. Oil drainage plug
G. Lock buffer
H. Tool retainer
I. Bushing
J. Scraper ring
K. Wear plate (only valid for SB 302 Tunnel and
SB 452 Tunnel)
Labels
The machine is fitted with labels containing
important information about personal safety and
machine maintenance. The labels must be in such
condition that they are easy to read. New labels
can be ordered from the spare parts list.
Safety and operating instructions SB 52, 102, 152, 202, 302, 302Tunnel, 452, 452Tunnel,
552
10 © Construction Tools PC AB | 9800 0648 01 | 2018-01-01
Original instructions
