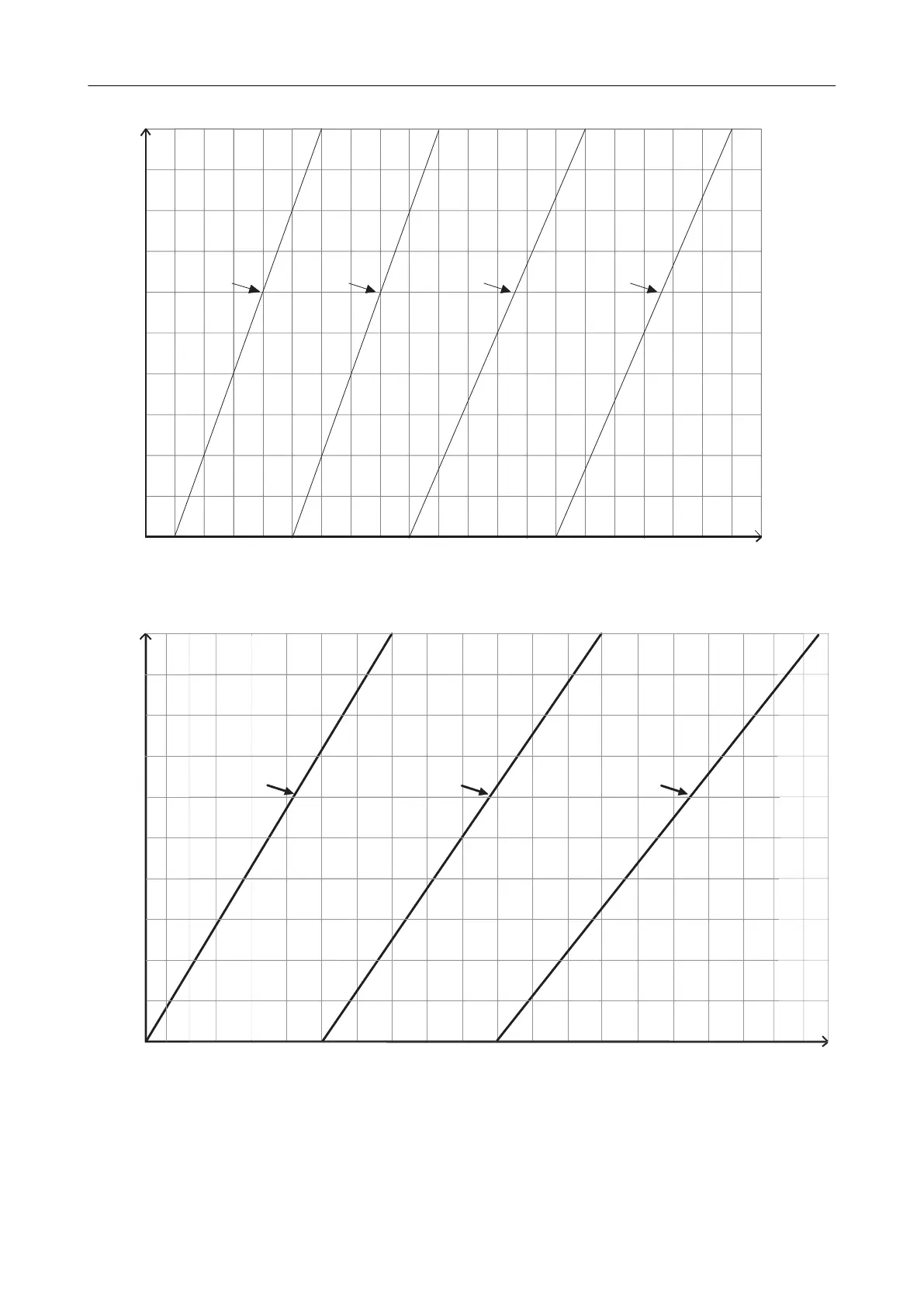

Epiroc SB 52 - SB 102: 100-150 Bar; SB 152: 100-150 Bar

SB 102: 100–150 bar
150
145
140
135
130
125
120
115
110
105
100
bar
15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
l/min
Ø 3.0 mm
Ø 4.5 mm
Ø 3.8 mm
Ø 3.3 mm
SB 152: 100–150 bar
150
145
140
135
130
125
120
115
110
105
100
bar
25
30
35 40 45
l/min
Ø 4.0 mm
Ø 5.5 mm
Ø 4.5 mm
SB 52, 102, 152, 202, 302, 302Tunnel, 452, 452Tunnel,
552
Safety and operating instructions
