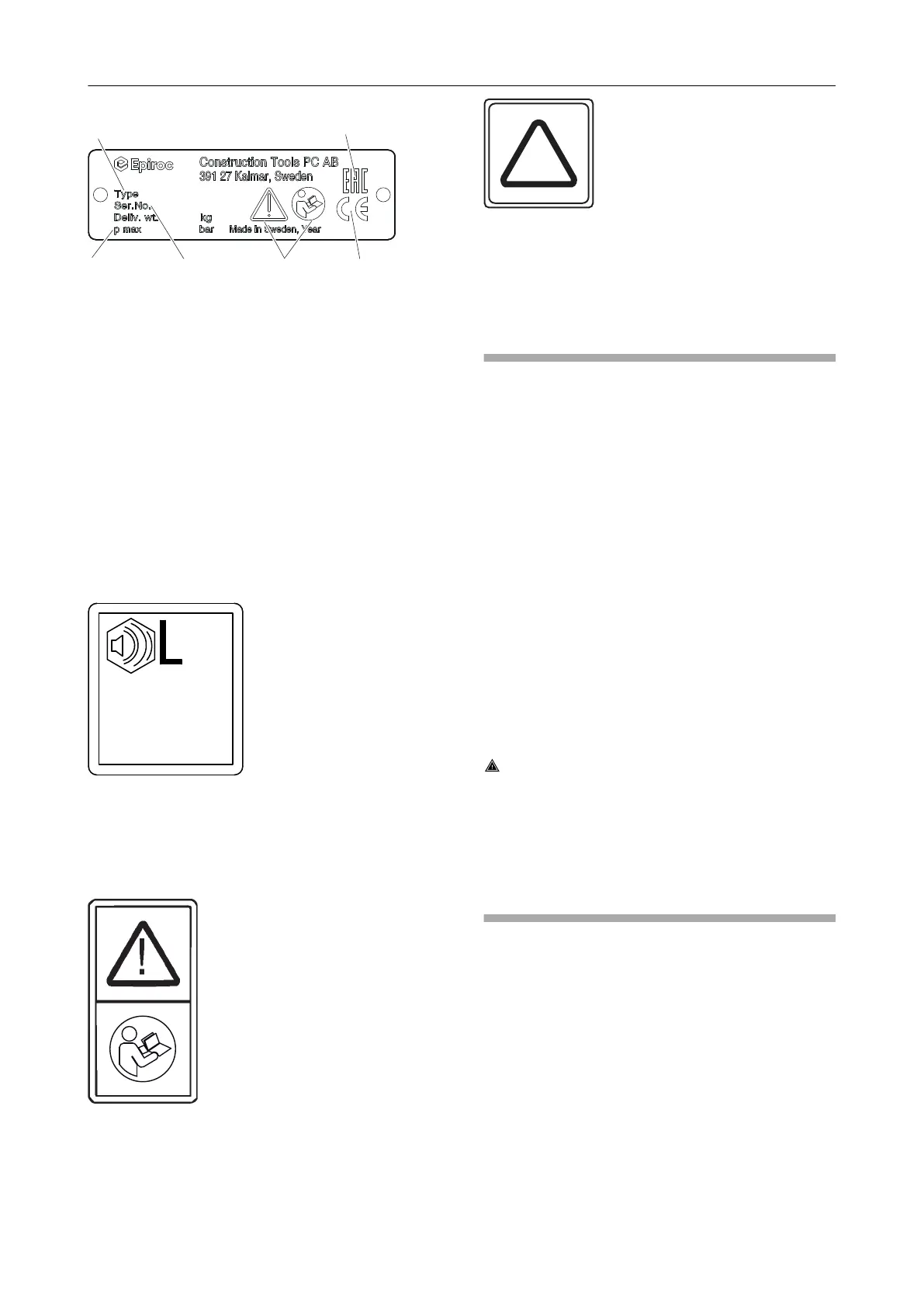

Data plate
A. Machine type
B. Maximum hydraulic pressure
C. Serial number
D. The warning symbol together with the book
symbol means that the user must read the
safety and operating instructions before the
machine is used for the first time.
E. The CE symbol means that the machine is EC-
approved. See the EC Declaration of
Conformity which is delivered with the machine
for more information.
F. The EAC symbol means that the machine is
EAC approved.
Noise level label
The label indicates the guaranteed noise level
corresponding to EC-directive 2000/14/EC. See
"Technical data" for accurate noise level.
Labels on the accumulator
Read through the overhaul instructions carefully
before servicing or charging.
The accumulator must only be charged with
Nitrogen.
NOTICE Only certified personnel are allowed to
work with the accumulator.
Guarantee
The guarantee or product liability will be
invalidated by the following:
•
Use other than intended
•
Maintenance work not being carried out or
being carried out incorrectly
•
The use of the wrong consumables
•
The use of non-approved parts
•
Damage due to wear
•
Special applications without the required safety
facilities
•
Damage due to improper storage
•
Changes not carried out by or in consultation
with the manufacturer
Transport
WARNING Falling hydraulic breaker
If the hydraulic breaker is tipping over and falling, it
may cause serious injury.
►
Place the hydraulic breaker in a safe position
where it cannot fall over and cause damage.
Lifting the hydraulic breaker
Carefully check that the carrier is stable enough
when transporting, performing maintenance, or
other kinds of work with the hydraulic breaker.
The hydraulic breaker is delivered in a box. To lift
the hydraulic breaker in a safe way, fit the lifting
strap in the manner shown in the illustration below.
SB 52, 102, 152, 202, 302, 302Tunnel, 452, 452Tunnel,
552
Safety and operating instructions
© Construction Tools PC AB | 9800 0648 01 | 2018-01-01
Original instructions
11
