Page 6
2.4 Optional Accessories
Remote Temperature Sensor (Model: RTS300RA)
Acquiring of battery temperature for undertaking temperature compensation of control
parameters, the standard length of the cable is 2m (can be customized if want longer).
The RTS300RA connects to the MC1.5-3.81-2L port (10
th
) on the controller.

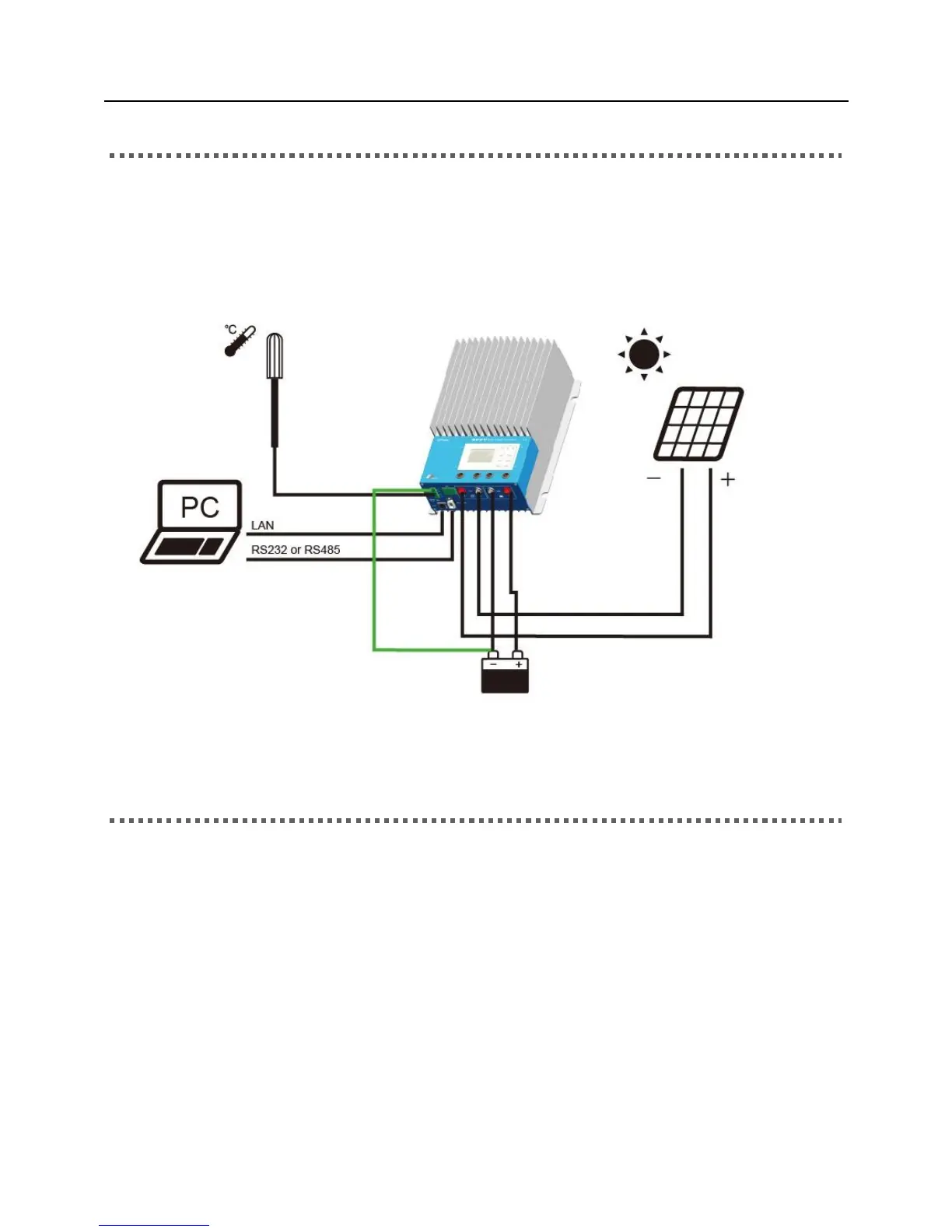

Figure2-2 Wiring diagram
Remote Battery Voltage Sensor Port (MC1.5-3.81-2L)
Detect the battery voltage exactly, the standard length of the cable is 2m (can be
customized if want longer). The RBVS200VAconnects to the MC1.5-3.81-2L port
(11
th
) on the controller.
