EPSON Stylus Color 600 Service Manual
Rev. A
6-
No. Standard Remarks
11 <Lubrication Point>
A round hole of the left frame of ASF
(“GEAR, 34” is inserting to this hole)
Completely wipe off any grease stack out
to inner side of ASF.
<Lubricant Type> G-26
<Lubrication Amount>
Evenly apply inside the hole
12 <Lubrication Point>
Oil pad of carriage assembly
This application must be made only when;
*Replacing the carriage assembly
*Replacing oil pad
Use a precise syringe to apply it. If
accidentally apply too much oil to oil pad,
thrown it away and take a new oil pad
again.
Leave oil pad for a while to wait until oil is
evenly infiltrate and install it on the
carriage assembly.
<Lubricant Type> O-8
<Lubrication Amount>
0.6cc
Note that This is an amount to be applied
new oil pad when replacing it.
Never apply oil to the CR guide shaft directly or additionally apply to oil pad. This may
cause fatal damage to the components of the printer.

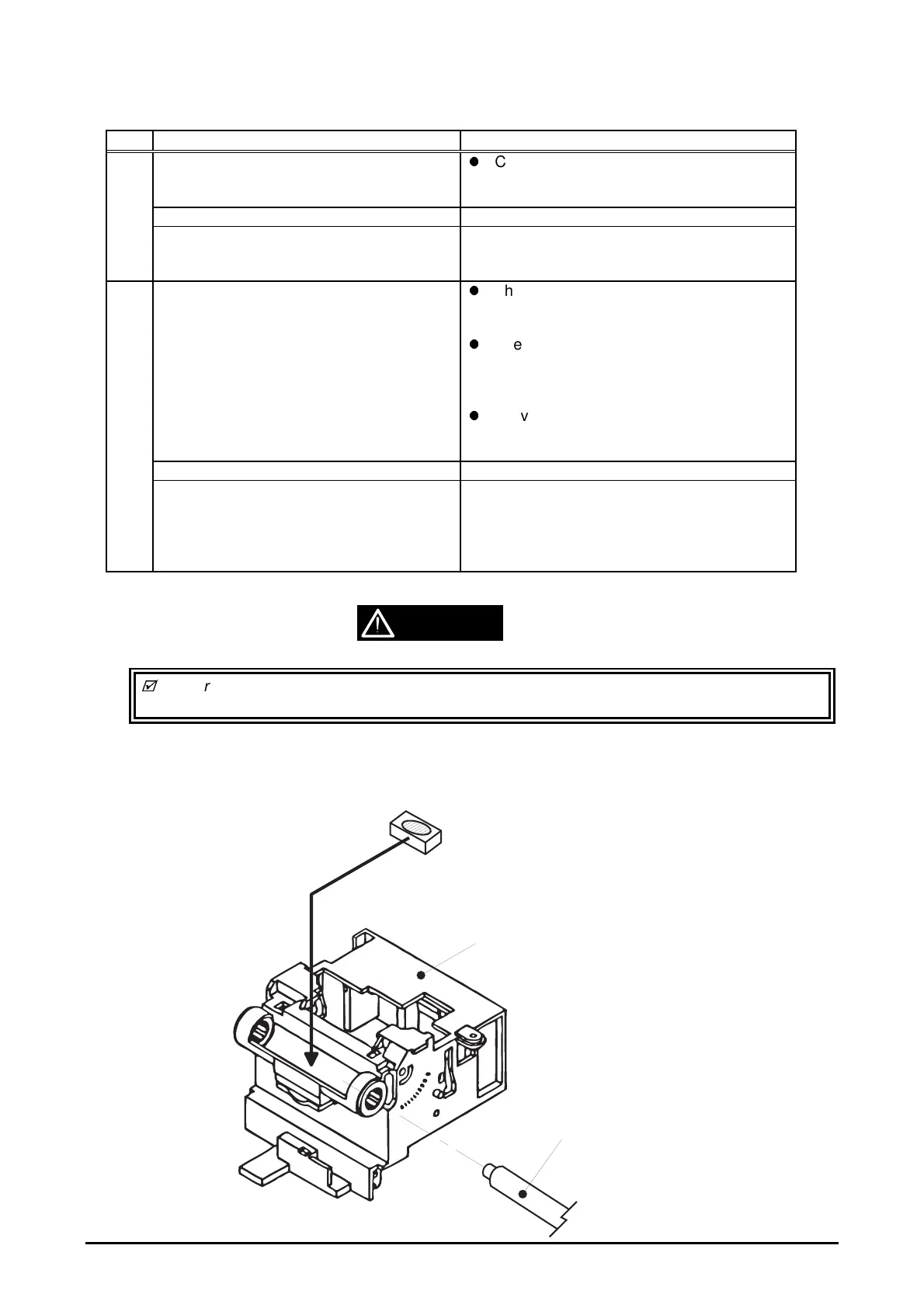

Table 6-4. Lubrication Points (Continued)
WARNING
No.12
(Oil pad)
*Never apply the oil exceeding 0.6cc.
Carriage Assembly
(bottom view)
"SHAFT, CR, GUIDE"
To Next Page
