3.1.2 Specification for Screws
Table 3-1 lists the abbreviation of screws and its use. Refer to the screw number in the following table to
identify the type of screw shown in the disassembly procedures.

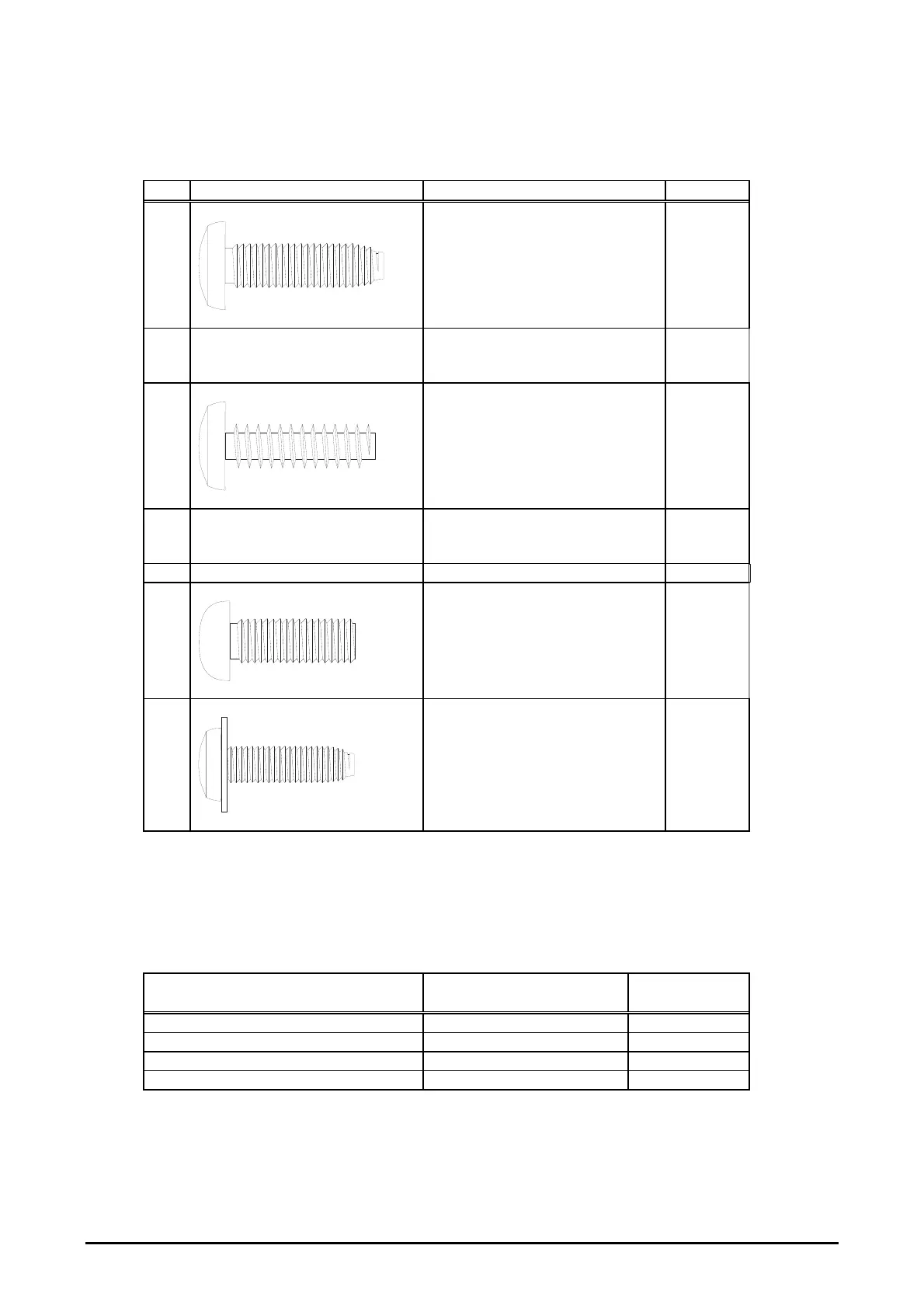

No. Shape Name Standard
1 CBS
(Cross/Bind/S-tight screw)
M3x6
2 M3x10
3 CBP
(Cross/Bind/P-tight screw)
M3x6
4 M3x10
5 M3x8
6 CP
(Cross/Pan-head screw)
M3x4
7 CBS with Washer
(Cross/Bind/S-tight screw with
washer)
M3x6
3.1.3 Tools
Table 3-2 lists the tools required for disassembling and assembling the printer. Use only specified tools to
avoid damaging the printer.
Name Availability EPSON
Parts Code
Philips Screw Driver (No.1) Commercially available B743800200
Philips Screw Driver (No.2) ditto B743800400
Tweezers ditto B741000100
Hexagonal Box Driver (5.5mm) ditto B741700100
Table 3-1. Screw Identification Table
Table 3-2. Required Tools
