Wall plate
The wall plate is in three pieces when shipped. Use the included M4 × 12 mm bolts (×5) to attach the separate
pieces together before mounting the projector. See page 23 for instructions.

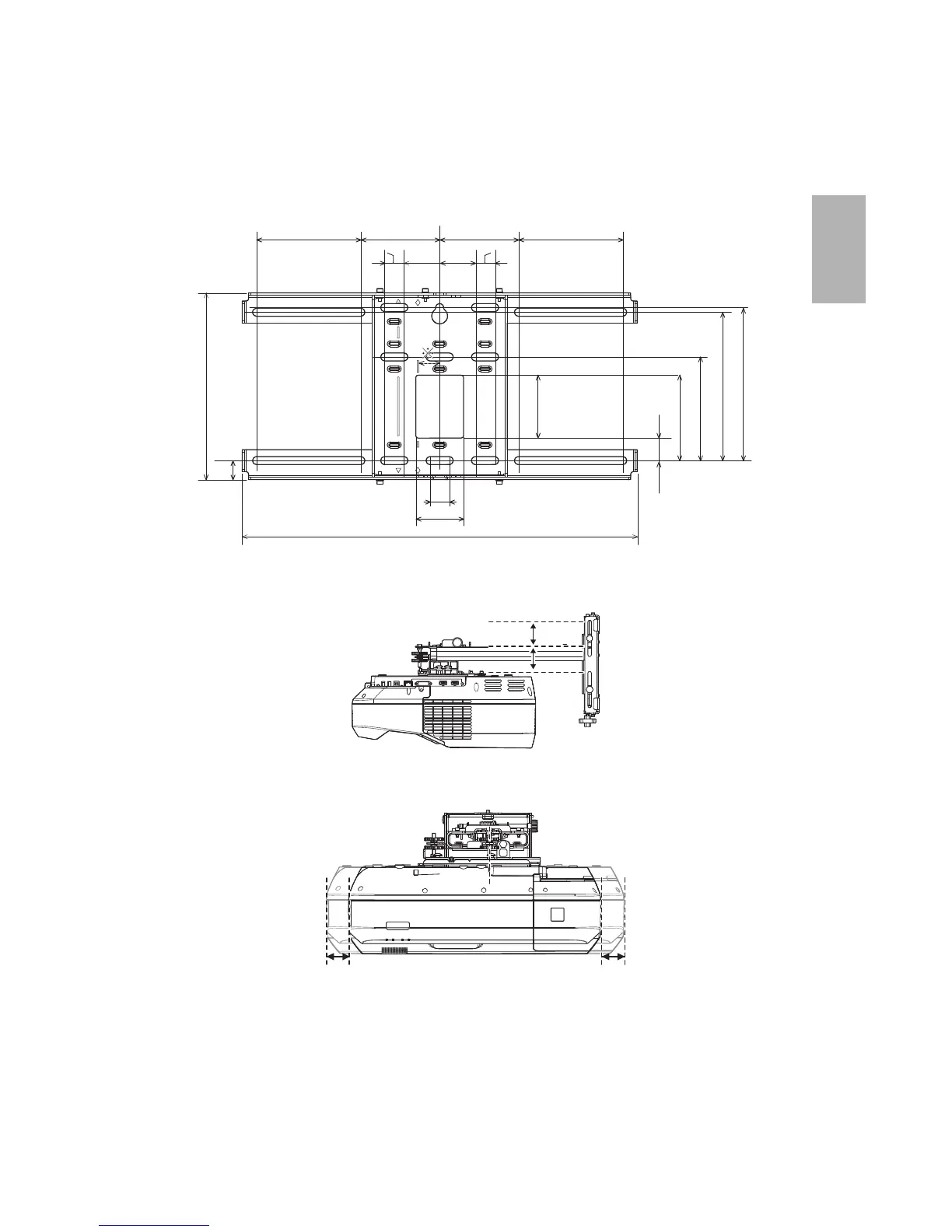

Vertical slide adjustment range
Horizontal slide adjustment range
19.5 in. (496 mm)
5.2 in. (131 mm)
1.1 in.
(28.3 mm)
4.2 in. (107.3 mm)
5.1 in. (130.2 mm)
7.3 in. (186.4 mm)
7.6 in. (192.3 mm)
1.8 in.
(45 mm)
1.8 in.
(45 mm)
3.9 in. (99 mm) 3.9 in. (99 mm) 5.2 in. (131 mm)
3.1 in.
(79 mm)
0.9 in. (24 mm)
2.4 in. (60 mm)
9.2 in. (234.4 mm)
0.9 in.
(24 mm)
0.9 in. (24 mm) 0.9 in. (24 mm)
1.5 in. (38 mm)
1.5 in.
(38 mm)
1.8 in. (45 mm) 1.8 in. (45 mm)
