Threaded Rod Installation
The projector mount (A) can be secured to unistrut,
angle or channel assembly overhead structural
members (trusses or I-beams) using four 1/4” diameter
threaded rods.
WARNING: IMPROPER INSTALLATION CAN
RESULT IN SERIOUS PERSONAL INJURY OR
DAMAGE TO EQUIPMENT! Structural members
MUST be capable of supporting five times the
combined weight of all equipment being mounted.
1. Carefully determine required mount position.
IMPORTANT ! : This will require knowing the lens
to screen distance. See projector specifications
for determining this distance.
NOTE:
Threaded rod and installation hardware not
included.

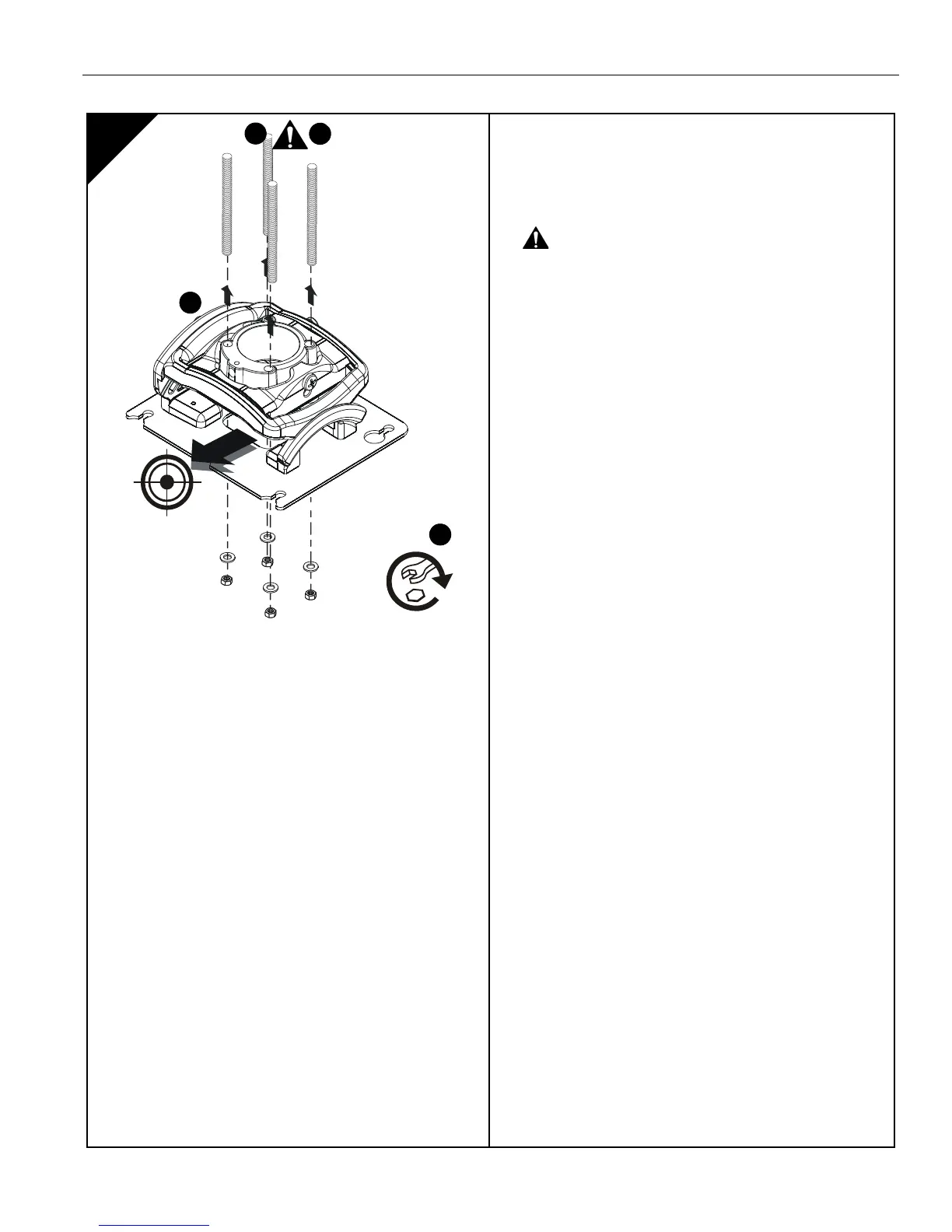

2. Secure one end of the threaded rod to the structural
member.
3. Install four 1/4-20 jam nuts on each threaded rod.
4. Install the projector mount (A) on the threaded rod.
NOTE: Hole in the projector mount (A) allows socket
wrench access without unit disassembly.
5. Secure the projector mount to the threaded rod
using four 1/4-20 nuts.
1c
1
2
4
x 4
5
To Next Page
