Epson CHF 4000 - Roll Adjustment; Adjusting the projectors roll alignment using locking and micro-adjustment screws.

Installation Instructions CHF4000/4500
14

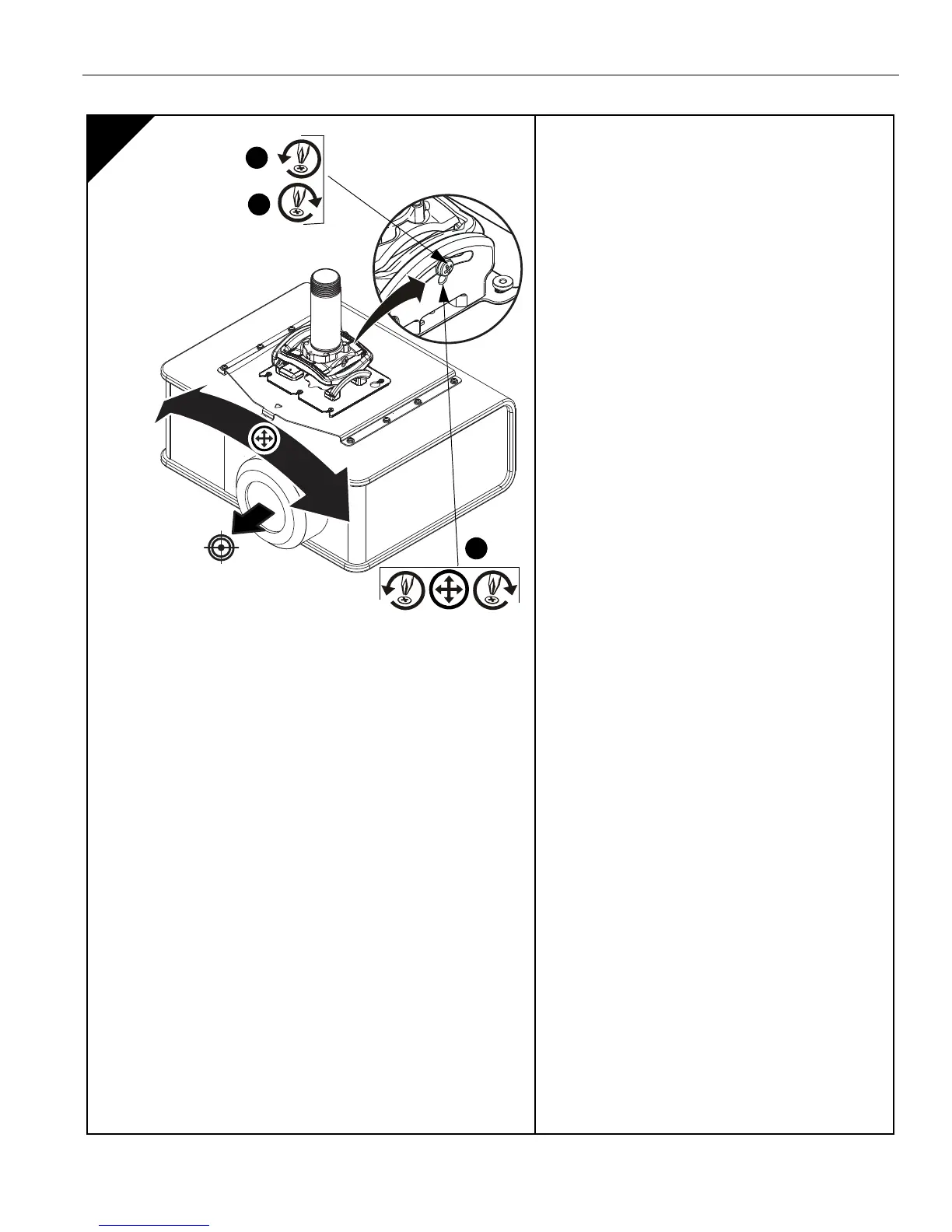

Roll Adjustment
1. Loosen ROLL adjustment locking screw using a
#2 Phillips screwdriver.
2. Turn ROLL micro-adjustment screw right or left
using a #2 Phillips screwdriver until image is
properly aligned on target.
3. Tighten ROLL adjustment locking screw using a
#2 Phillips screwdriver.
3b
1
3
2
Example only
of projector
