CHF4000/4500 Installation Instructions
13

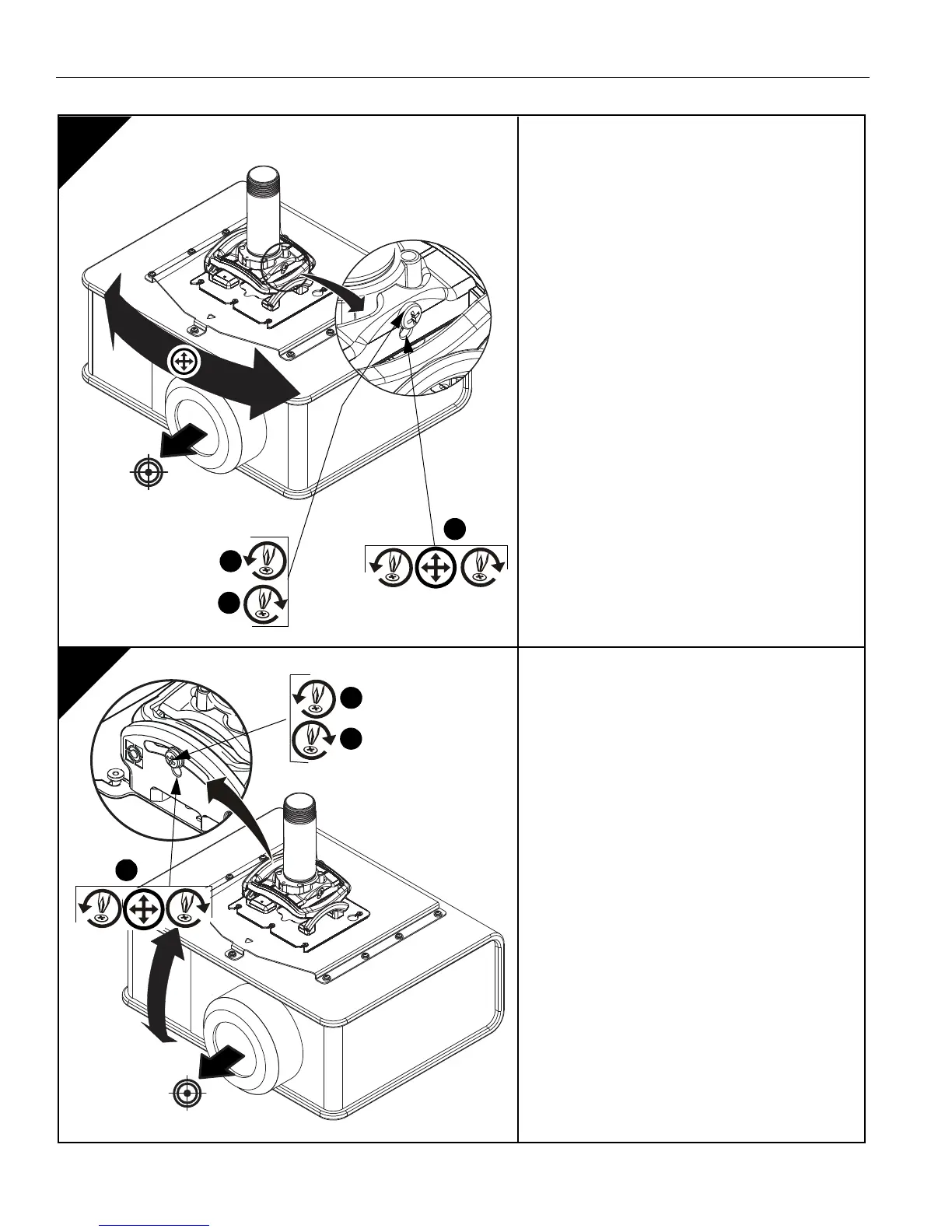

Pitch Adjustment
1. Loosen PITCH adjustment locking screw using a
#2 Phillips screwdriver.
2. Turn PITCH micro-adjustment screw right or left
using a #2 Phillips screwdriver until image is
properly aligned on target.
3. Tighten PITCH adjustment locking screw using a
#2 Phillips screwdriver.
ADJUSTMENTS
YAW Adjustment
1. Loosen YAW adjustment locking screw using a
#2 Phillips screwdriver.
2. Turn YAW micro-adjustment screw right or left
using a #2 Phillips screwdriver until image is
properly aligned on target.
3. Tighten YAW adjustment locking screw using a
#2 Phillips screwdriver.
3a
3
1
3
2
1
3
2
Example only
of projector
Example only
of projector
