CHF4000/4500 Installation Instructions
8
1a

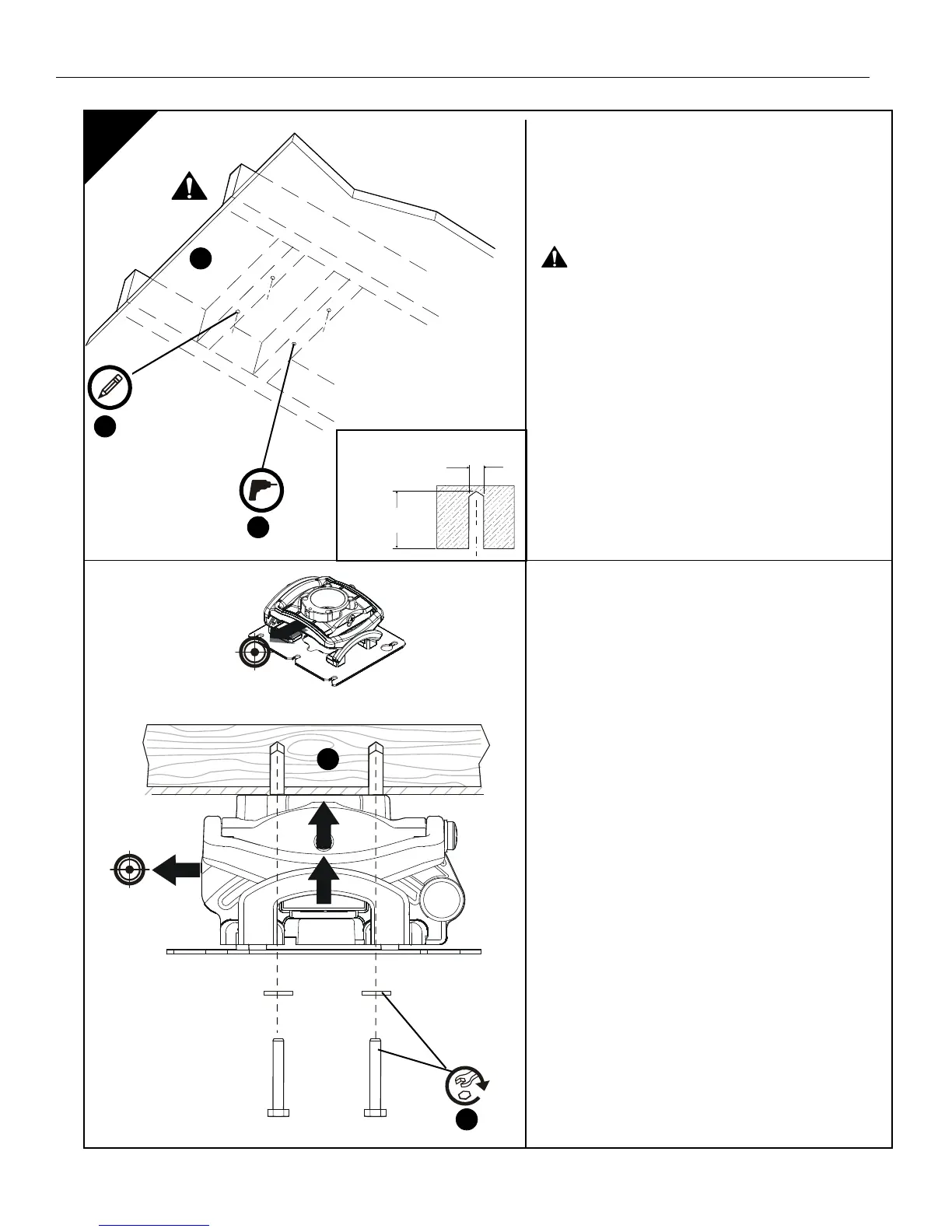

Wood Stud Installation
1. Carefully determine required mounting location.
IMPORTANT ! : This will require knowing the lens
to screen distance. See projector specifications for
details on determining this distance.
WARNING: IMPROPER INSTALLATION CAN
RESULT IN SERIOUS PERSONAL INJURY OR
DAMAGE TO EQUIPMENT! Structural members
MUST be capable of supporting five times the
combined weight of all equipment being mounted.
2. Using the projector mount (A) as a guide, mark four
mounting hole locations with a pencil or similar tool.
3. Drill four 1/8" (3mm) dia. pilot holes to a depth of
1-3/4" (45mm) deep.
4. Align four mounting holes in projector mount (A)
with four pilot holes.
IMPORTANT ! : Make sure mount is properly
oriented towards target before securing to
structure.
5. Secure projector mount (A) to structure using four
1/4" flat washers and four 1/4" x 3" lag bolts (not
included).
Ø 3mm
(Ø 1/8”)
45mm
(1-3/4”)
X4
X4
5
3
1
2
4
(A)
x 4
