CHF4000/4500 Installation Instructions
11
Install Projector With Interface Bracket to
Projector Mount
1. Orient projector with interface bracket as shown at
left.
2. Lift projector so that screws are aligned with
mounting slots in mount base (A).
3. Slide projector with mounting bracket onto
mounting slots in mount base until screws are
seated against the back of mounting slots.
WARNING: IMPROPER INSTALLATION CAN
LEAD TO PROJECTOR FALLING RESULTING IN
SERIOUS PERSONAL INJURY OR DAMAGE TO
EQUIPMENT. Make certain mounting slots in mount
base slide under screws and that screws are
seated in the back of slots.
PROJECTOR INSTALLATION

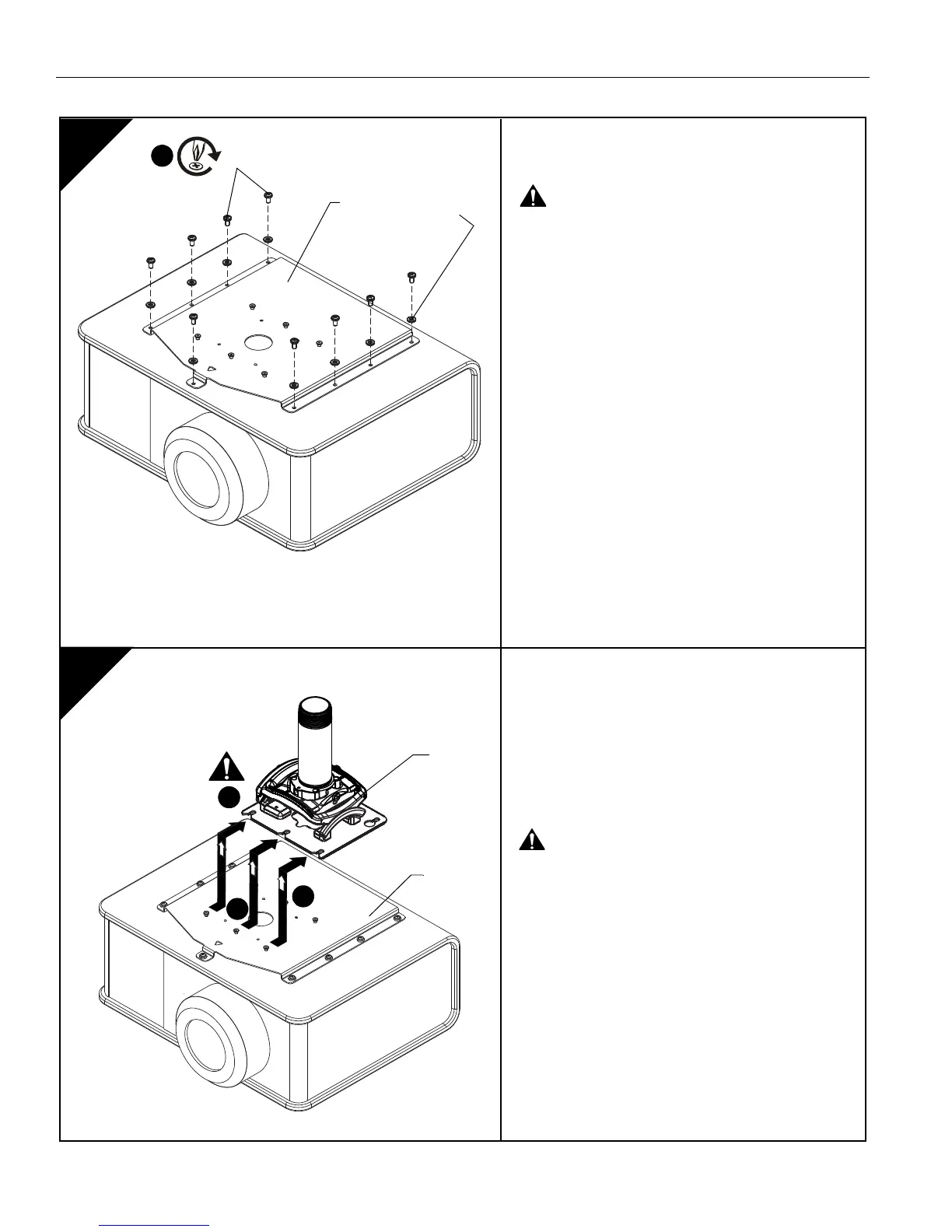

Install Interface Bracket to Projector
WARNING: IMPROPER INSTALLATION CAN
LEAD TO PROJECTOR FALLING RESULTING IN
SERIOUS PERSONAL INJURY OR DAMAGE TO
EQUIPMENT. DO NOT substitute hardware. Use
only the hardware provided by the manufacturer.
1. Line up mounting holes on projector with interface
bracket (C) hole pattern.
2. Secure interface bracket (C) to projector using
nine M4x10mm Phillips head screws (H) and nine
M4 washers (J).
2b
2
Example only
(C)
(A)
1
(C)
2a
(H) x 9
(J) x 9
of projector
3
3
Example only
of projector
