Installation Instructions CHF4000/4500
6
1
(F)
or
(B)
3
(E)
2
CEILING INSTALLATION
NOTE: Projector mount can be mounted flush against
the ceiling without using the ceiling pipe. See
Sections 1a, 1b and 1c for flush mounting
options. Additional hardware may be required.
Threaded Pipe Installation
1. Carefully determine required mounting location.
IMPORTANT ! : This will require knowing the lens
to screen distance. See projector specifications
for details on determining this distance.

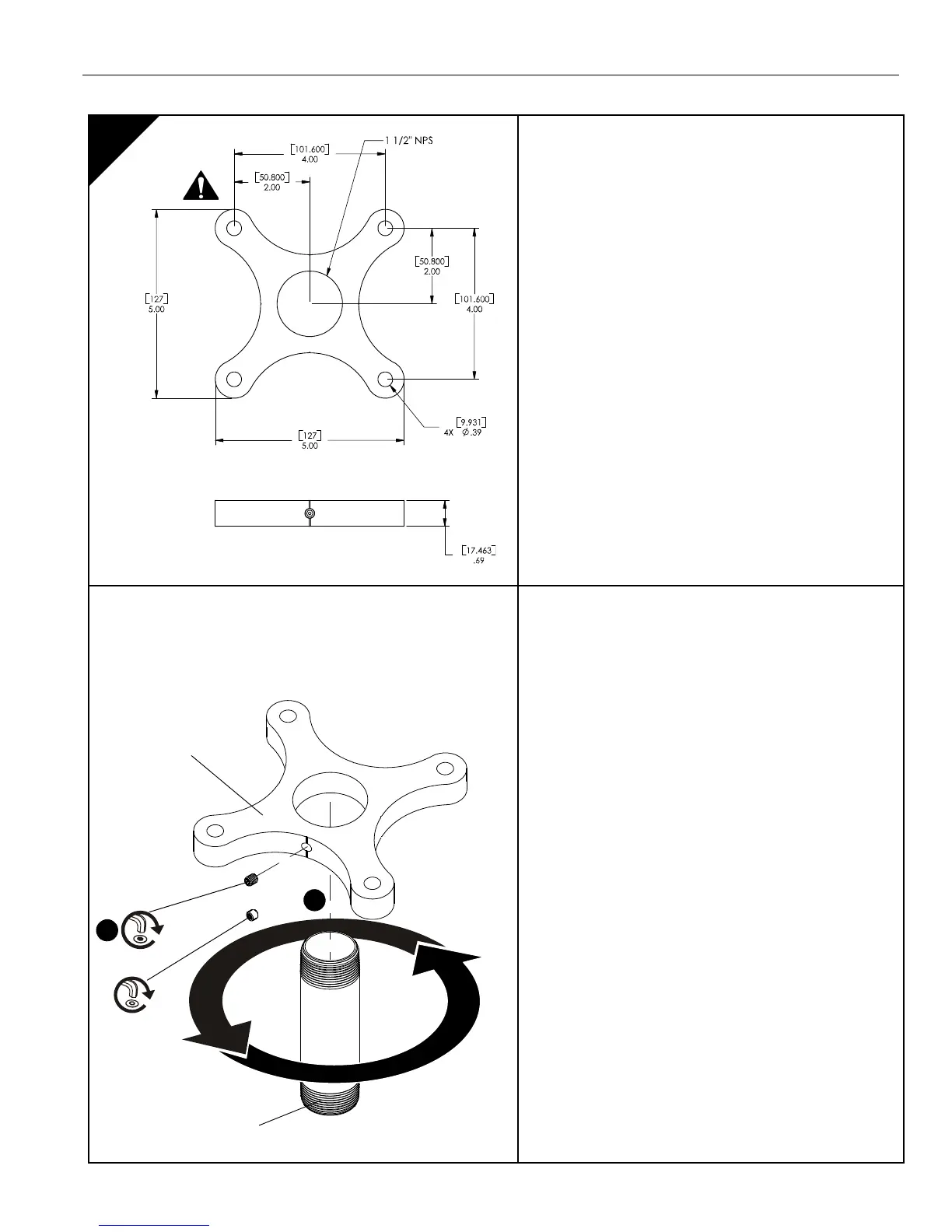

2. Securely install ceiling plate (D) to ceiling joists.
See drawing on the left for bolthole spacing.
NOTE: If using only two holes for mounting, you must
use opposing holes.
Thread Ceiling Pipe into Ceiling Plate
1. Align ceiling pipe (B) with installed ceiling plate (D).
2. Turn ceiling pipe (B) to thread onto ceiling plate (D)
until hand-tight, with a minimum of four threads
engaged.
3. Install 5/16-18 x 3/8" set screw (E) or 5/16-18 x 3/8"
security set screw (F) into ceiling plate to secure
pipe to plate.
(D)
