Epson EB-2155W User Manual

Using ESC/VP21 Commands
129
Cable Layouts
Serial connection
• Connector shape: D-Sub 9-pin (male)
• Projector input port name: RS-232C
• Cable type: Crossover (null modem) cable

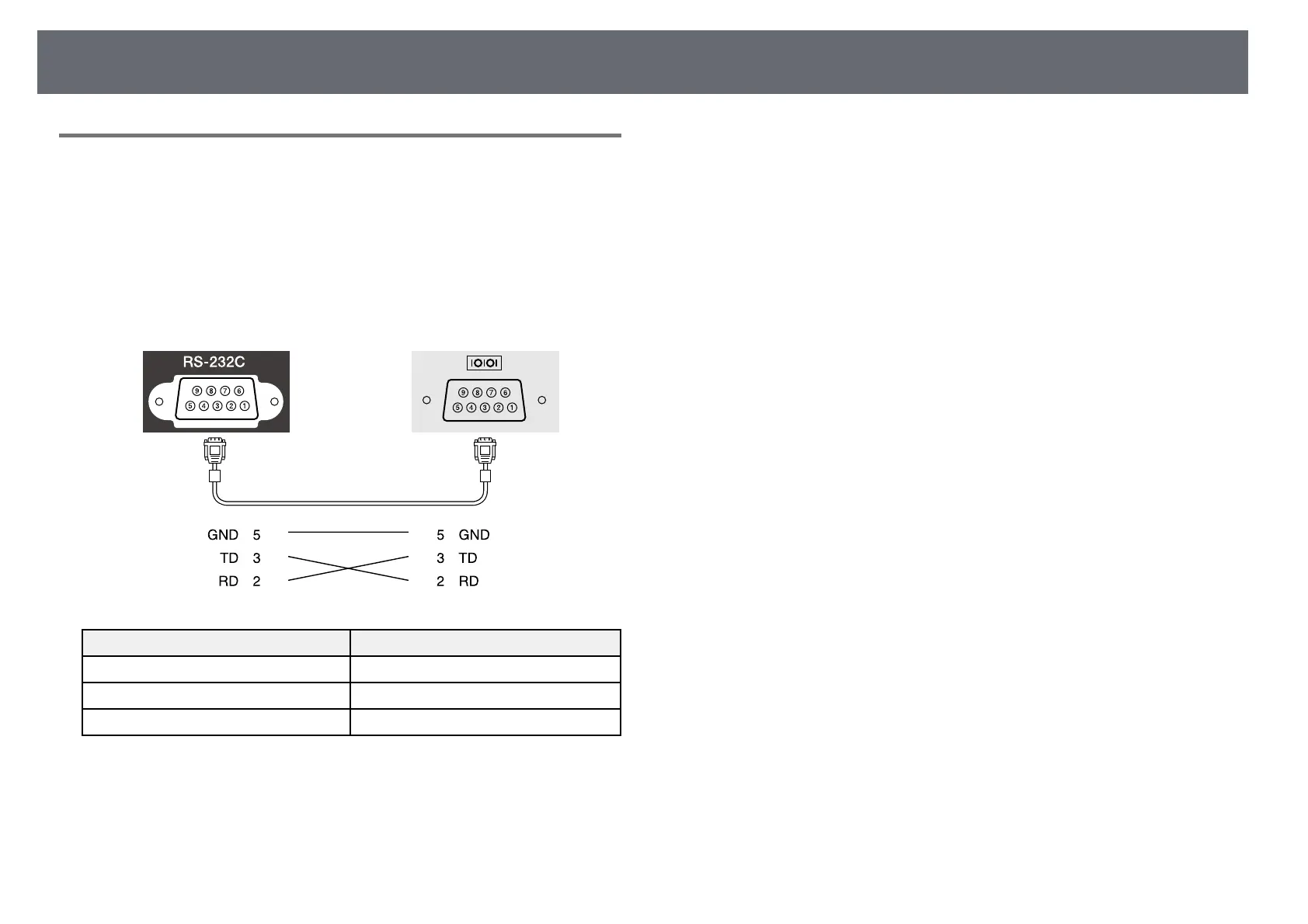

In the following illustration, the projector side is shown on the left, and the
computer side on the right:
Signal name Function
GND Signal wire ground
TD Transmit data
RD Receive data
Communications protocol
• Default baud rate setting: 9600 bps
• Data length: 8 bit
• Parity: None
• Stop-bit: 1 bit
• Flow control: None

Epson EB-2155W Specifications

General

Projection Technology	3LCD
Resolution	WXGA (1280 x 800)
Brightness	5000 lumens
Contrast Ratio	15, 000:1
Throw Ratio	1.38 - 2.24:1
Speakers	16 W
Connectivity	HDMI, VGA, USB, Wireless
Zoom Ratio	1.6x
Keystone Correction	Vertical ±30 degrees, Horizontal ±30 degrees
Dimensions	377 x 291 x 101 mm
