Name Function
I
S-Video port
For S-video signals from video sources.
J
Audio Out port
Outputs audio from the currently projected image to an
external speaker.
K
Monitor Out port
Outputs to an external monitor the analog signal from the
computer connected to the Computer port or the BNC
port. You cannot output signals input from other ports or
component video signals.
L
DisplayPort
Inputs video signals from DisplayPort compatible
computers. This projector is compatible with
HDCP g .
M
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP g .
N
Audio3 port
Inputs audio from equipment connected to the
DisplayPort or the HDMI port.
O
HDBaseT port
Connects a LAN cable to the optional HDBaseT
Transmitter.
s "Connecting an HDBaseT Transmitter" p.37
s "Optional Accessories" p.148
P
LAN port
Connects a LAN cable to connect to a network.
Q
SDI port (EB-G6900WU
only)
Inputs SDI signals from a video equipment. This projector
supports SD-SDI (Standard Definition) and HD-SDI
(High Definition).
R
Service port
This port is used by maintenance personnel to control the
projector. This should not normally be used.

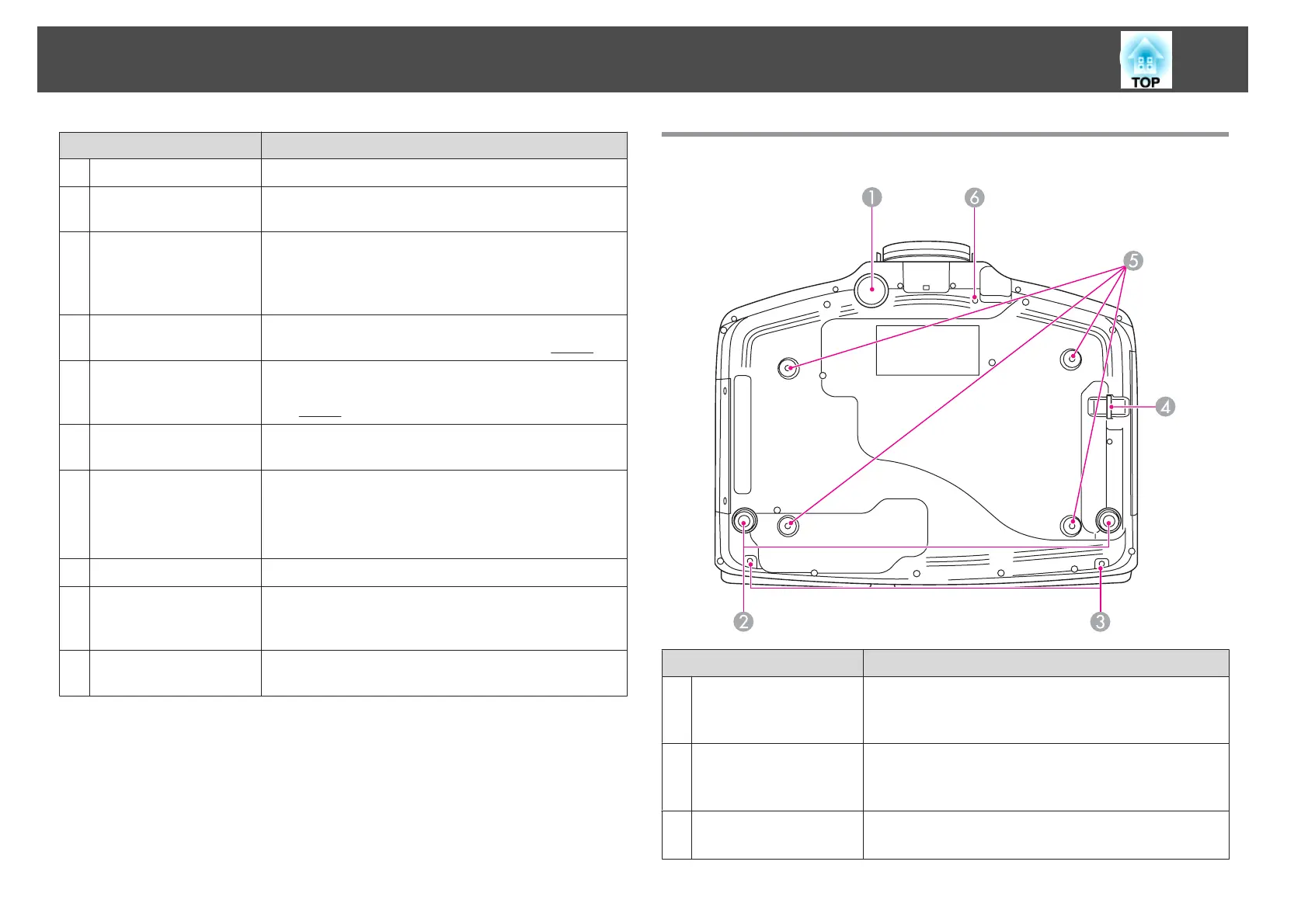

Base
Name Function
A
Front adjustable foot
When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Image Position" p.27
B
Rear feet
When setup on a surface such as a desk, turn to extend and
retract to adjust the horizontal tilt.
s "Adjusting the Horizontal Tilt" p.27
C
Screw holes to fix the
cable cover
Screw holes to fix the cable cover in place.
s "Attaching the Cable Cover" p.38
Part Names and Functions
10
