a
• By pressing the [ ] button on the control panel, you can perform
the selected adjustment method directly.
• You cannot combine multiple adjustment methods. However, you
can use Point Correction after performing Curved Surface or Corner
Wall.

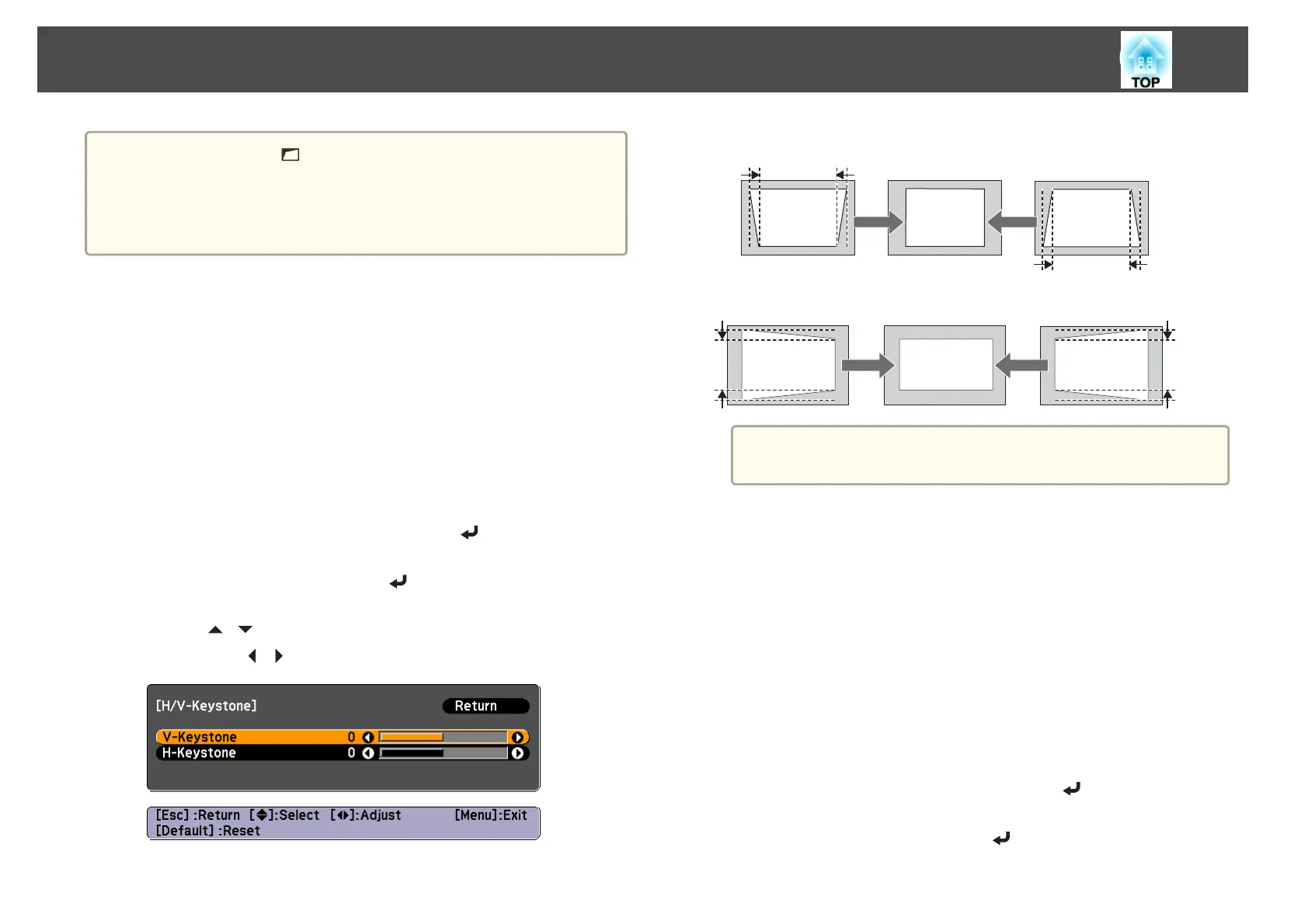

H/V-Keystone
Manually correct distortion in the horizontal and vertical directions
independently. Distortion can be corrected when the angle of vertical and
horizontal tilt of the projector is up to 30 degrees (19 degrees when using
the short throw zoom lens ELPLU01) against the screen.
a
Press the [Menu] button while projecting.
b
Select Geometric Correction from Settings.
c
Select H/V-Keystone, and then press the [ ] button.
If the message "If this setting is changed, the image may be
distorted." is displayed, press the [
] button.
d
Use the [ ][ ] buttons to select the correction method, and
then use the [
][ ] buttons to make the corrections.
V-Keystone
H-Keystone
a
When you correct keystone distortion, the projected image may
be reduced.
e
When you are done, press the [Menu] button to exit the correction
menu.
Quick Corner
This allows you to manually correct each of the four corners of the
projected image separately.
a
Press the [Menu] button while projecting.
b
Select Geometric Correction from Settings.
c
Select Quick Corner, and then press the [ ] button.
If the message "If this setting is changed, the image may be
distorted." is displayed, press the [
] button.
Adjusting Projected Images
43
