Epson EB-L1505U User Manual

B
Move the slider to adjust the focus.
C
Press the buttons to adjust the focus.
D
Move the slider to adjust image warping.
*
E
Press the buttons to adjust image warping.
*
F
Displays the Focus / Distortion operation screen.
G
Displays the Zoom operation screen.
H
Displays the Lens Shift operation screen.
I
Displays the Test Pattern operation screen.
J
Displays the Memory operation screen.
* This is not available for ELPLU02.

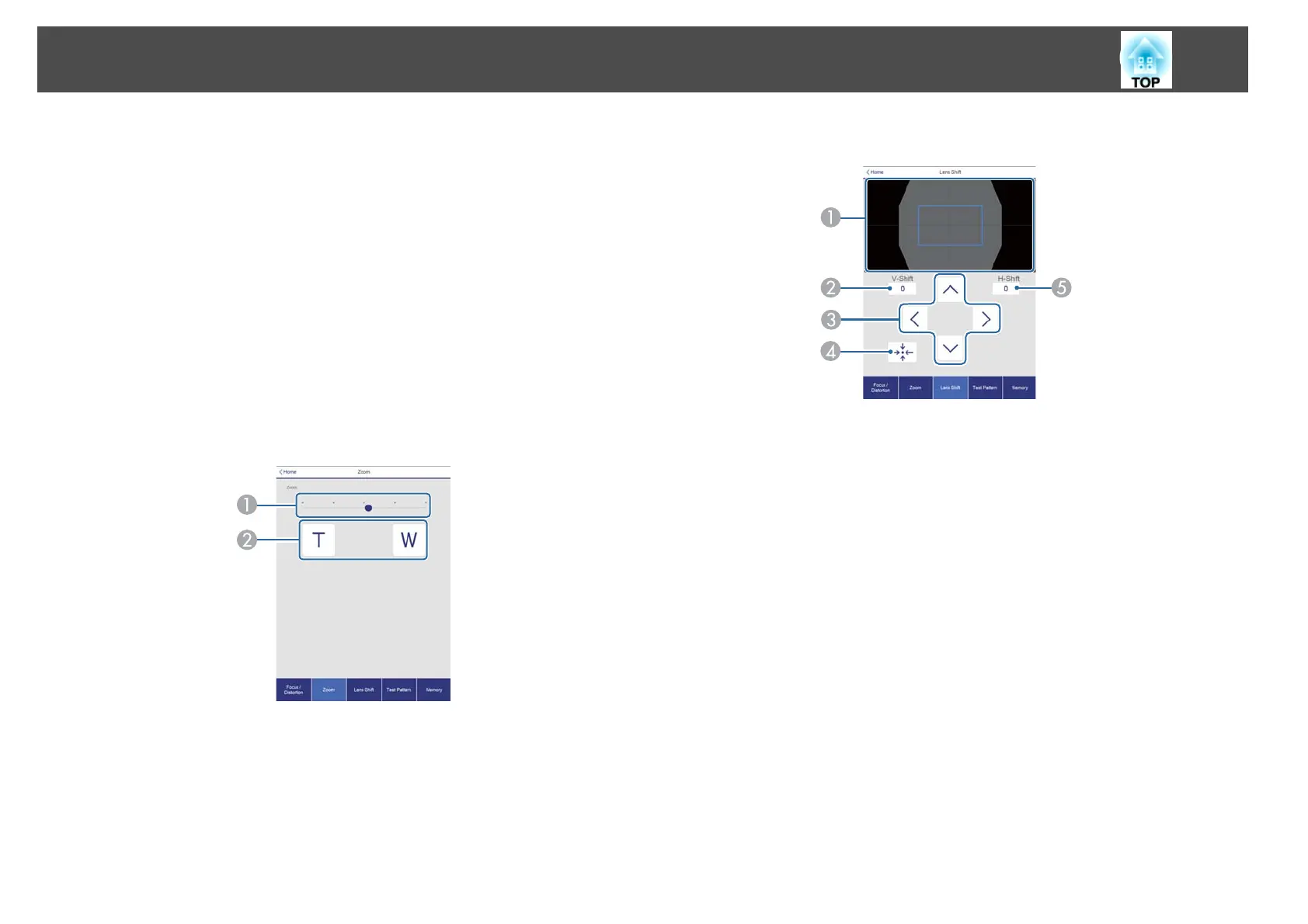

Zoom Operation Screen
This is not available for ELPLX01 and ELPLR04.
A
Move the slider to adjust the zoom.
B
Press the buttons to adjust the zoom.
Lens Shift Operation Screen
A
Displays the position of the image as a blue square. When you move the image
position, a red square is displayed at the destination.
B
Displays the vertical image position. You can directly specify the position by tap-
ping it and entering a number.
C
Moves the image position up, down, left, or right.
D
Moves the lens position to the home position if you press the OK button in the
confirmation screen.
E
Displays the horizontal image position. You can directly specify the position by
tapping it and entering a number.
Monitoring and Controlling
197

Epson EB-L1505U Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.99 - 27.77 m
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	60 - 500 \
Projection distance (tele)	3.3 - 27.8 m
Projection distance (wide)	2 - 17.2 m
Projector native resolution	WUXGA (1920x1200)
Keystone correction, vertical	-45 - 45 °
Keystone correction, horizontal	-30 - 30 °
Built-in display	Yes
Display diagonal	1.03 \
Throw ratio	1.57 - 2.56:1
Focal length range	36 - 57.35 mm
Vertical lens shift range	-60 - 60 %
Horizontal lens shift range	-18 - 18 %
Lamp power	670 W
Light source type	Lamp
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
3D	No
Video color modes	Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
Audio (L/R) in	3
Audio (L/R) out	1
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	30 dB
Placement	Desktop
Product type	Large venue projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	908 W
Power consumption (economy mode)	597 W
Cables included	AC, VGA
Pallet width	800 mm
Pallet height	150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	492 mm
Width	586 mm
Height	211 mm
Weight	23800 g
Package depth	780 mm
Package width	750 mm
Package height	325 mm
Package weight	33900 g
