Epson EB-L1505U - Eb-L1405 U;Eb-L1300 U;Eb-L1200 U;Eb-L1100 U

EB-L1405U/EB-L1300U/EB-L1200U/EB-L1100U

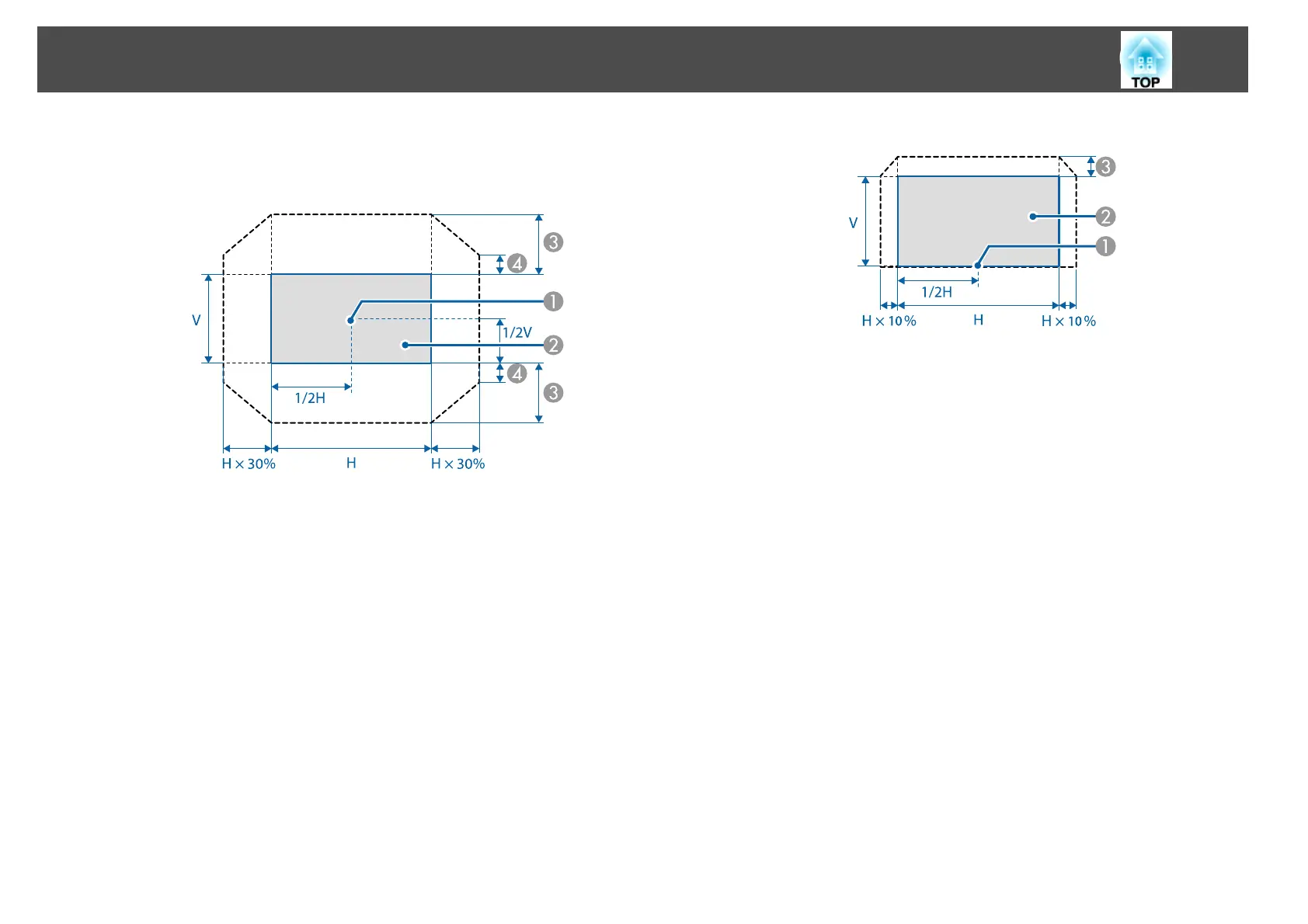

When using the ELPLU03/ELPLU04/ELPLW05/ELPLW06/ELPLM08/
ELPLM09/ELPLM10/ELPLM11/ELPLL08
A
Center of lens
B
Projected image when the lens position is moved to the home
position
C
Maximum motion range: V x 67%
*
D
When the horizontal direction is at the maximum value: V x 19%
* When performing screen matching: V x 44% (ELPLU03), V x 51%
(ELPLM09)
* When performing color calibration: V x 64% (ELPLU03)
When using the ELPLX01
A
Center of lens
B
Projected image when the lens position is moved to the home
position
C
Maximum motion range: V x 17%
*
* When the horizontal direction is at the maximum value, the image
cannot be moved upward.
Installing the Projector
34
