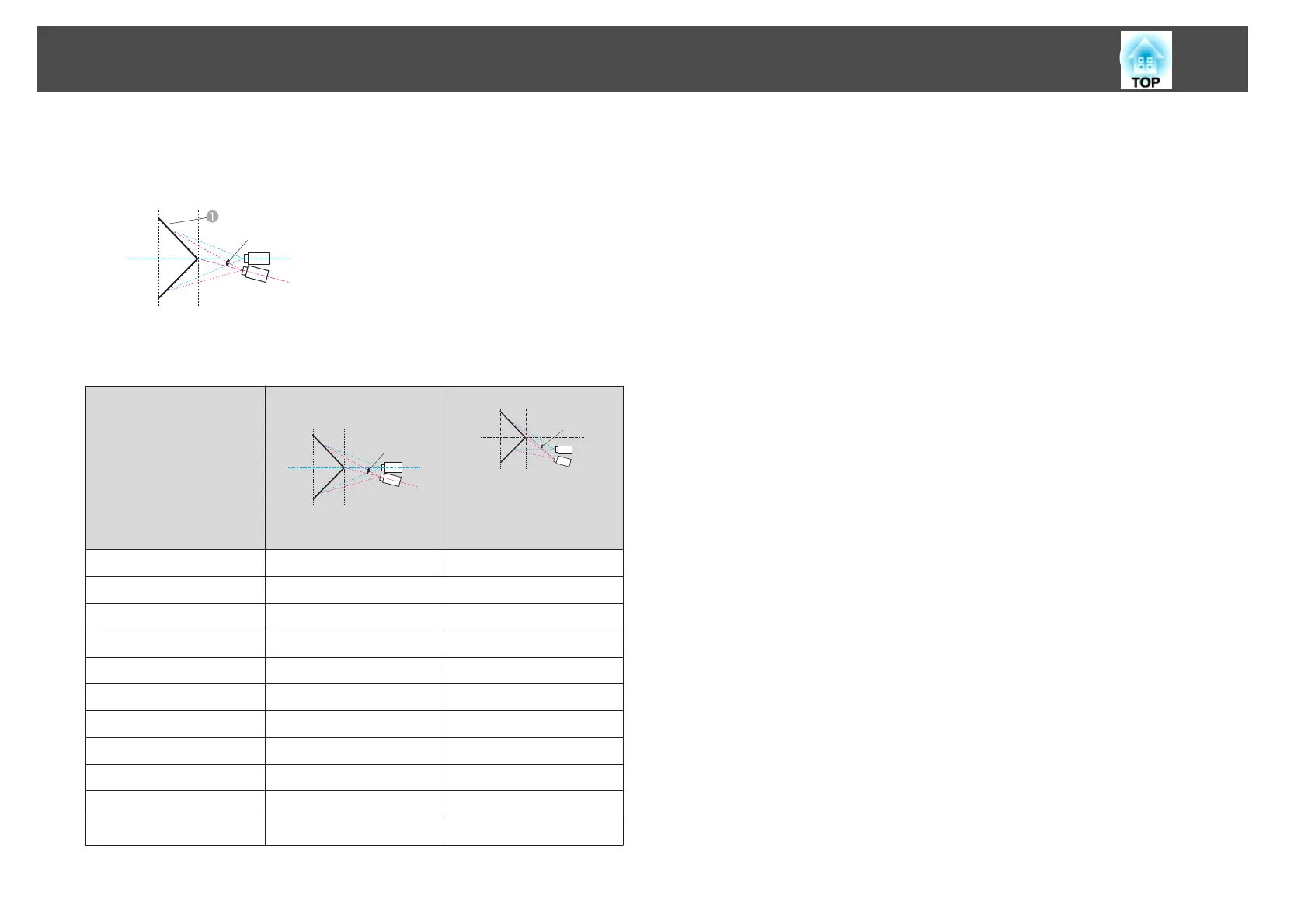

Convex vertical corner correction (correction to horizontal symmetry by
using corners as the center line)
Ș
A
Screen
α Angle of possible projector
motion
Side view
Lens type Vertical lens shift:
Home position
Ș
Side view
Vertical lens shift: Top
Ș
Side view
ELPLM08 19˚ 5˚
ELPLX01 - -
ELPLU03 9˚ *
ELPLU04/ELPLU02 14˚ *
ELPLR04 15˚ -
ELPLW05 16˚ *
ELPLW06/ELPLW04 20˚ 7˚
ELPLM09/ELPLS04 22˚ 12˚
ELPLM10/ELPLM06 22˚ 15˚
ELPLM11/ELPLM07 22˚ 17˚
ELPLL08/ELPLL07 22˚ 18˚
*Cannot be corrected accurately. Move the lens position to the home position.
Adjustment Range for Projected Images
238
