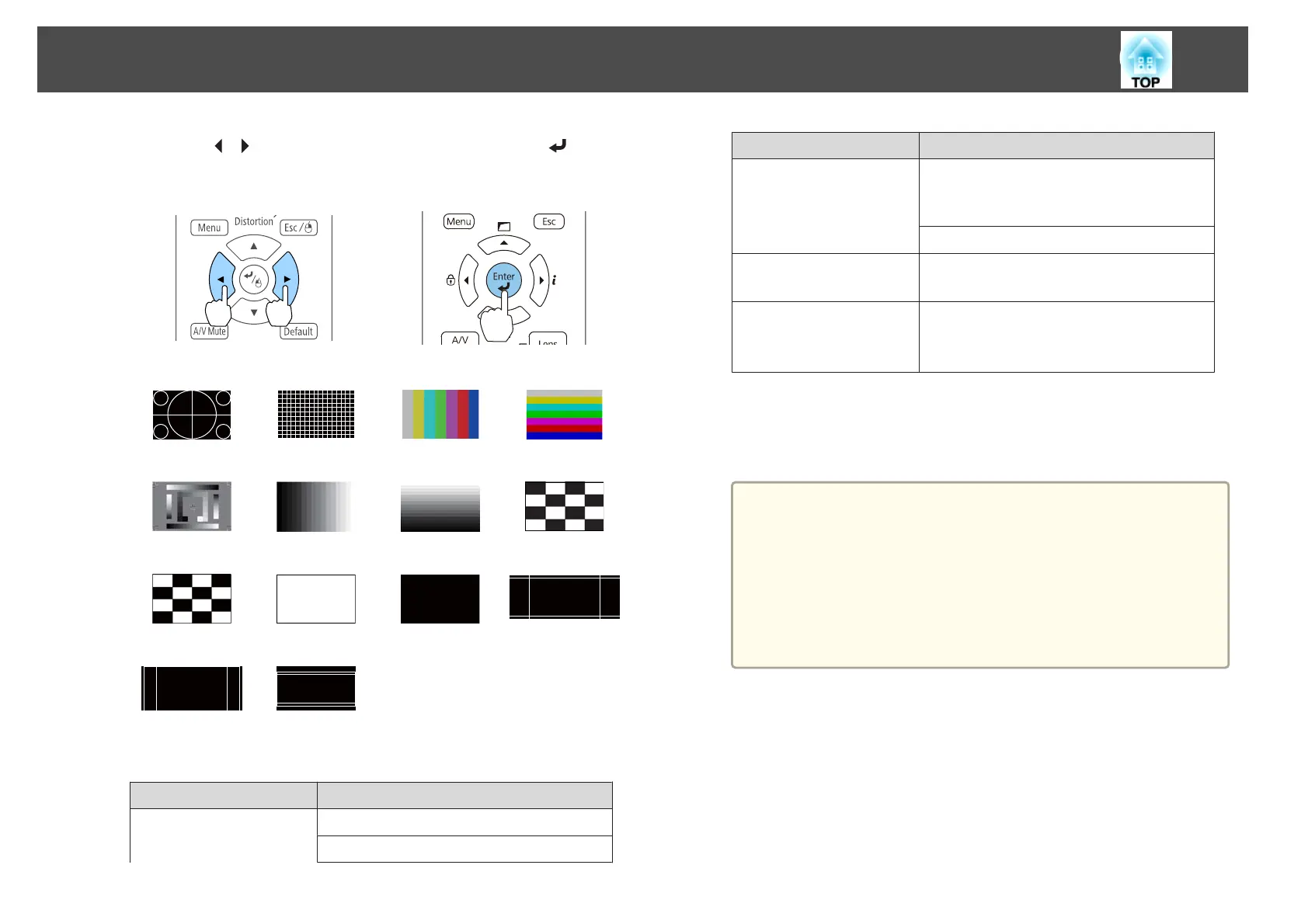

Press the [ ][ ] buttons on the remote control or the [ ] button
on the control panel to change the test pattern.
Using the remote control Using the control panel
Standard Cross-hatching Color Bars V Color Bars H
Grayscale Gray Bars V Gray Bars H Checkerboard
1
Checkerboard
2
White Black 16:10Aspect
Frame
16:9Aspect
Frame
4:3Aspect
Frame
In addition to lens operations, the following image adjustments can
be made while the test pattern is being displayed.
Top Menu Name Sub Menu/Items
Color Mode s p.74
White Balance
Top Menu Name Sub Menu/Items
Advanced
- Gamma
*1
s p.81
- RGBCMY s p.80
Reset
Set
Geometry Correction s p.62
Brightness Settings
Extended
Display
*2
Color Calibration
Multi-Projection
*3
s p.90
*1 Except for custom settings of gamma
*2 Except for Screen, Panel Alignment, and Color Uniformity
*3
Except for Black Level, Scale, Color Uniformity, and Color Adjustment
a
• To set menu items that cannot be set while the test pattern is
being displayed or to fine-tune the projected image, project an
image from the connected device.
• During image adjustment, press the [[][]] [Page] buttons on
the remote control to change the test pattern.
• You can also select a test pattern from the Configuration
menu.
s Settings - Test Pattern p.131
c
Press the [Esc] button to close the test pattern.
