Configuring Tiling Manually
You can project the same image from multiple projectors to create one large image (EB-L260F/EB-
L265F).
1. Turn on the projector.
2. Press the Menu button.

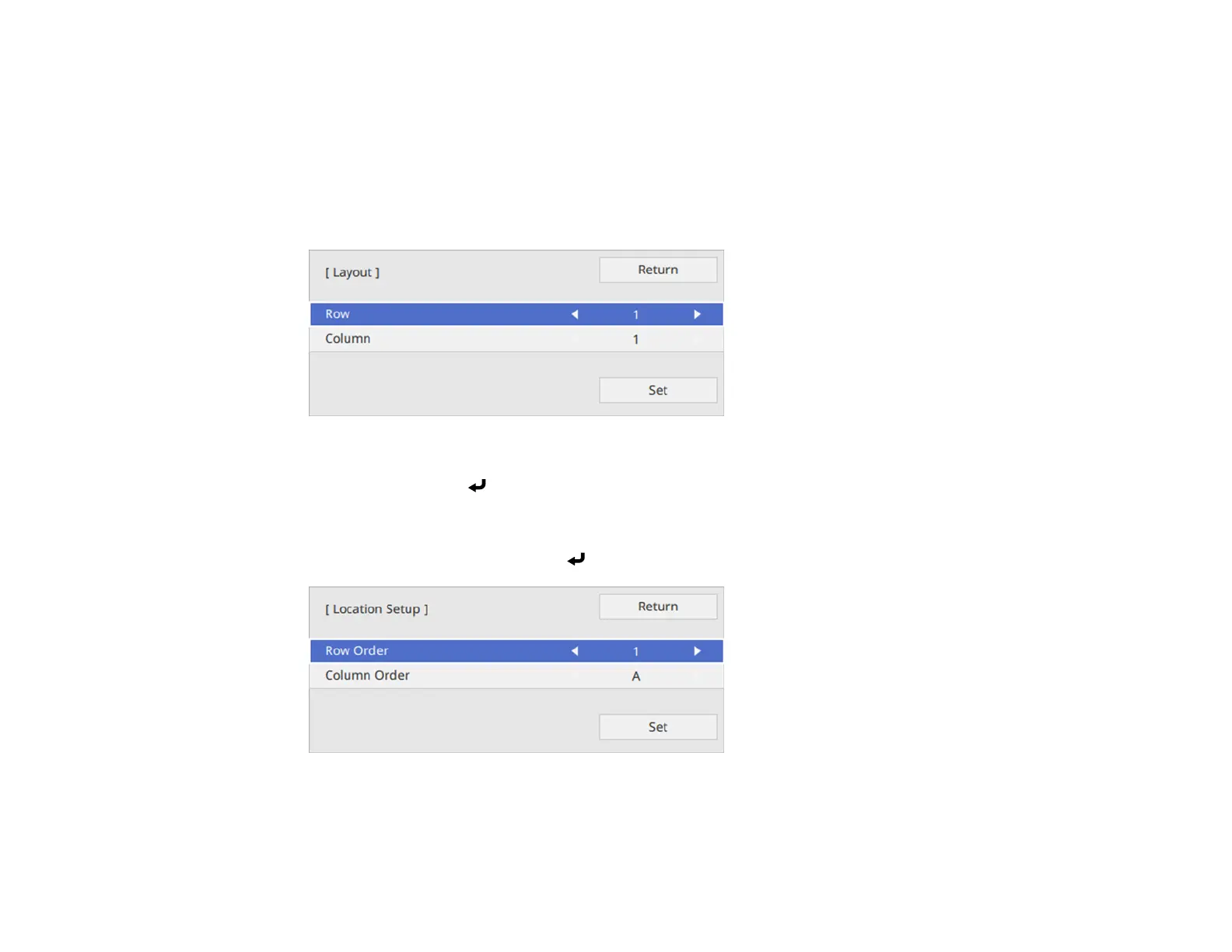

3. Select Multi-Projection > Tiling > Layout.
4. Select the number of rows and columns you are setting up as the Row and Column settings. Then
select Set and press Enter.
5. Repeat the previous steps with each projector you are setting up before continuing with the next
step.
6. Select Location Setup and press Enter.
7. Select the position of each projected image as follows:
• Row Order to layout the screens from top to bottom in sequential order, starting with 1 at the top
