Projector Parts and Functions
11
The following sections explain the projector parts and their functions.
All of the features in this guide are explained using illustrations of EB‑L615U
unless otherwise mentioned.
gg Related Links
• "Projector Parts - Front/Top" p.11
• "Projector Parts - Rear" p.12
• "Projector Parts - Base" p.13
• "Projector Parts - Interface Ports" p.13
• "Projector Parts - Control Panel" p.14
• "Projector Parts - Remote Control" p.15

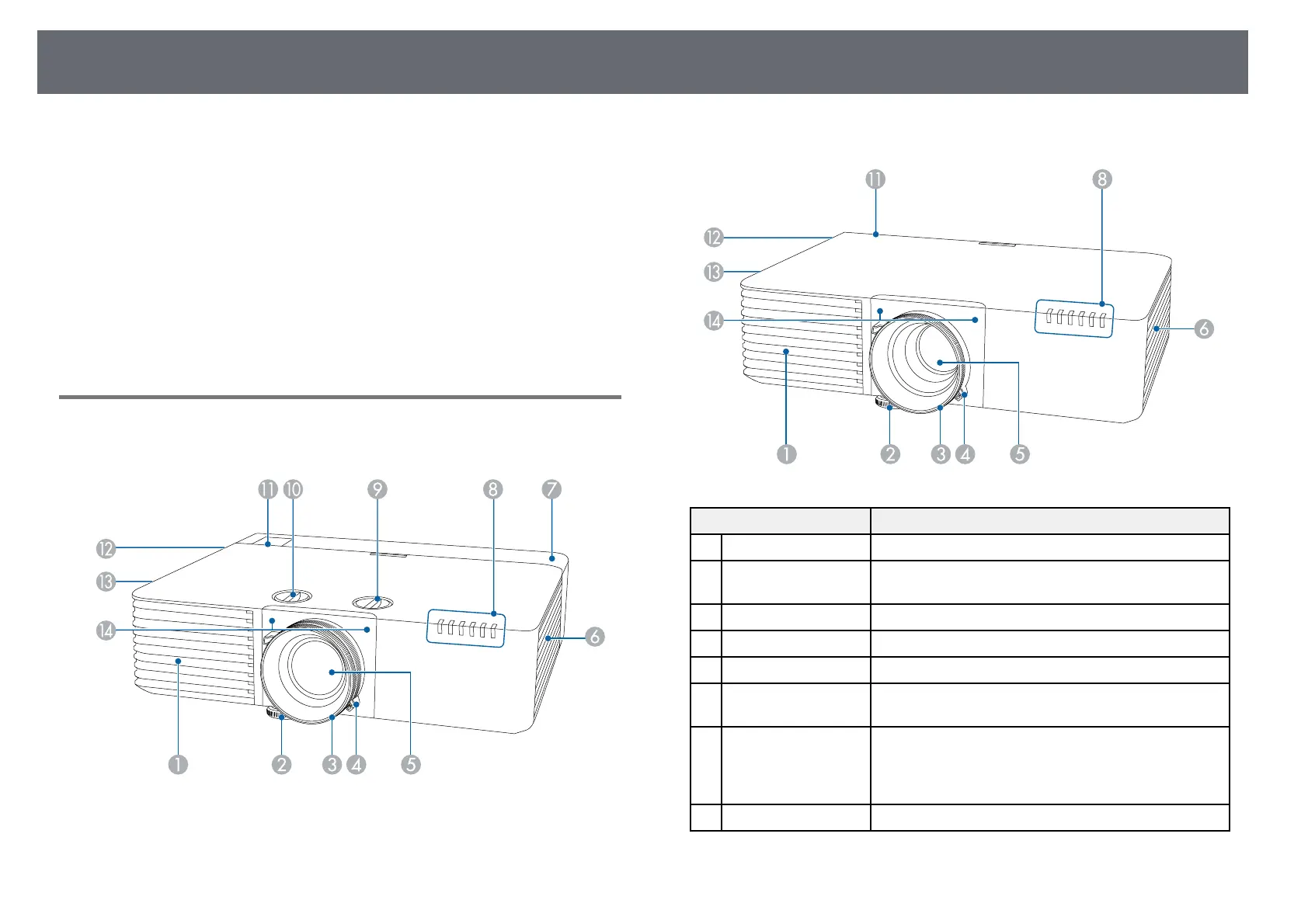

Projector Parts - Front/Top
EB‑L615U/EB‑L610U/EB‑L510U/EB‑L610W/EB‑L610
EB‑L400U/EB‑L500W/EB‑L500
Name Function
A
Air intake vent Takes in air to cool the projector internally.
B
Front adjustable foot When setup on a surface such as a desk, extend the foot
to adjust the position of the image.
C
Focus ring Adjusts the image focus.
D
Zoom ring Adjusts the image size.
E
Projection lens Images are projected from here.
F
Air intake vent (air
filter)
Takes in air to cool the projector internally.
G
Cable cover
(EB‑L615U/EB‑L610U
/EB‑L510U/EB‑L610
W/EB‑L610)
Cover for the rear interface ports section.
H
Indicators Indicates the projector's status.
