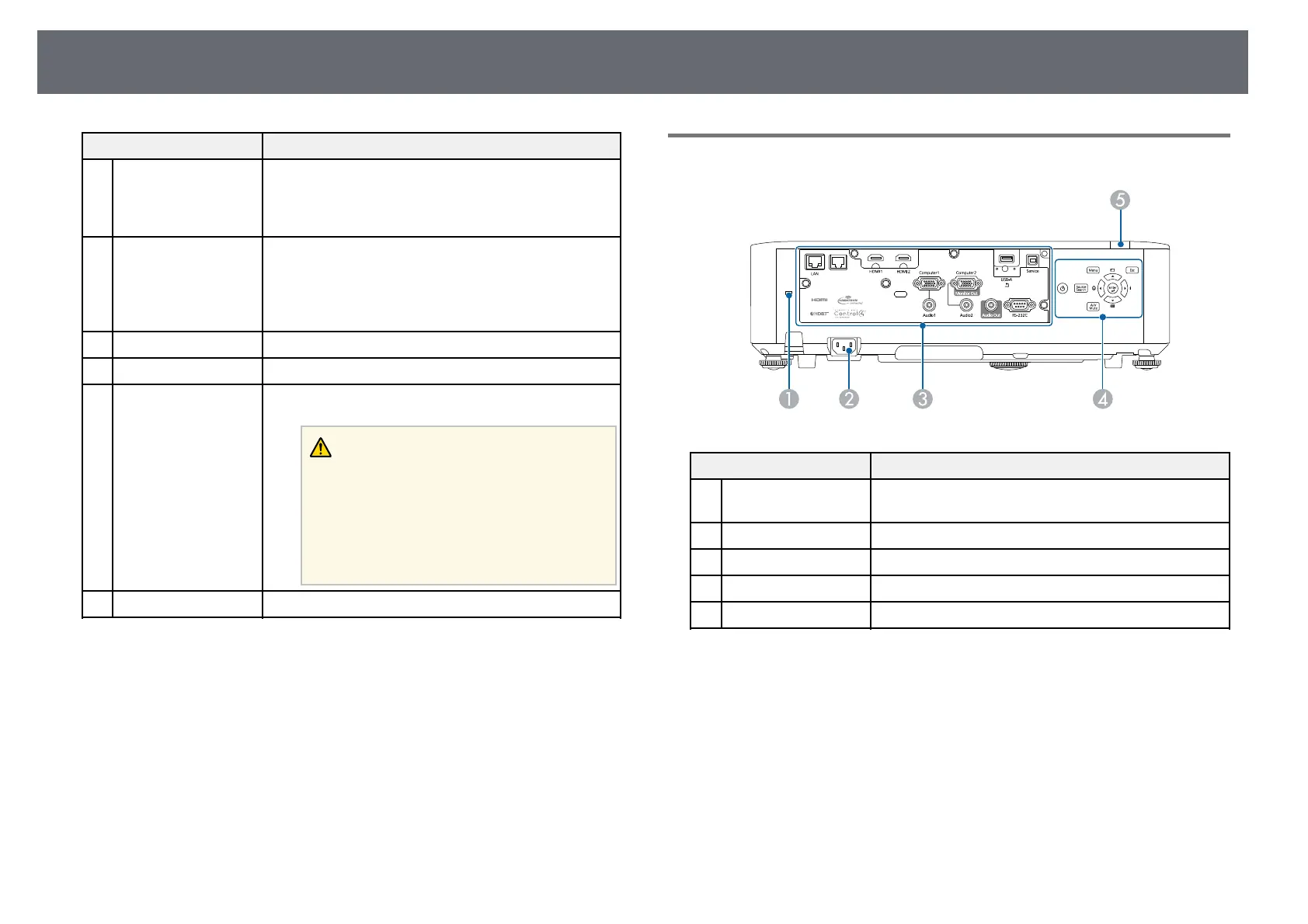

Epson EB-L615U User Manual

Projector Parts and Functions
12
Name Function
I
Vertical lens shift dial
(EB‑L615U/EB‑L610U
/EB‑L510U/EB‑L610
W/EB‑L610)
Turn the dial to move the position of the projected
image up or down.
J
Horizontal lens shift
dial
(EB‑L615U/EB‑L610U
/EB‑L510U/EB‑L610
W/EB‑L610)
Turn the dial to move the position of the projected
image left or right.
K
Remote receiver Receives signals from the remote control.
L
Speaker Outputs audio.
M
Air exhaust vent Exhaust vent for air used to cool the projector
internally.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
N
Remote receiver Receives signals from the remote control.
gg Related Links
• "Projector Indicator Status" p.189
• "Remote Control Operation" p.33
• "Resizing the Image with the Zoom Ring" p.54
• "Focusing the Image Using the Focus Ring" p.55
• "Adjusting the Image Position Using Lens Shift" p.44
Projector Parts - Rear
Name Function
A
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
B
Power inlet Connects the power cord to the projector.
C
Interface ports Connects cables for external devices.
D
Control panel Operates the projector.
E
Remote receiver Receives signals from the remote control.
gg Related Links
• "Installing a Security Cable" p.103
• "Projecting a PC Free Presentation" p.76

Epson EB-L615U Specifications

General

HDBaseT port	Yes
HDMI connector type	Full-size
Serial interface type	RS-232C
USB 2.0 ports quantity	1
Mobile High-Definition Link (MHL)	-
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.4 - 23.84 m
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	50 - 500 \
Projection distance (tele)	2.4 - 23.8 m
Projection distance (wide)	1.4 - 14.8 m
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	4200 ANSI lumens
Video color modes	Bright cinema, Cinema, Dynamic, Presentation, sRGB
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Focus	Manual
Throw ratio	1.35 - 2.20:1
Focal length range	20 - 31.8 mm
Aperture range (F-F)	1.5 - 1.7
Vertical lens shift range	-50 - 50 %
Horizontal lens shift range	-20 - 20 %
Placement	Ceiling
Product type	Standard throw projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
Auto power off	No
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	353 W
Power consumption (economy mode)	265 W
RMS rated power	10 W
Noise level	38 dB
Country of origin	China
Noise level (economic mode)	27 dB
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Pallet width	800 mm
Pallet height	2180 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	14 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	304 mm
Width	440 mm
Height	120 mm
Weight	8500 g
Package depth	564 mm
Package width	538 mm
Package height	208 mm
Package weight	11640 g
