Epson EB-PU2116B User Manual

129

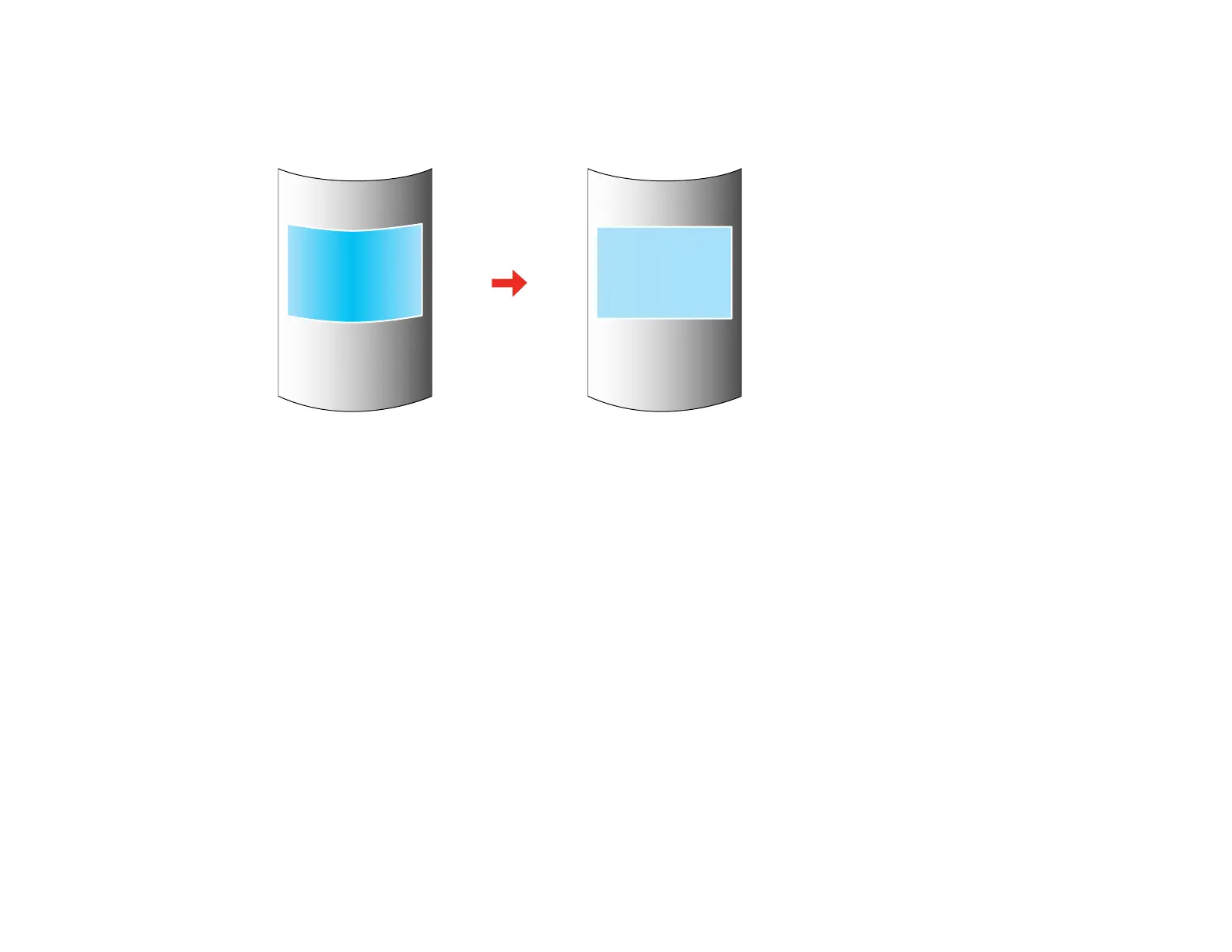

Correcting Image Shape with Curved Surface
You can use the projector's Curved Surface setting to adjust the shape of an image projected on a
curved surface.
Note: For the best results, keep the lens centered using lens shift. The image may not be evenly focused
throughout even after performing the steps here.
Note: For the best results, project from the front of the screen onto a surface with a uniform arc radius
and with the lens in the home position. The image may not be evenly focused throughout even after
performing the steps here. If you see a 4K Enhancement message, select Yes to disable the 4K
Enhancement feature.
1. Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.
Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern
button on the remote control.
2. Press the Menu button.

Epson EB-PU2116B Specifications

General

Projection System	3LCD
Resolution	WUXGA (1920 x 1200)
Contrast Ratio	2, 500, 000:1
Color Reproduction	Up to 1.07 billion colors
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Control	RS-232C, LAN, USB
Light Source	Laser
Laser Life	20, 000 hours
Aspect Ratio	16:10
LCD Panel	0.76 inch
Brightness	16000 lumens
Lens	Optional lens
Lens Shift	Vertical: ±60%, Horizontal: ±18% (varies by lens)
Input Ports	HDMI, HDBaseT, VGA
Output Terminals	3G-SDI
Throw Ratio	2.84:1
Weight	23 kg
Projection Lens	Optional
