EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 107 Revision A
 EB-FH52
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
MA Board Assy (p100)

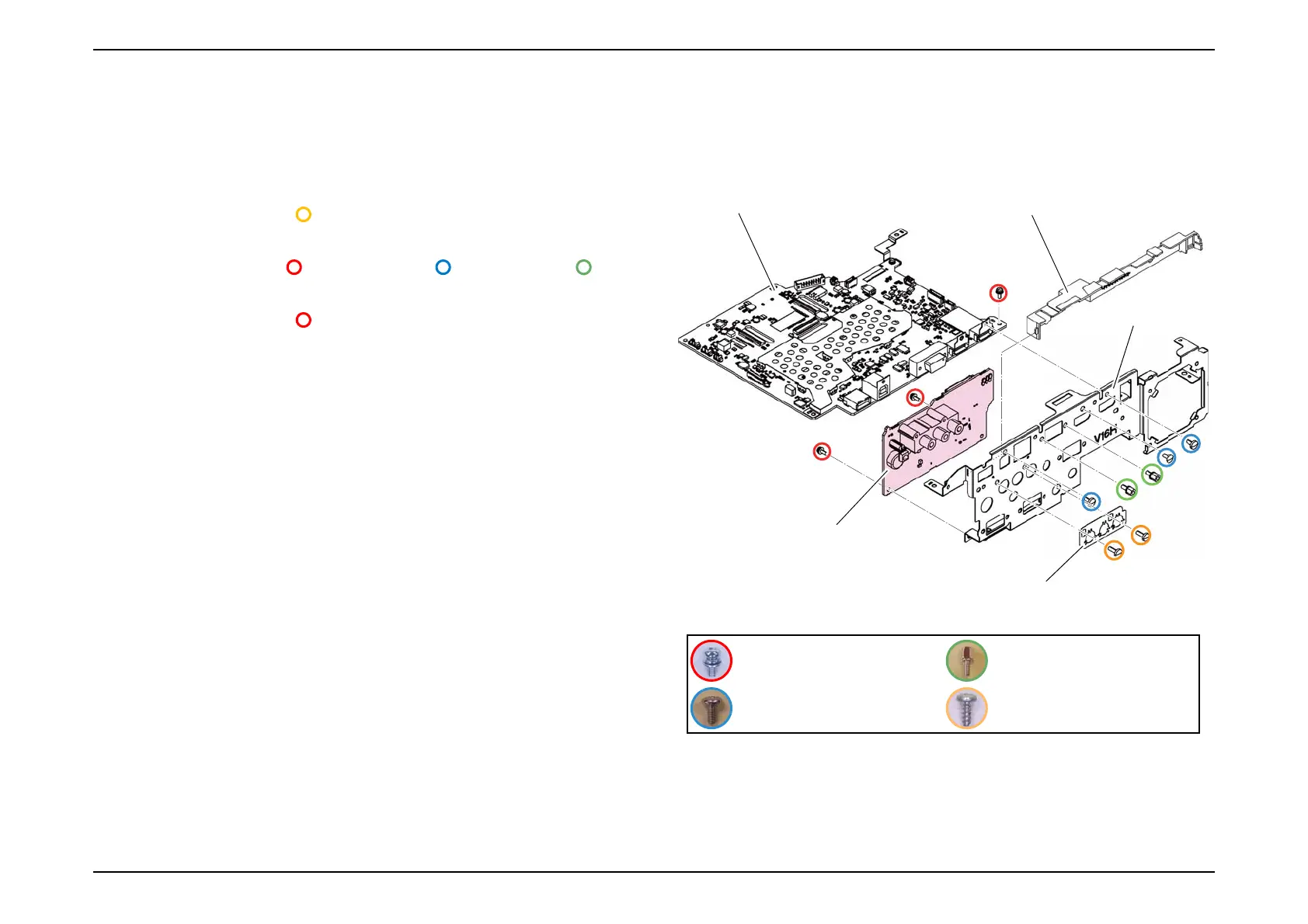

2. Remove the "IF Shade Cover".
3. Remove the two screws ( ) and remove the "Conduction Plate 3RCA"
from the "MA Frame".
4. Remove the one screw ( ), the three screws ( ), the two screws ( ), and
remove the "MA Frame" from the "MA Board (Assy)".
5. Remove the two screws ( ) and remove the "IF Board" from the "MA
Board (Assy)".
MA Frame
Conduction Plate 3RCA
MA Board (Assy)
IF Board
IF Shade Cover
C.B.SCREW,3X6,F/NI
C.P.(S-P1)SCREW,2.5X6,F/ZN-3C 1/4-40X1/4,H.H.,F/NI,O SCREW
C.B.P-TITE SCREW,3X8,F/ZN-3C
