Epson EB-X51 - IR Board

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 138 Revision A
3.4.2 IR Board
PART NAME
 IR Board
(EB-FH52/972/982W/992F)
DISASSEMBLY PROCEDURE

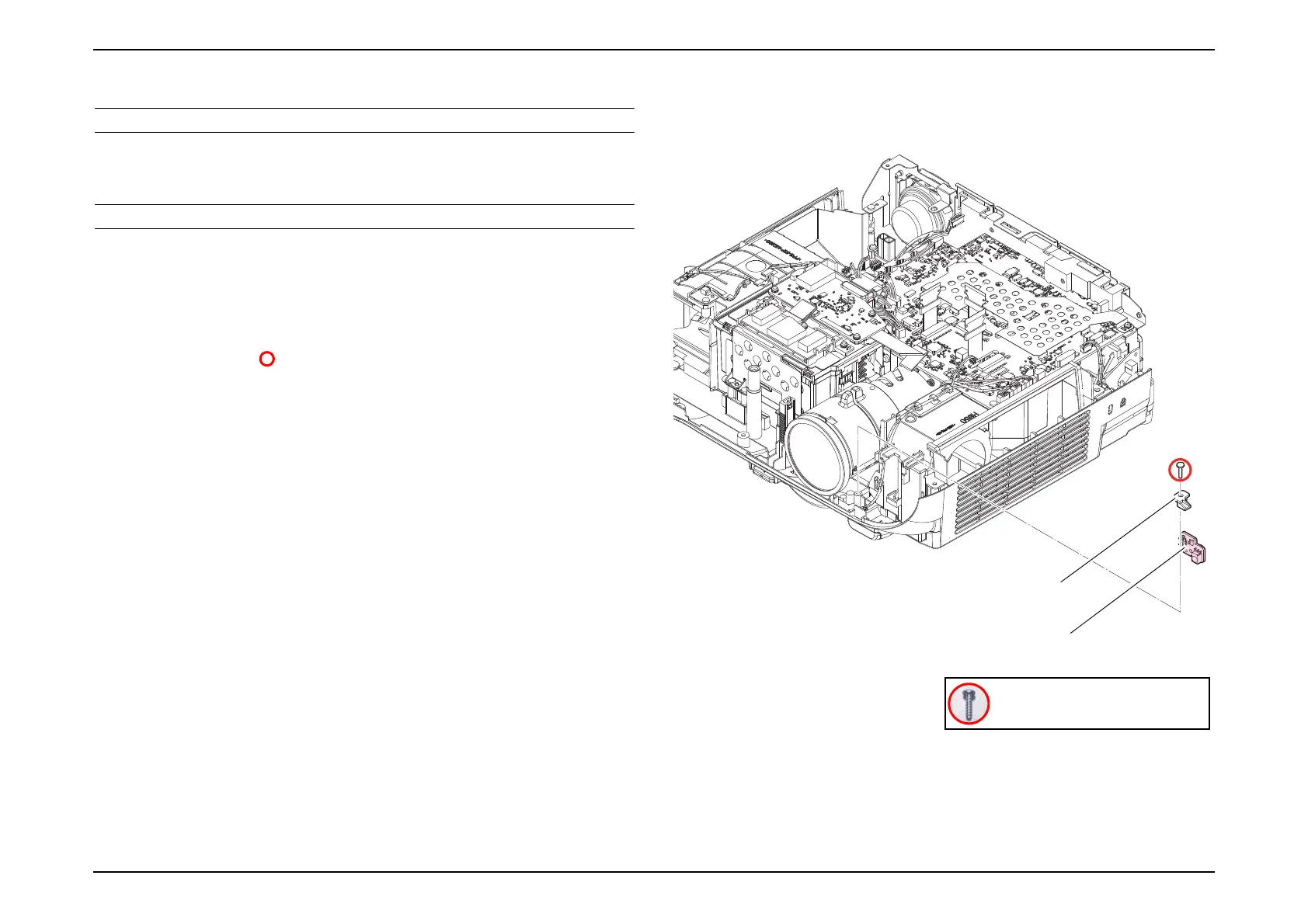

1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Upper Case (Assy) (p80)
2. Remove the connector of the cable from the "IR Board".
3. Remove the screw ( ) and remove the "PS Holder" and the "IR Board".
PS Holder
IR Board
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
