Epson EB-X51 Service Manual

EB-E01 series Troubleshooting INTERNAL USE ONLY
SEIKO EPSON 53 Revision A

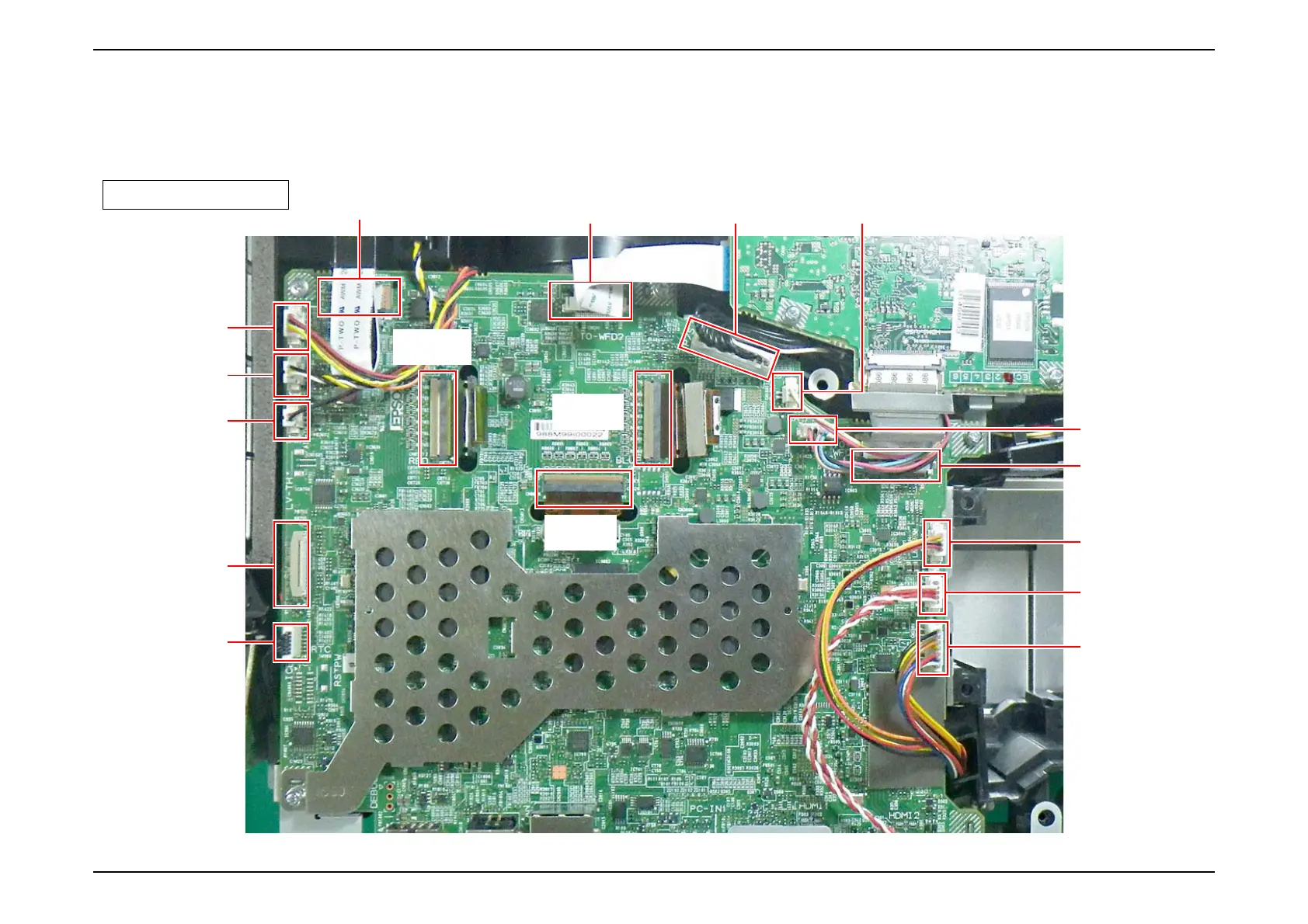

2.5.5 Cable connection on the MA Board and error symptoms
This section describes the projector’s status when disconnection occurs somewhere between the parts/units and the MA Board. If any problem has occurred, refer to
the following table and check the doubted connectors are securely connected. If there is a disconnection or a loose connection, connect it correctly.
CN1405
RTC Board
CN501
WFD Board 2
CN3000
PS Ballast Assy
CN8900
B L/V
CN8800
G L/V
CN8700
R L/V
CN1603
EX Fan
CN1604
Lamp Fan
CN701 (700/702)
Speaker
CN2200
Auto Iris Assy
CN1400
SW Board
CN1600
AIR-TH
CN1403
F-IR
CN1602
LV-FAN
CN500
WFD Board 1
CN1601
LMP-TH
Circuit Board Image
CN1800
W-LAN

Epson EB-X51 Specifications

General

Matrix size	0.55 \
Number of colors	1.07 billion colors
Native aspect ratio	4:3
Projection distance	1.8 - 2.17 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2500 ANSI lumens
RMS rated power	2 W
Number of built-in speakers	1
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Lamp type	UHE
Lamp power	210 W
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Built-in display	No
Focus	Manual
Offset	8 %
Throw ratio	1.48 - 1.77:1
Focal length range	16.9 - 20.28 mm
Aperture range (F-F)	1.49 - 1.79
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB 2.0 ports quantity	2
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
Cables included	AC, VGA
Bundled software	Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Management, Epson Projektor Professional Tool
USB display function	2 in 1: Image / Mouse
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	126 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2500 g
Package depth	380 mm
Package width	335 mm
Package height	150 mm
Package weight	4035 g
