Epson EB-X51 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 154 Revision A
3.6.3.2 Check in advance
This check inspects the Optical Engine and the MA Board to specify the
current trouble is occurring either in the Optical Engine or in the MA Board.

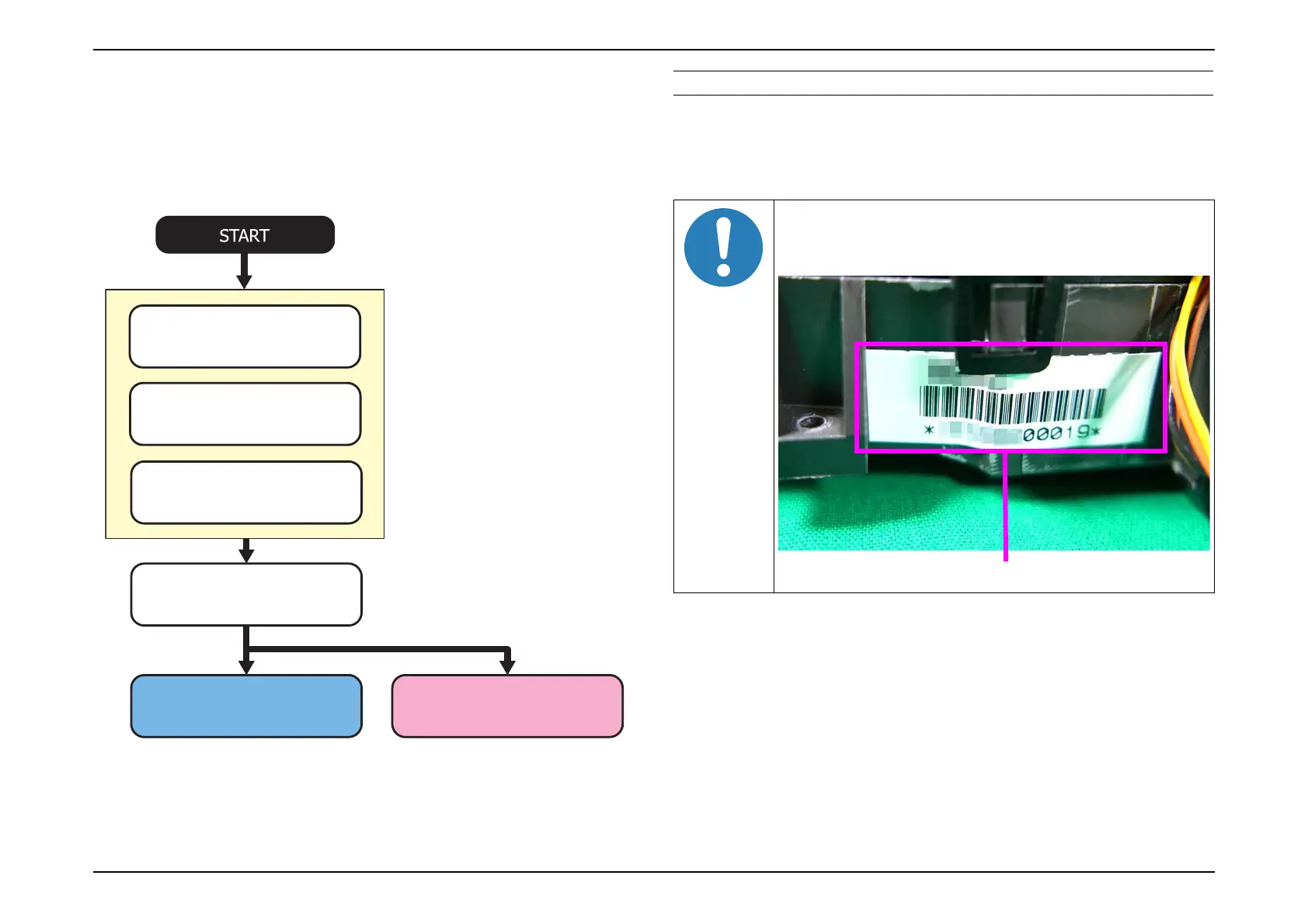

Flow for the check in advance
PROCEDURE FOR CHECK IN ADVANCE
1. Checking the Engine’s S/N
Write down the serial number (11digits) on the label attached on the
Optical Engine.
(Continued on the next page)
Check the part codes of the Optical
Engine and MA board, and confirm
the model group using the model
group list of the Tech Exchange.
Locate the broken part
Checking the Engine’s S/N
(P.154)
Checking the MA Board
(P.155)
Checking the model group list
(P.155)
Locating the trouble (Engine/
MA Board) (P.155)
Replacing the Optical Engine
(P.156)
Replacing the MA Board
(P.158)
Take care not to mistake the numbers such as "6" for "5"
because of the font used for the serial number of the
Optical Engine. Some numbers are easily mistaken.
Serial number of the Optical Engine

Epson EB-X51 Specifications

General

Matrix size	0.55 \
Number of colors	1.07 billion colors
Native aspect ratio	4:3
Projection distance	1.8 - 2.17 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2500 ANSI lumens
RMS rated power	2 W
Number of built-in speakers	1
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Lamp type	UHE
Lamp power	210 W
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Built-in display	No
Focus	Manual
Offset	8 %
Throw ratio	1.48 - 1.77:1
Focal length range	16.9 - 20.28 mm
Aperture range (F-F)	1.49 - 1.79
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB 2.0 ports quantity	2
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
Cables included	AC, VGA
Bundled software	Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Management, Epson Projektor Professional Tool
USB display function	2 in 1: Image / Mouse
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	126 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2500 g
Package depth	380 mm
Package width	335 mm
Package height	150 mm
Package weight	4035 g
