Epson EB-X51 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 89 Revision A

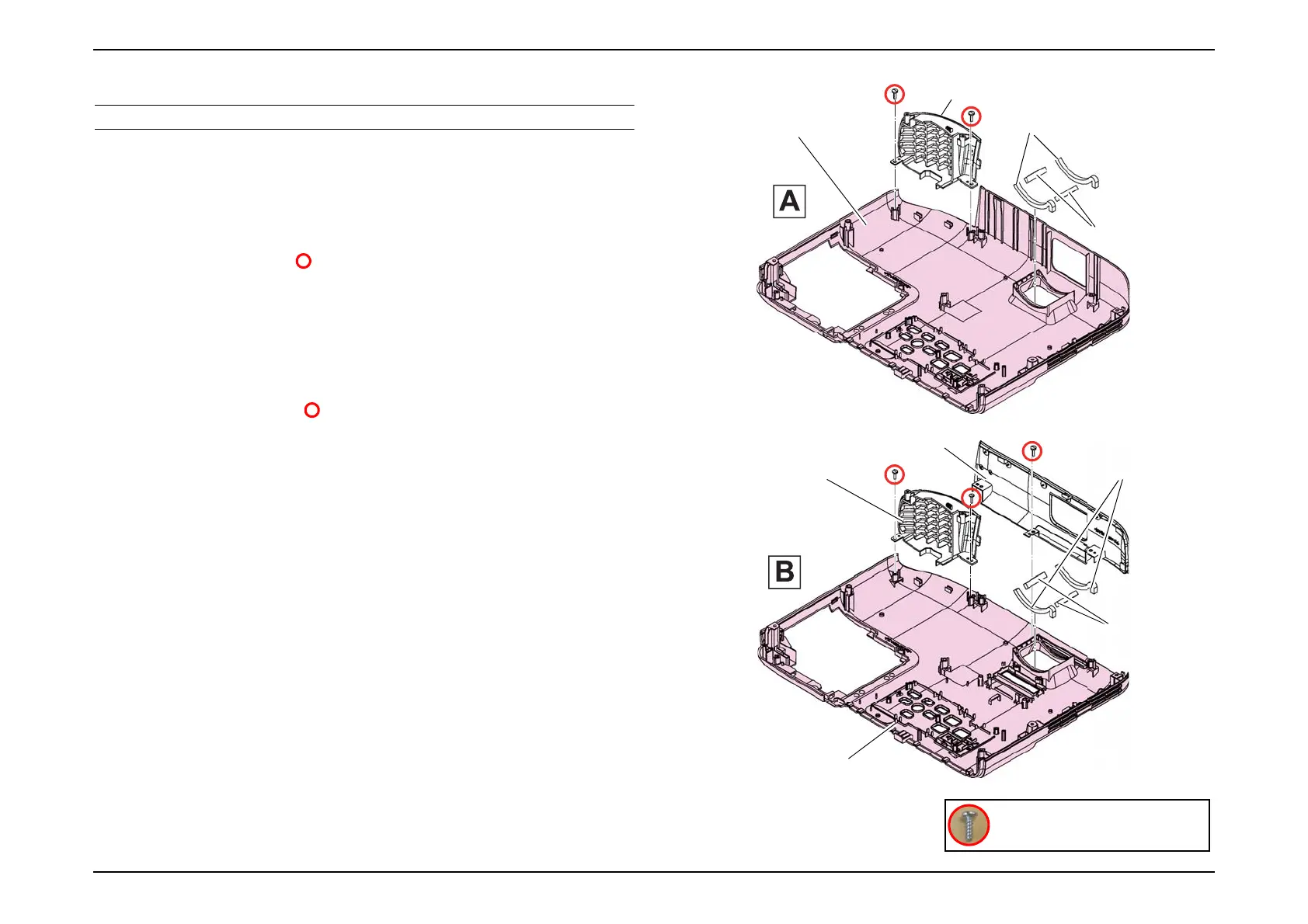

3.3.6.4 Upper Case
DISASSEMBLY PROCEDURE
See Flowchart (p70) and remove all parts up to the component below from the
projector.
Shutter (p87)
 A: EB-E01/X06/W06/E10
1. Remove the two screws ( ) and remove the "EX Case".
2. Remove the following parts from the "Upper Case".
 Upper Cushion A x2 pcs
 Upper Cushion B x2 pcs
 B: EB-X51/W51
1. Remove the three screws ( ) and remove the "Front Case" and the "EX
Case".
2. Remove the following parts from the "Upper Case".
 Upper Cushion A x2 pcs
 Upper Cushion B x2 pcs
EX Case
Upper Case
Upper Cushion A
Upper Cushion B
Front Case
Upper Case
EX Case
Upper Cushion A
Upper Cushion B
C.B.P-TITE SCREW,2.5X8,F/ZN-3C

Epson EB-X51 Specifications

General

Matrix size	0.55 \
Number of colors	1.07 billion colors
Native aspect ratio	4:3
Projection distance	1.8 - 2.17 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2500 ANSI lumens
RMS rated power	2 W
Number of built-in speakers	1
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Lamp type	UHE
Lamp power	210 W
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Built-in display	No
Focus	Manual
Offset	8 %
Throw ratio	1.48 - 1.77:1
Focal length range	16.9 - 20.28 mm
Aperture range (F-F)	1.49 - 1.79
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB 2.0 ports quantity	2
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
Cables included	AC, VGA
Bundled software	Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Management, Epson Projektor Professional Tool
USB display function	2 in 1: Image / Mouse
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	126 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2500 g
Package depth	380 mm
Package width	335 mm
Package height	150 mm
Package weight	4035 g
