1. Remove the five screws ( ) and remove the "EX Case" and the "Upper
Case Inner".
2. Remove the following parts from the "Upper Case".
 Upper Cushion A x2 pcs
 Upper Cushion B x2 pcs
 Sheet Upper A x2 pcs
 Sheet Upper H854
 Sheet Lid Lamp

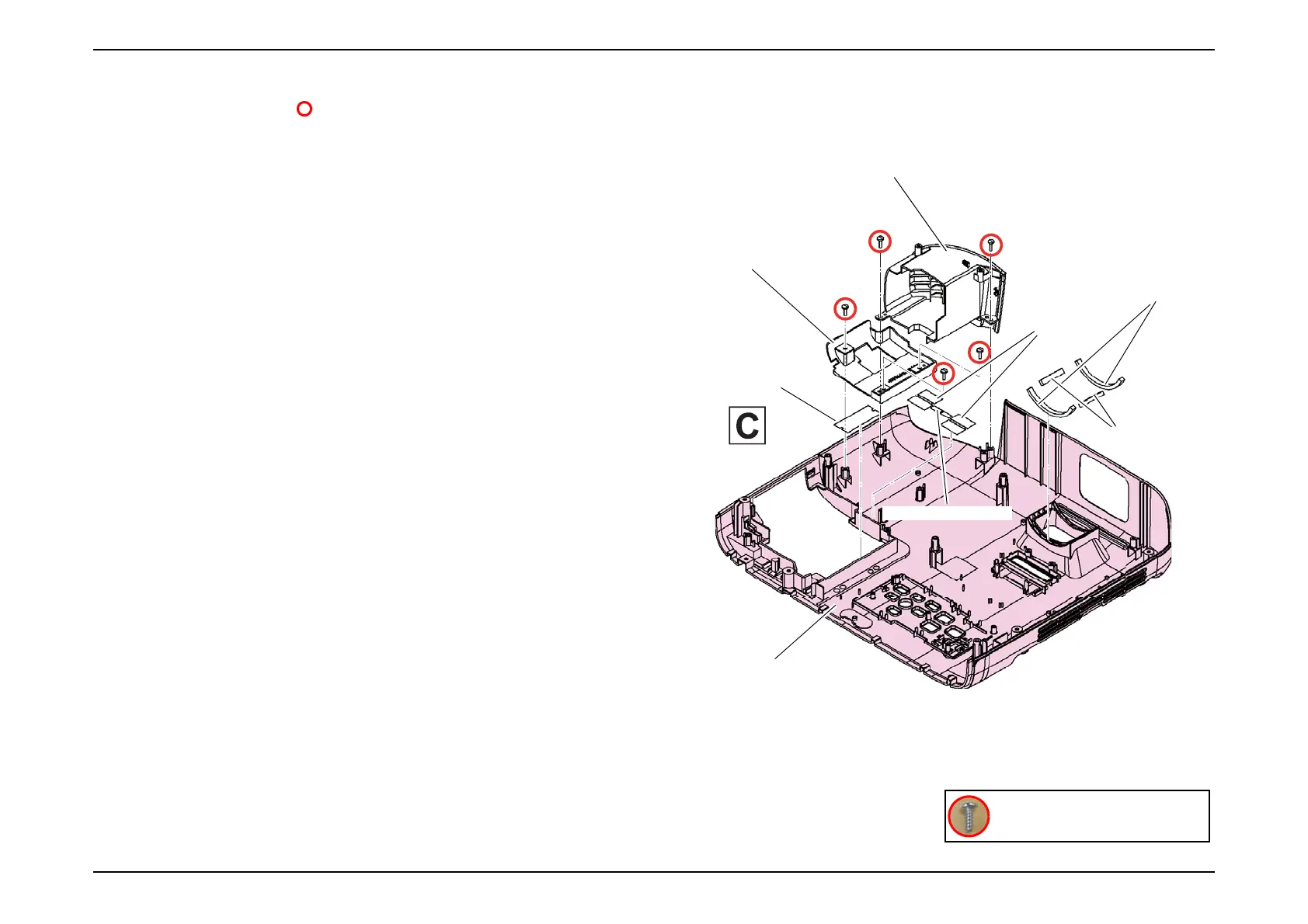

EX Case
Upper Case
Upper Case Inner
Upper Cushion A
Upper Cushion B
Sheet Lid Lamp
Sheet Upper A
Sheet Upper H854
C.B.P-TITE SCREW,2.5X8,F/ZN-3C
