EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 99 Revision A
Lithium Battery fitting procedure

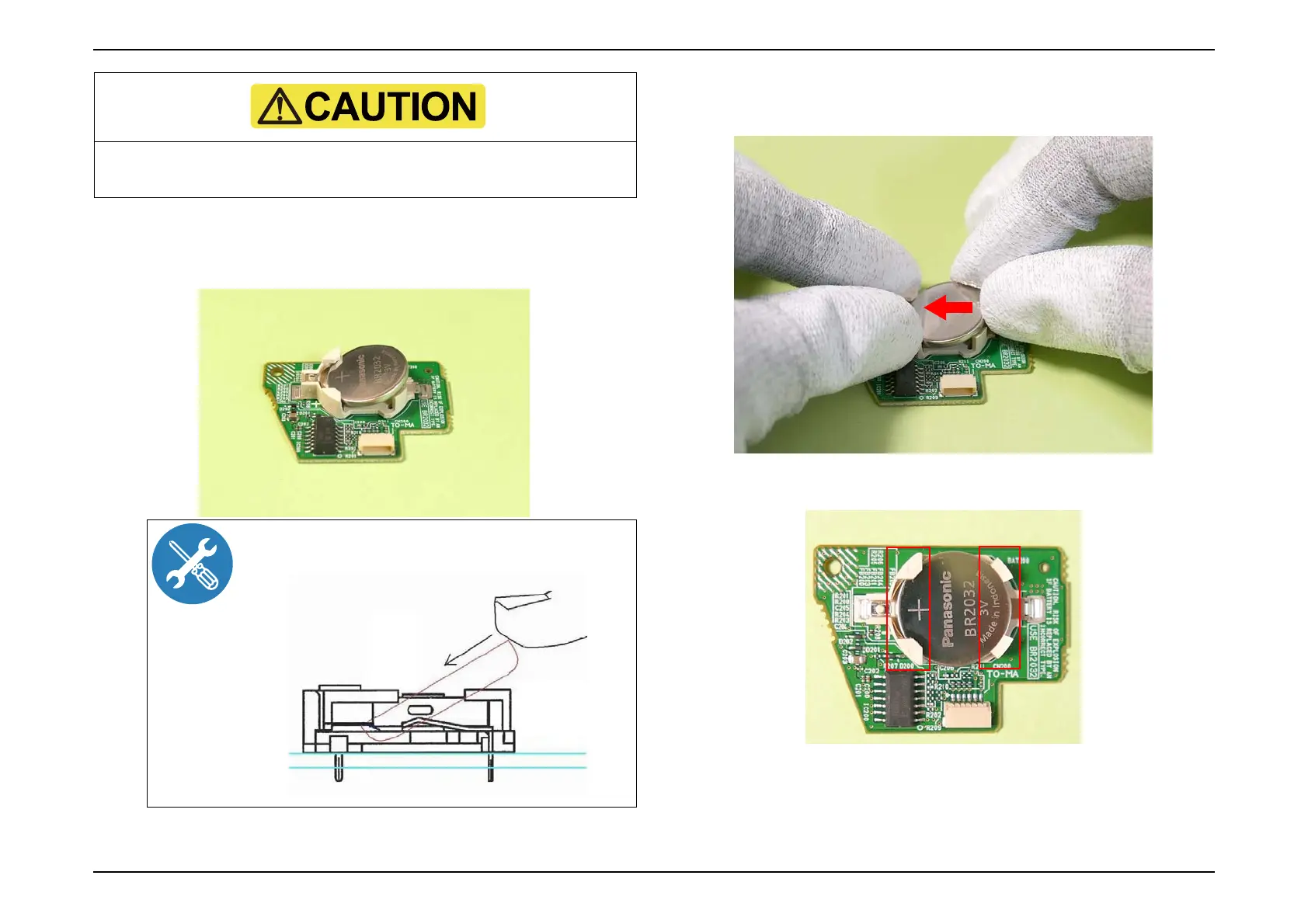

1. Place the circuit board in advance on an insulated stand that is not
arched.
2. Fix the circuit board with both hands in a flat position, and insert the
Lithium Battery in the direction of the arrow by maintaining the
correct angle of insertion.
3. Check that the Lithium Battery is secured by the locking tabs as shown
in the following photo.
Used Lithium Battery should be treated or disposed of in the prescribed
manner.
Ensure that the Lithium Battery is inserted by
maintaining the correct angle as shown below.
