Epson EH-LS500B User Manual

Basic Operations
29

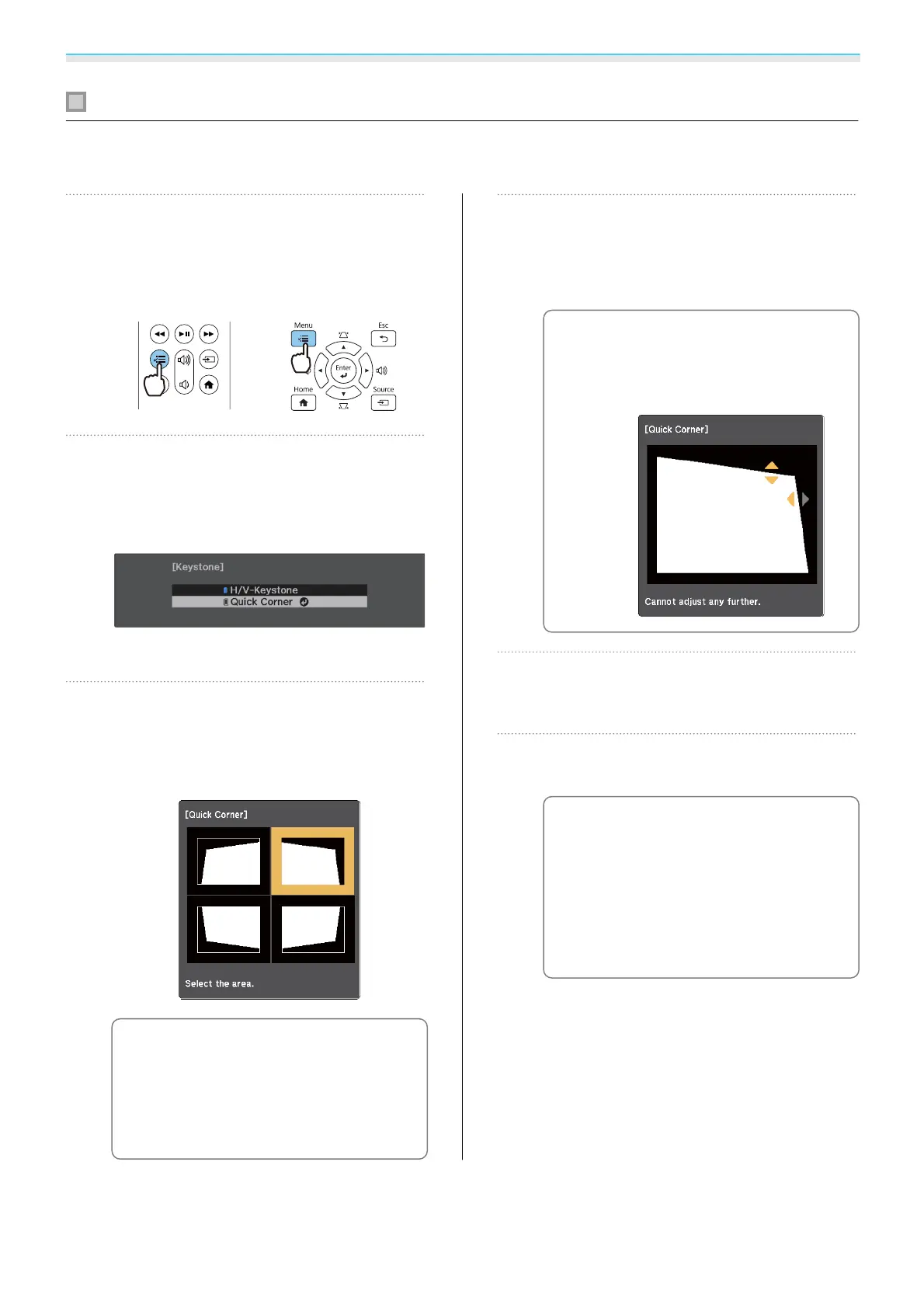

Correcting with Quick Corner
You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly
rectangular.
a
Press the [Menu] button to display
menus in the order Settings -
Keystone.
Remote control Control panel
b
Use the up and down buttons to select
Quick Corner, and then press the
[Enter] button. Press the [Enter]
button again if necessary.
The area selection screen is displayed.
c
Use the up/down/left/right buttons to
select the corner of the image you
want to adjust. Then press the [Enter]
button.
c
To reset the Quick Corner
corrections, hold down the
[Esc] button for about two
seconds while the area selection
screen is displayed, and then
select Yes.
d
Press the up/down/left/right buttons
to adjust the shape of the image as
necessary. Press the [Enter] button to
return to the area selection screen.
c
If you see this screen, you cannot
adjust the shape any further in
the direction indicated by the
gray triangle.
e
Repeat steps 3 and 4 as needed to
adjust any remaining corners.
f
When you are finished, press the
[Esc] button.
c
After executing Quick Corner,
the Keystone setting is now set
to Quick Corner in the
projector's Settings menu.
When you press the up/down
buttons on the control panel,
the area selection screen is
displayed.

Epson EH-LS500B Specifications

General

Matrix size	0.62 \
Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	0.4 - 0.82 m
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	65 - 130 \
Projector native resolution	-
Keystone correction, horizontal	-3 - 3 °
Projector brightness (economic mode)	1200 ANSI lumens
Cables included	AC
Smart TV	No
Ethernet LAN (RJ-45) ports	1
Audio (L/R) in	0
HDMI connector type	Full-size
HDMI ports quantity	3
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	366 W
Power consumption (economy mode)	230 W
Video color modes	Bright cinema, Cinema, Dynamic, Game
Supported 3D formats	Side by side, Top and bottom
Throw ratio	0.27 - 0.37:1
Fixed focal length	3.9 mm
Focal length range	- mm
Aperture range (F-F)	1.5 - 1.5
Placement	Desktop
Product type	Ultra short throw projector
Product color	Black
Cable lock slot type	Kensington
Light source type	Laser
Service life of light source	20000 h
RMS rated power	10 W
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	23 dB
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	375 mm
Width	458 mm
Height	228 mm
Weight	9300 g
Package depth	590 mm
Package width	350 mm
Package height	532 mm
Package weight	12.954 g
