Epson EH-TW9100W User Manual

Preparing
19
Connecting to a Device
Attention
•
Turn off the equipment you want to connect before connecting. If the equipment is on when you connect,
it could cause a malfunction.
•
Check the shape of the cable's connector and the shape of the port, and then connect. If you force a connector
of a different shape into the port, it could cause damage and a malfunction to occur.
EH-TW9100W/EH-TW8100W comes with an interface cover allowing you to clearly see the connector section
on the rear. Remove the interface cover before connecting any cables.
s p.21

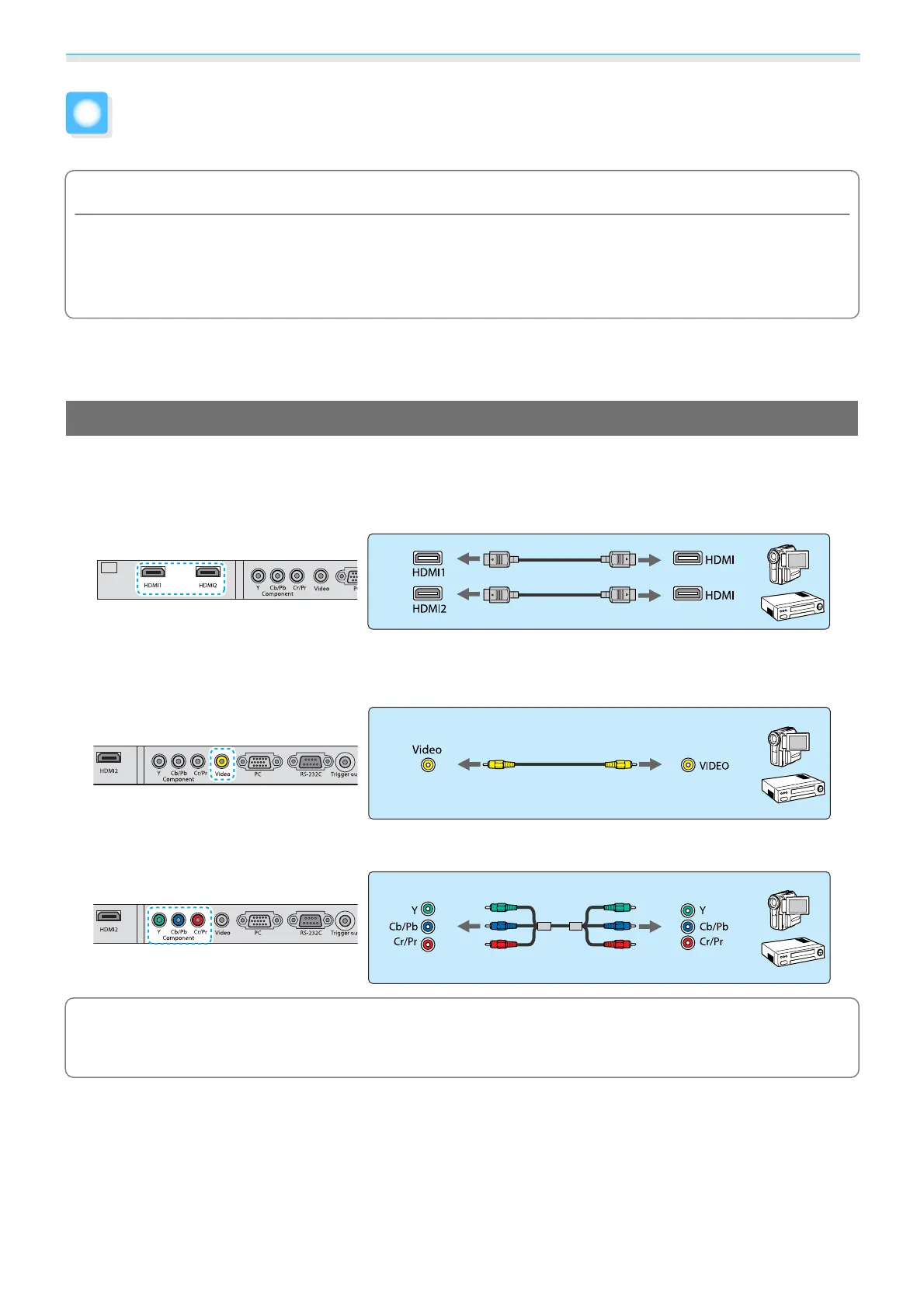

Connecting to Video Equipment
To project images from DVD players or VHS video and so on, connect to the projector using one of the
following methods.
When using an HDMI cable
Fix the HDMI cable in place using the HDMI cable clamp. s p.21
When using a video cable
When using a component video cable
c
•
The cable differs depending on the output signal from the connected video equipment.
•
Some types of video equipment are capable of outputting different types of signals. Check the user's
guide supplied with the video equipment to confirm which signals can be output.

Epson EH-TW9100W Specifications

General

RS-232 ports	1
Matrix size	0.74 \
White light output	2400 ANSI lumens
Projection distance	- m
Projection technology	3LCD
Screen size compatibility	30 - 300 \
Projection distance (tele)	1.9 - 19.2 m
Projection distance (wide)	0.9 - 9 m
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-30 - 30 °
Full HD	Yes
Color modes (2D)	Dynamic, Cinema
Supported 3D formats	Side by side, Top and bottom, Frame packing
Analog signal format system	-
Focus	Manual
Focal length range	23 - 47 mm
Aperture range (F-F)	2 - 3.17
Vertical lens shift range	-96.3 - 96.3 %
Horizontal lens shift range	-47.1 - 47.1 %
Lamp type	E-TORL
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	22 dB
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.39 W
Power consumption (typical)	340 W
Power consumption (economy mode)	287 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	2244 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	12 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	395 mm
Width	466 mm
Height	140 mm
Weight	8400 g
Package depth	573 mm
Package width	531 mm
Package height	350 mm
Package weight	13050 g
