Useful Functions

Remote control operating range

The following shows the operating range between the remote control and the WirelessHD Transmitter.

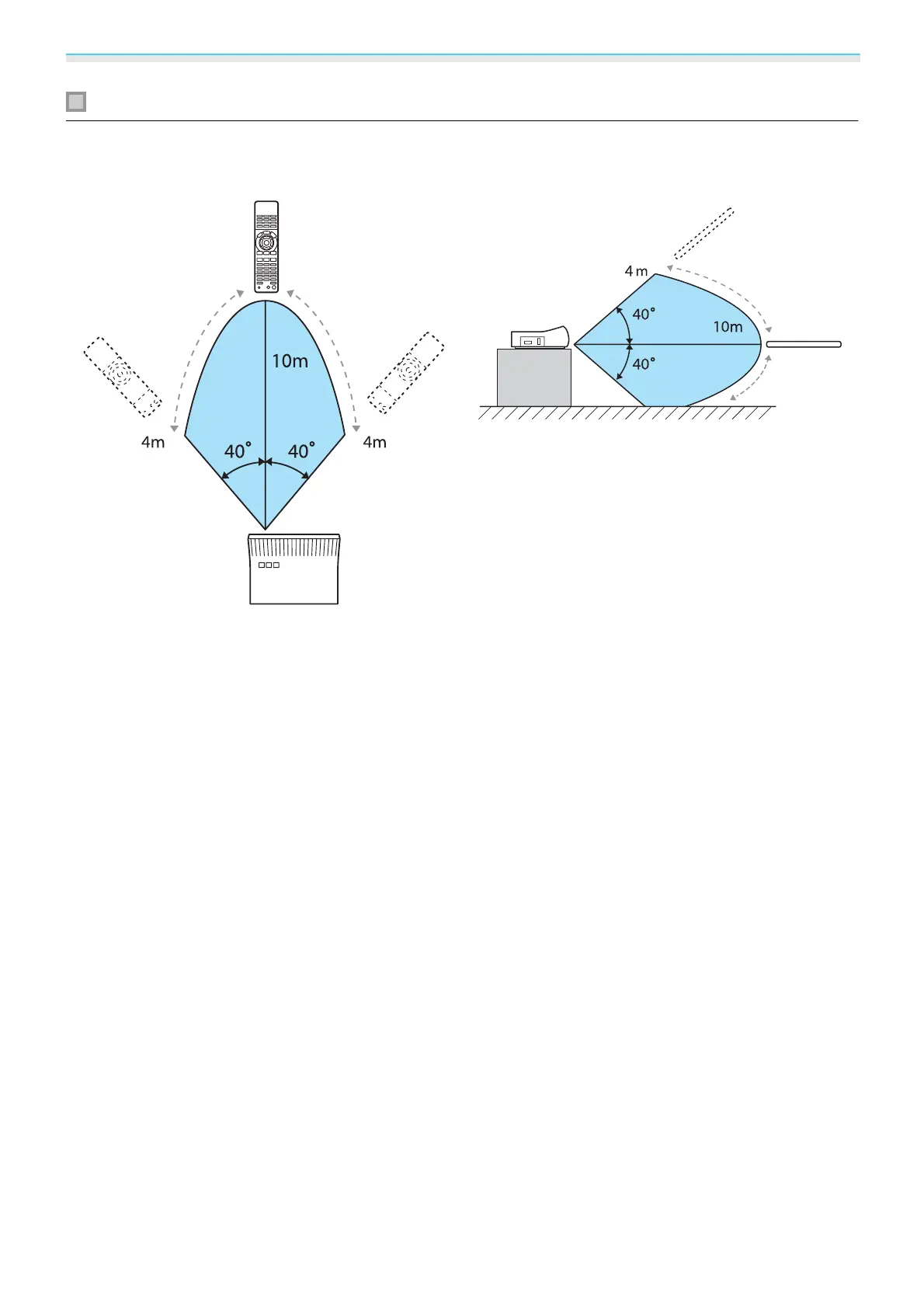

Operating range (left to right) Operating range (top to bottom)
