Epson EPL-7500 - Page 216

The Memory Expansion Board

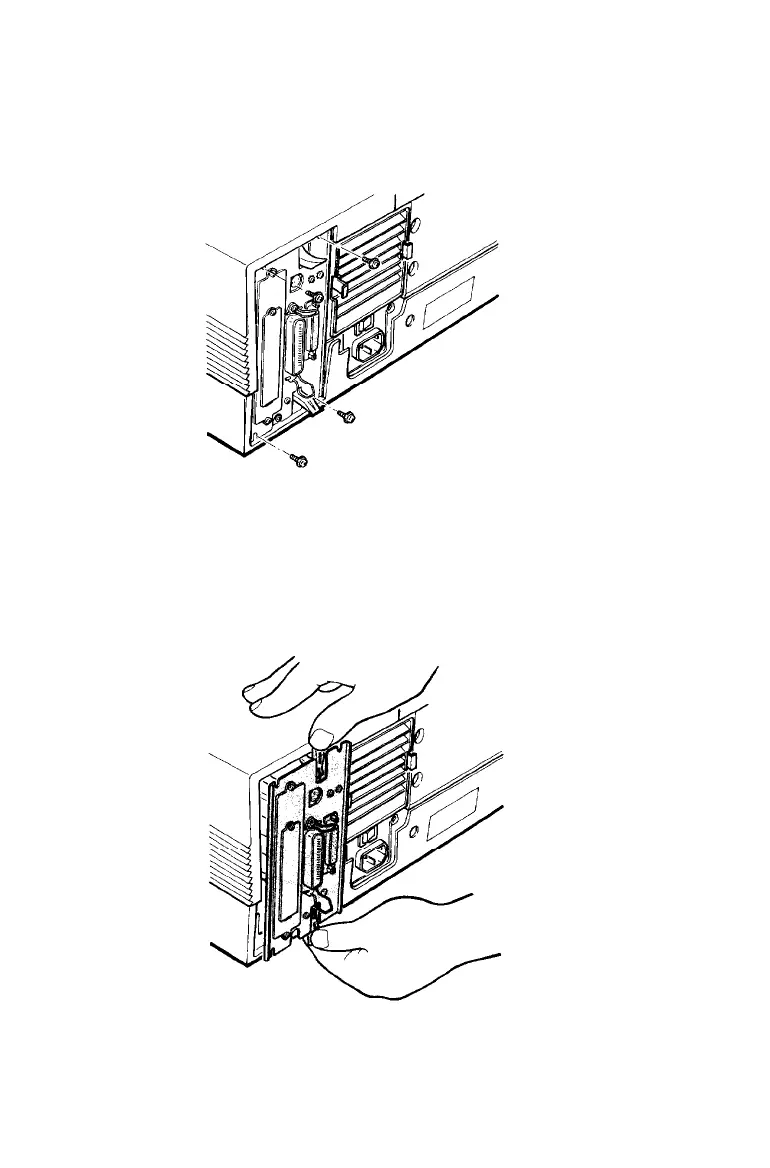

3. Remove the four retaining screws located at the corners of the
metal bracket as shown below. Keep the screws in a safe place.
4. Press back on the two levers to release the controller board
from the printer as shown below. The board pops forward
slightly when released.
Appendix A
A-21
