FINAL ACTIONS
EPSON PRINTERS

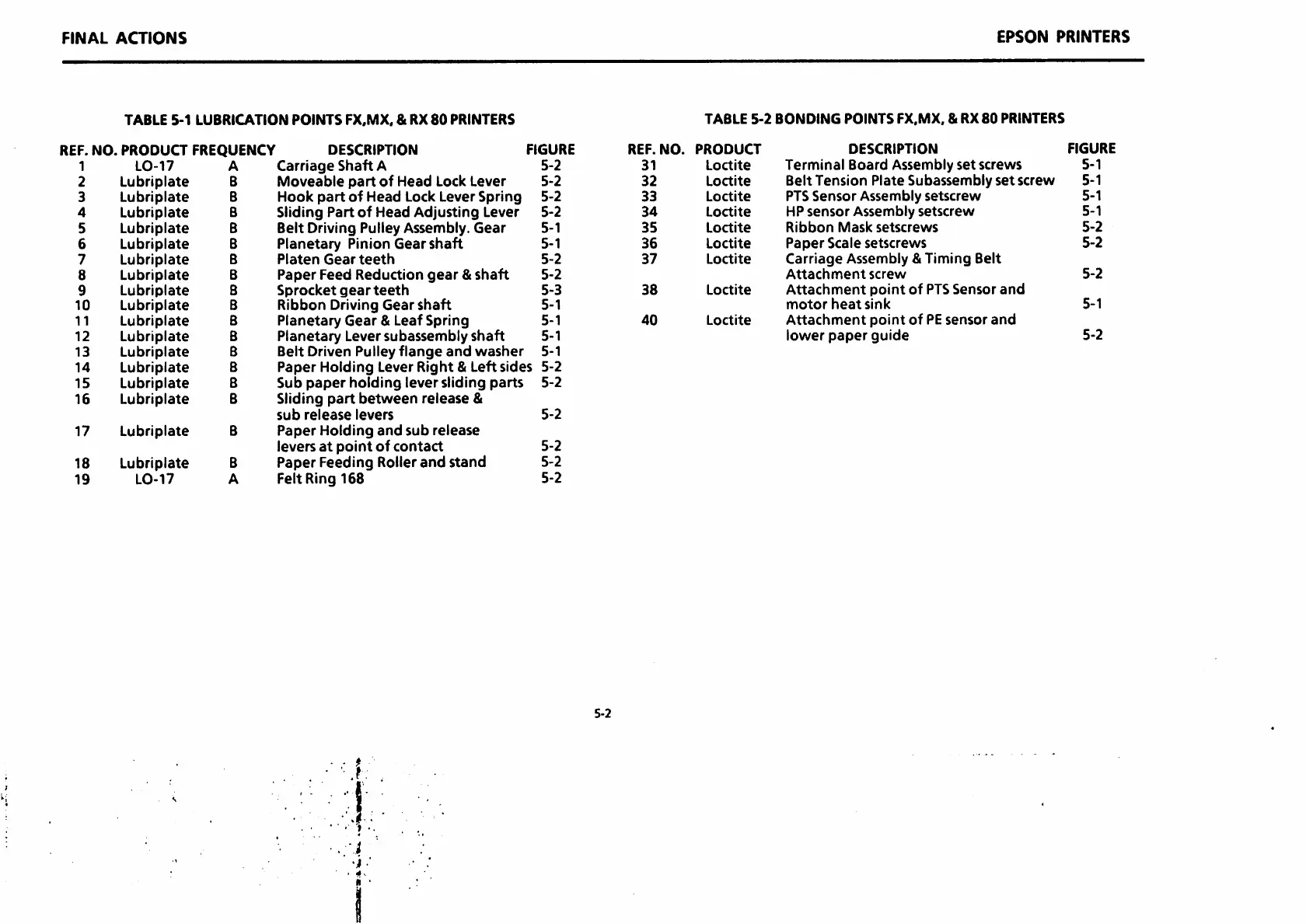

TABLE 5-1 LUBRICATION POINTS FX,MX. & RX 80 PRINTERS
TABLE
5-2 BONDING POINTS FX.MX. & RX 80 PRINTERS
REF. NO. PRODUCT FREQUENCY DESCRIPTION
FIGURE
REF. NO.
PRODUCT
DESCRIPTION
FIGURE
1
LO-17 A Carriage Shaft A
5-2 31 Loctite
Terminal Board Assembly set screws
5-1
2 Lubriplate
B
Moveable part of Head Lock Lever
5-2 32 Loctite
Belt Tension Plate Subassembly set screw 5-1
3 Lubriplate
B Hook part of Head Lock Lever Spring
5-2
33
Loctite PTS Sensor Assembly setscrew
5-1
4
Lubriplate
B Sliding Part of Head Adjusting Lever
5-2
34
Loctite
HP sensor Assembly setscrew
5-1
5 Lubriplate
B Belt Driving Pulley Assembly. Gear
5-1 35
Loctite
Ribbon Mask setscrews
5-2
6 Lubriplate
B Planetary Pinion Gear shaft
5-1 36
Loctite
Paper Scale setscrews
5-2
7 Lubriplate
B
Platen Gear teeth
5-2 37 Loctite Carriage Assembly &Timing Belt
8 Lubriplate
B Paper Feed Reduction gear & shaft
5-2
Attachment screw
5-2
9
Lubriplate
B Sprocket gear teeth
5-3 38
Loctite Attachment point of PTS Sensor and
10 Lubriplate
B
Ribbon Driving Gear shaft 5-1
motor heat sink
5-1
11 Lubriplate
B Planetary Gear &Leaf Spring 5-1 40
Loctite
Attachment point of PE sensor and
12
Lubriplate
B Planetary Lever subassembly shaft 5-1
lower paper guide
5-2
13 Lubriplate
B
Belt Driven Pulley flange and washer
5-1
14
Lubriplate
B Paper Holding Lever Right &Left sides 5-2
15 Lubriplate
B
Sub paper holding lever sliding parts
5-2
16
Lubriplate
B Sliding part between release &
sub release levers
5-2
17
Lubriplate
B Paper Holding and sub release
levers at point of contact
5-2
18
Lubriplate
B Paper Feeding Roller and stand
5-2
19
LO-17 A Felt Ring 168
5-2
5-2
