PARTS LISTS
EPSON PRINTERS

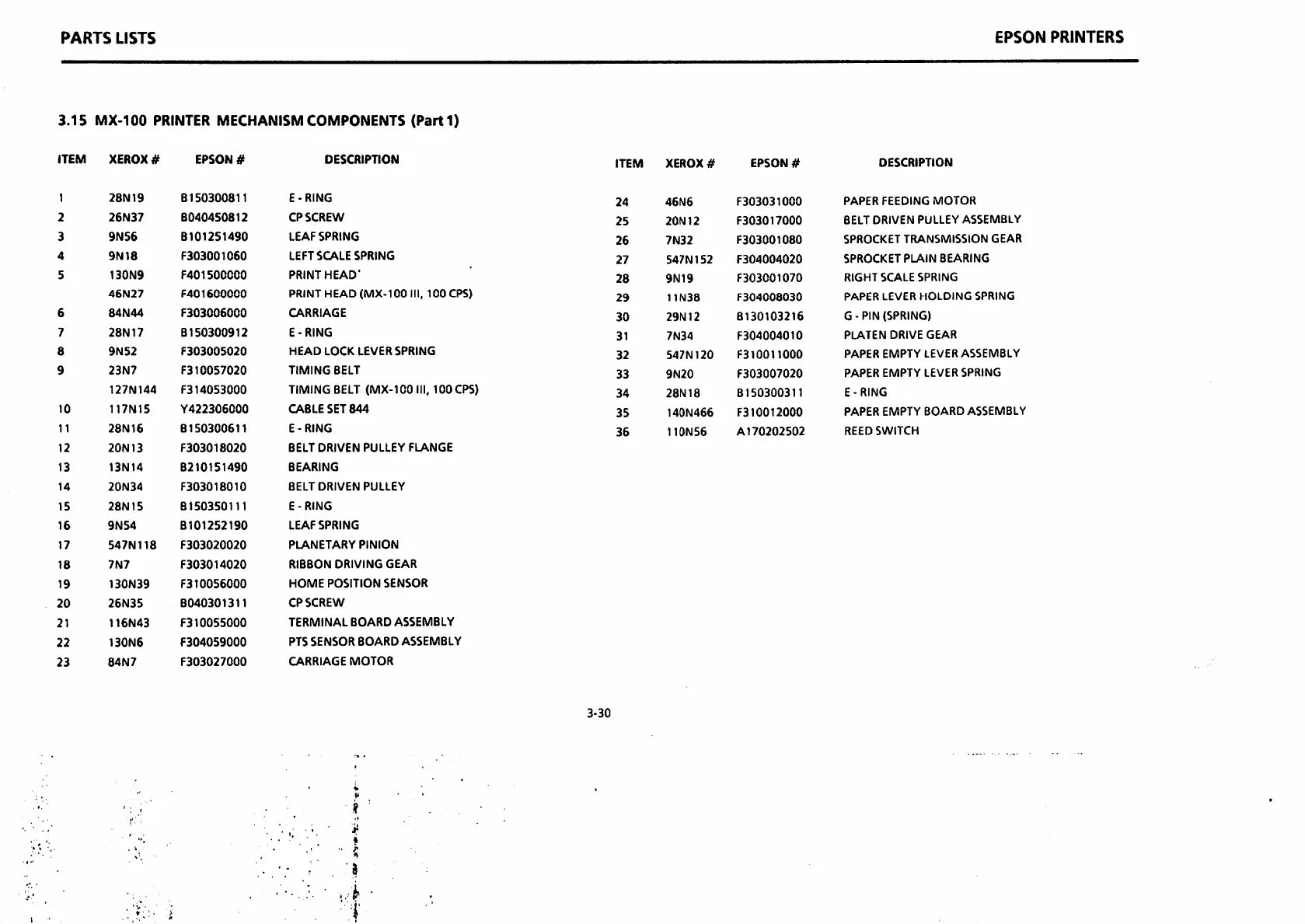

3.15 MX-100 PRINTER MECHANISM COMPONENTS (Parti)
ITEM
XEROX #
EPSON # DESCRIPTION
ITEM XEROX #
EPSON #
DESCRIPTION
1
28N19 B150300811 E-RING
24 46N6
F303031000
PAPER FEEDING MOTOR
2
26N37 B040450812
CP SCREW
25
20N12
F303017000
BELT DRIVEN PULLEY ASSEMBLY
3 9N56 8101251490 LEAF SPRING
26
7N32
F303001080
SPROCKET TRANSMISSION GEAR
4
9N18
F303001060
LEFT SCALE SPRING
27
547N152
F304004020
SPROCKET PLAIN BEARING
5
130N9
F401500000
PRINT HEAD'
28
9N19
F303001070
RIGHT SCALE SPRING
46N27
F401600000
PRINT HEAD (MX-100 III. 100 CPS)
29
11N38
F304008030
PAPER LEVER HOLDING SPRING
6
84N44
F303006000
CARRIAGE
30
29N12
B130103216
G-PIN (SPRING)
7 28N17 8150300912 E-RING
31
7N34
F304004010
PLATEN DRIVE GEAR
8
9N52
F303005020
HEAD LOCK LEVER SPRING
32 547N120
F310011000
PAPER EMPTY LEVER ASSEMBLY
9
23N7
F310057020
TIMING BELT
33
9N20
F303007020
PAPER EMPTY LEVER SPRING
127N144
F314053000
TIMING BELT (MX-100 III, 100 CPS)
34
28N18
8150300311
E-RING
10 117N15 Y422306000
CABLE SET 844
35
140N466
F310012000
PAPER EMPTY BOARD ASSEMBLY
n
28N16
8150300611
E-RING
36
110N56
A170202502
REED SWITCH
12
20N13 F303018020
BELT DRIVEN PULLEY FLANGE
13
13N14
8210151490
BEARING
14 20N34
F303018010
BELT DRIVEN PULLEY
15
28N15
8150350111 E - RING
16
9N54
8101252190
LEAF SPRING
17 547N118 F303020020
PLANETARY PINION
18
7N7
F303014020
RIBBON DRIVING GEAR
19 130N39
F310056000
HOME POSITION SENSOR
20 26N35
8040301311
CP SCREW
21 116N43
F310055000
TERMINAL BOARD ASSEMBLY
22 130N6
F304059000 PTS SENSOR BOARD ASSEMBLY
23
84N7 F303027000
CARRIAGE MOTOR
3-30
