PARTS LISTS
EPSON PRINTERS

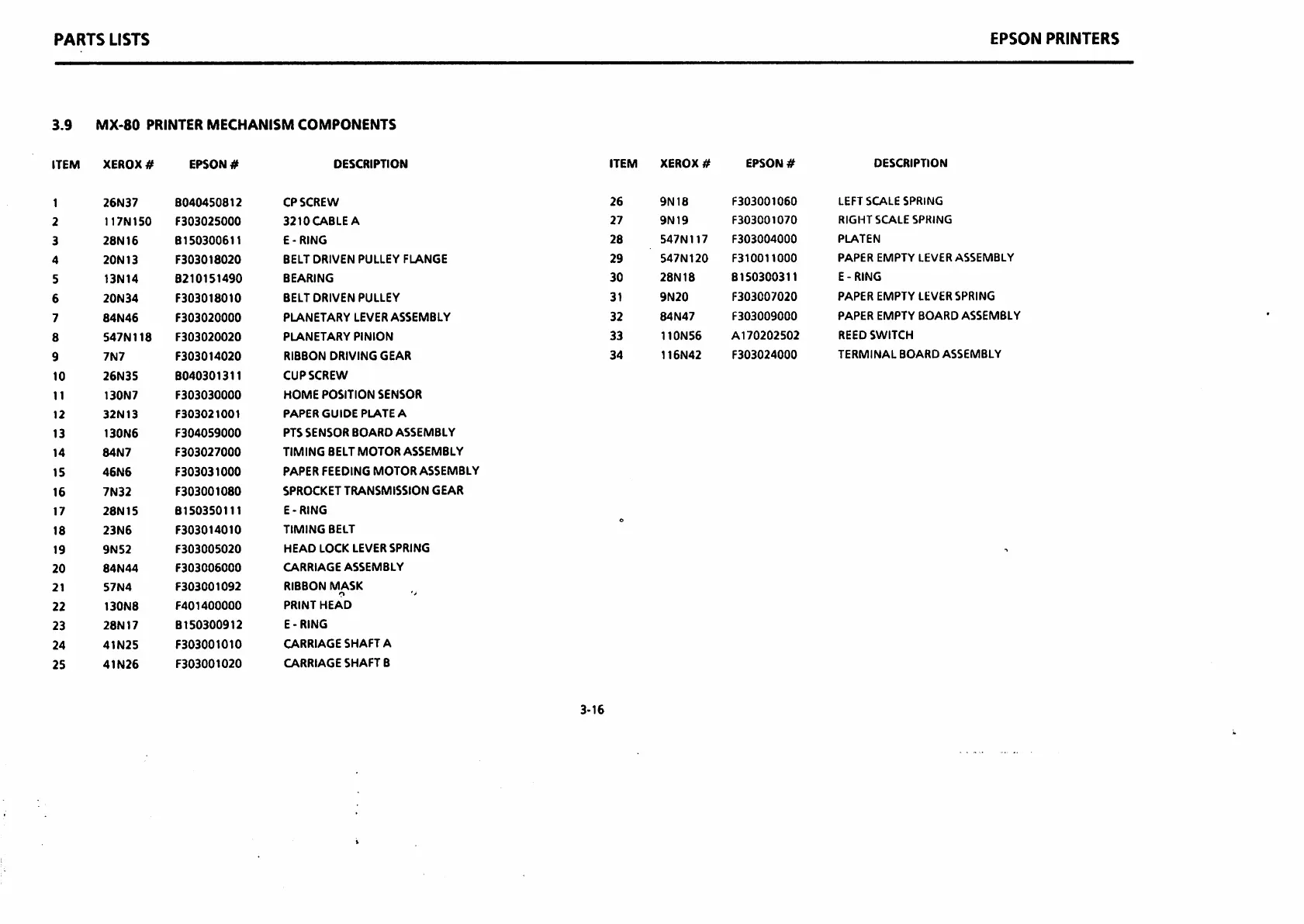

3.9 MX-80 PRINTER MECHANISM COMPONENTS
ITEM
XEROX if
EPSON # DESCRIPTION
ITEM
XEROX # EPSON #
DESCRIPTION
1
26N37
8040450812
CP SCREW
26 9N18
F303001060
LEFT SCALE SPRING
2 117N150
F303025000
3210CABLEA
27
9N19
F303001070
RIGHT SCALE SPRING
3
28N16
8150300611
E - RING
28
547N117
F303004000
PLATEN
4
20N13
F303018020
BELT DRIVEN PULLEY FLANGE
29 547N120
F310011000
PAPER EMPTY LEVER ASSEMBLY
5
13N14 8210151490
BEARING
30
28N18
B150300311
E - RING
6
20N34 F303018010
BELT DRIVEN PULLEY
31 9N20
F303007020
PAPER EMPTY LEVER SPRING
7 84N46 F303020000
PLANETARY LEVER ASSEMBLY
32
84N47 F303009000
PAPER EMPTY BOARD ASSEMBLY
8 547N118
F303020020
PLANETARY PINION
33 110N56
A170202502
REED SWITCH
9
7N7 F303014020
RIBBON DRIVING GEAR
34 116N42 F303024000
TERMINAL BOARD ASSEMBLY
10
26N35 8040301311
CUP SCREW
11
130N7 F303030000
HOME POSITION SENSOR
12 32N13
F303021001
PAPER GUIDE PLATE A
13
130N6
F304059000
PTS SENSOR BOARD ASSEMBLY
14
84N7 F303027000
TIMING BELT MOTOR ASSEMBLY
15
46N6
F303031000
PAPER FEEDING MOTOR ASSEMBLY
16
7N32
F303001080
SPROCKET TRANSMISSION GEAR
17 28N15
8150350111
E-RING
18
23N6
F303014010
TIMING BELT
19
9N52
F303005020
HEAD LOCK LEVER SPRING
20
84N44
F303006000
CARRIAGE ASSEMBLY
21
57N4
F303001092
RIBBON MASK
O
22
130N8
F401400000
PRINT HEAD
23
28N17
8150300912
E - RING
24
41N25
F303001010
CARRIAGE SHAFT A
25
41N26
F303001020
CARRIAGE SHAFT 8
