Epson FX Series

FINAL ACTIONS

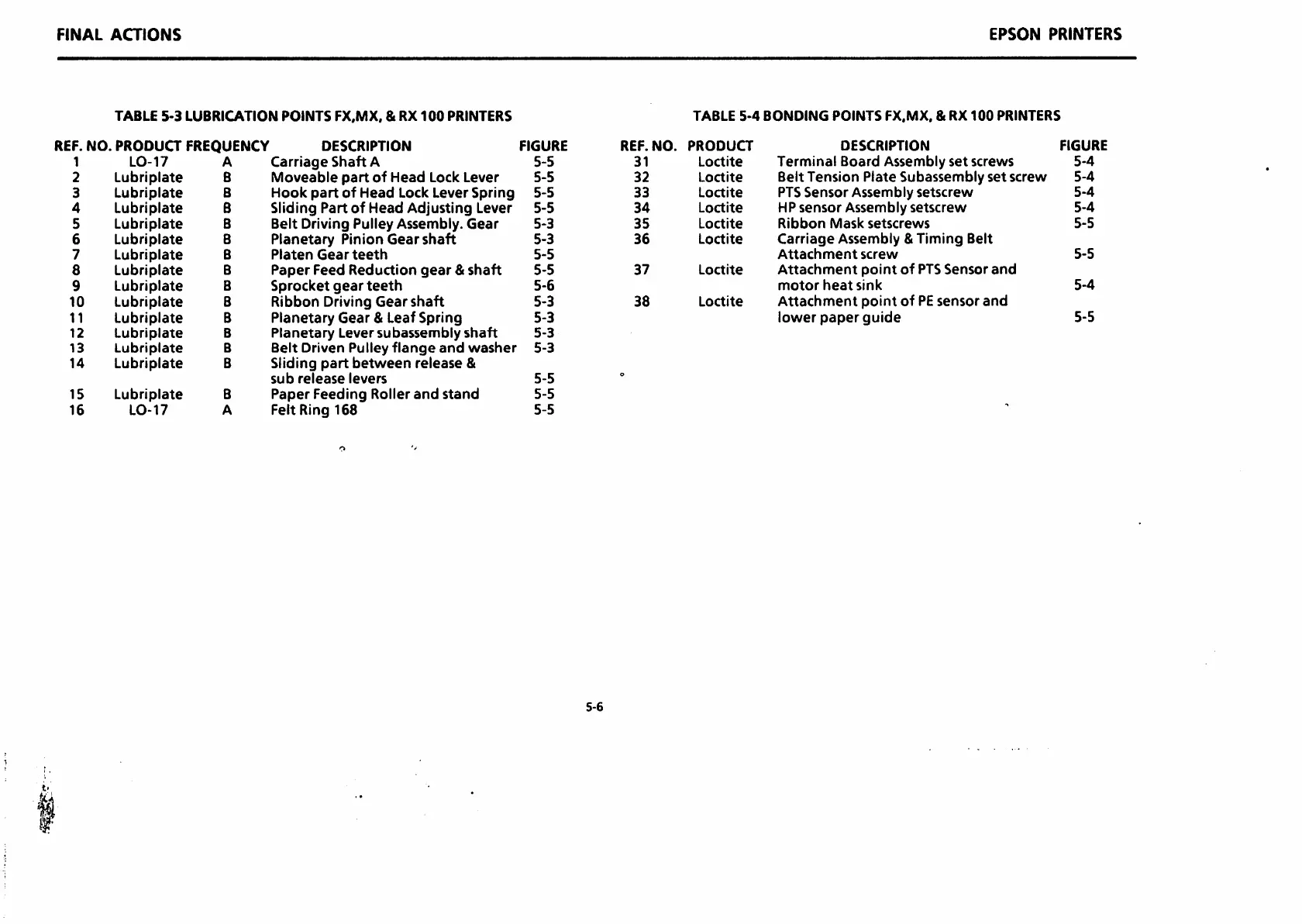

TABLE 5-3 LUBRICATION POINTS FX,MX. & RX 100 PRINTERS
REF.
NO. PRODUCT FREQUENCY
1
LO-17 A
2
Lubriplate
B
3
Lubriplate
B
4 Lubriplate B
5 Lubriplate
B
6 Lubriplate
B
7
Lubriplate
B
8
Lubriplate
B
9 Lubriplate
B
10 Lubriplate
B
11
Lubriplate
B
12 Lubriplate
B
13
Lubriplate
B
14
Lubriplate
B
15 Lubriplate
B
16
LO-17 A
DESCRIPTION FIGURE
Carriage Shaft A 5-5
Moveable part of Head Lock Lever 5-5
Hook part of Head Lock Lever Spring 5-5
Sliding Part of Head Adjusting Lever 5-5
Belt Driving Pulley Assembly.
Gear 5-3
Planetary Pinion Gear shaft 5-3
Platen Gear teeth 5-5
Paper Feed Reduction gear & shaft 5-5
Sprocket gear teeth 5-6
Ribbon Driving
Gear shaft 5-3
Planetary Gear &Leaf Spring 5-3
Planetary Lever subassembly shaft 5-3
Belt Driven Pulley flange and washer 5-3
Sliding part between release &
sub release levers 5-5
Paper Feeding Roller and stand 5-5
Felt Ring 168 5-5
5-6
EPSON PRINTERS
TABLE 5-4 BONDING POINTS FX.MX. & RX 100 PRINTERS
REF. NO. PRODUCT
DESCRIPTION
FIGURE
31 Loctite
Terminal Board Assembly set screws
5-4
32 Loctite
Belt Tension Plate Subassembly set screw 5-4
33 Loctite PTS Sensor Assembly setscrew
5-4
34
Loctite
HP sensor Assembly setscrew
5-4
35 Loctite
Ribbon Mask setscrews
5-5
36
Loctite
Carriage Assembly & Timing Belt
Attachment screw
5-5
37
Loctite
Attachment point of PTS Sensor and
motor heat sink
5-4
38
Loctite Attachment point of PE sensor and
lower paper guide
5-5
