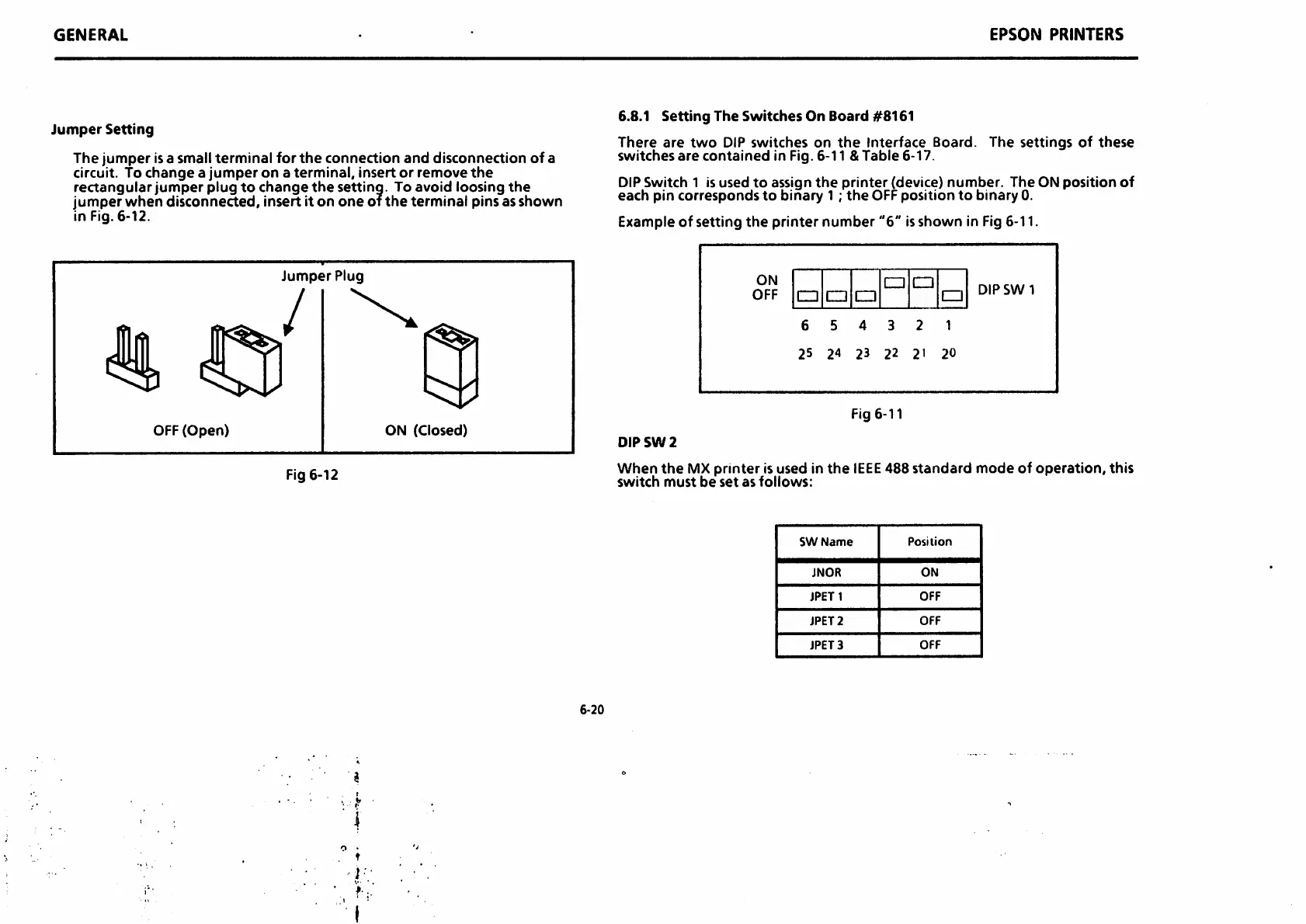

GENERAL
Jumper
Setting
The
jumper
isa small
terminal
for
the
connection
and
disconnection
of
a
circuit. To
change
a
jumper
on
a
terminal,
insert
or
remove
the
rectangular
jumper
plug
to
change
the
setting.
To
avoid
loosing
the
jumper
when
disconnected,
insert it
on
one
of
the
terminal
pins as
shown
in Fig. 6-12.
Jumper
Plug
/
OFF
(Open)
ON
(Closed)
Fig
6-12
6-20
EPSON
PRINTERS
6.8.1
Setting
The
Switches
On
Board
#8161
There
are
two
DIP
switches
on
the
Interface
Board.
The
settings
of
these
switches
are
contained
in Fig. 6-11 &
Table
6-17.
DIPSwitch 1 is
used
to
assign
the
printer
(device)
number.
The
ON
position
of
each
pin
corresponds
to
binary
1 ;
the
OFF
position
to
binary
0.
Example
of
setting
the
printer
number
"6"
is
shown
in Fig 6-11.
DIP
SW
2
ON
OFF
1 1 1 1 1 1
1 1
1 1
1 1
DIP
SW
1
6 5
4
3
2
1
25
24
23 22
21
20
Fig 6-11
When
the
MX
printer
is
used
in
the
IEEE
488
standard
mode
of
operation,
this
switch
must
be
set
as
follows:
SW
Name
Position
JNOR
ON
JPET1
OFF
JPET2
OFF
JPET3
OFF
