PARTS LISTS

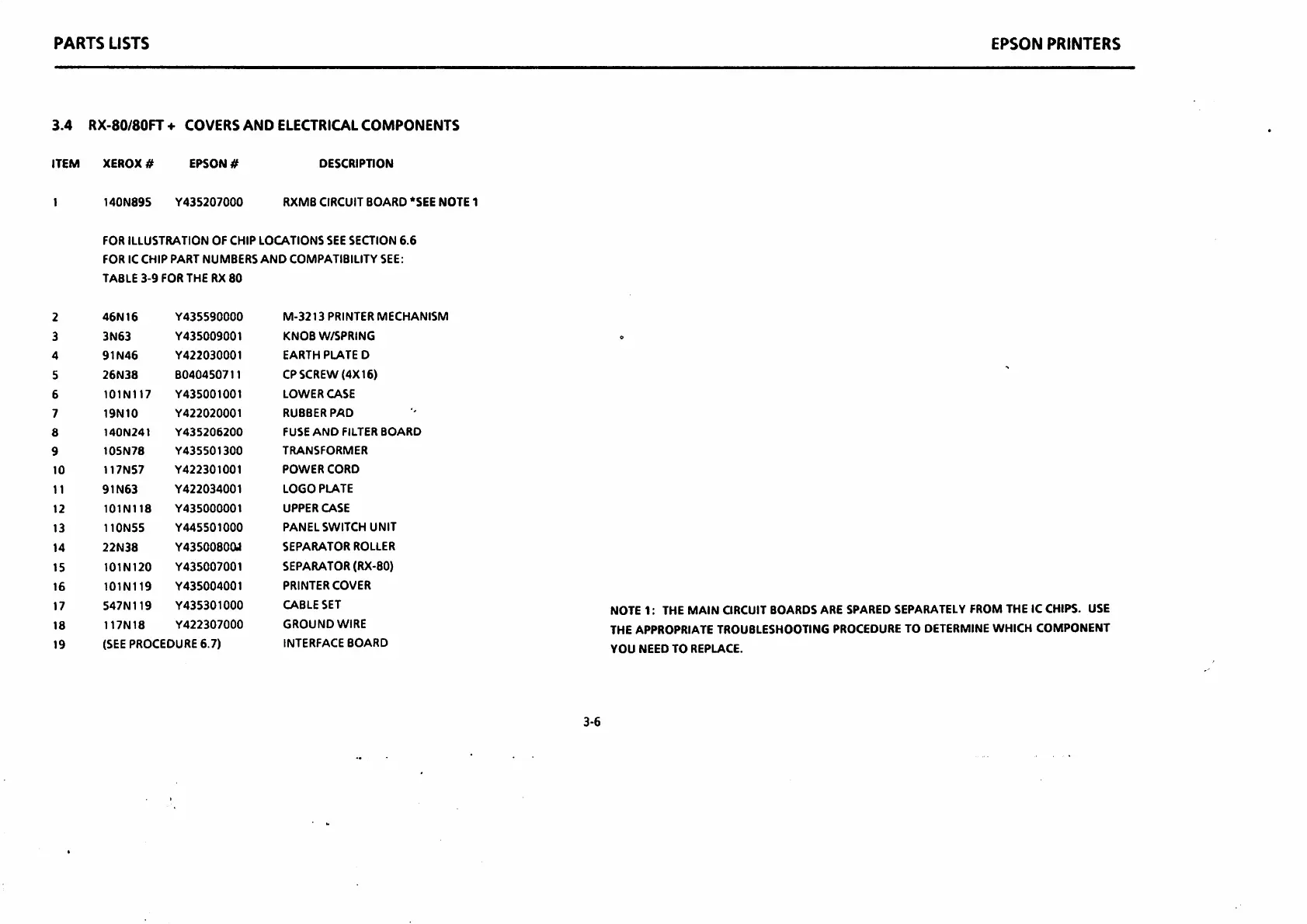

3.4 RX-80/80FT+ COVERS AND ELECTRICAL COMPONENTS
ITEM XEROX # EPSON # DESCRIPTION
1 140N895 Y435207000 RXMB CIRCUIT BOARD *SEE NOTE 1
FOR ILLUSTRATION OF CHIP LOCATIONS SEE SEaiON 6.6
FOR IC CHIP PART NUMBERS AND COMPATIBILITY SEE:
TABLE 3-9 FOR THE RX 80
2 46N16
Y435590000
M-3213 PRINTER MECHANISM
3
3N63
Y435009001
KNOB W/SPRING
4
91N46
Y422030001
EARTH PLATE D
5
26N38
B040450711
CP SCREW (4X16)
6
101N117 Y435001001
LOWERCASE
7 19N10 Y422020001
RUBBER PAD
8
140N24t Y435206200 FUSE AND FILTER BOARD
9
105N78 Y435501300
TRANSFORMER
10
117N57 Y422301001
POWER CORD
11
91N63
Y422034001 LOGO PLATE
12
101N118 Y435000001
UPPER CASE
13
110N55
Y445501000
PANEL SWITCH UNIT
14
22N38
Y43500800J
SEPARATOR ROLLER
15
101N120
Y435007001
SEPARATOR (RX-80)
16
101N119
Y435004001
PRINTER COVER
17
547N119
Y435301000
CABLE SET
18
117N18
Y422307000
GROUND WIRE
19
(SEE PROCEDURE 6.7)
INTERFACE BOARD
3-6
EPSON PRINTERS
NOTE 1: THE MAIN CIRCUIT BOARDS ARE SPARED SEPARATELY FROM THE IC CHIPS. USE
THE APPROPRIATE TROUBLESHOOTING PROCEDURE TO DETERMINE WHICH COMPONENT
YOU NEED TO REPLACE.
