Epson FX Series

PARTS LISTS

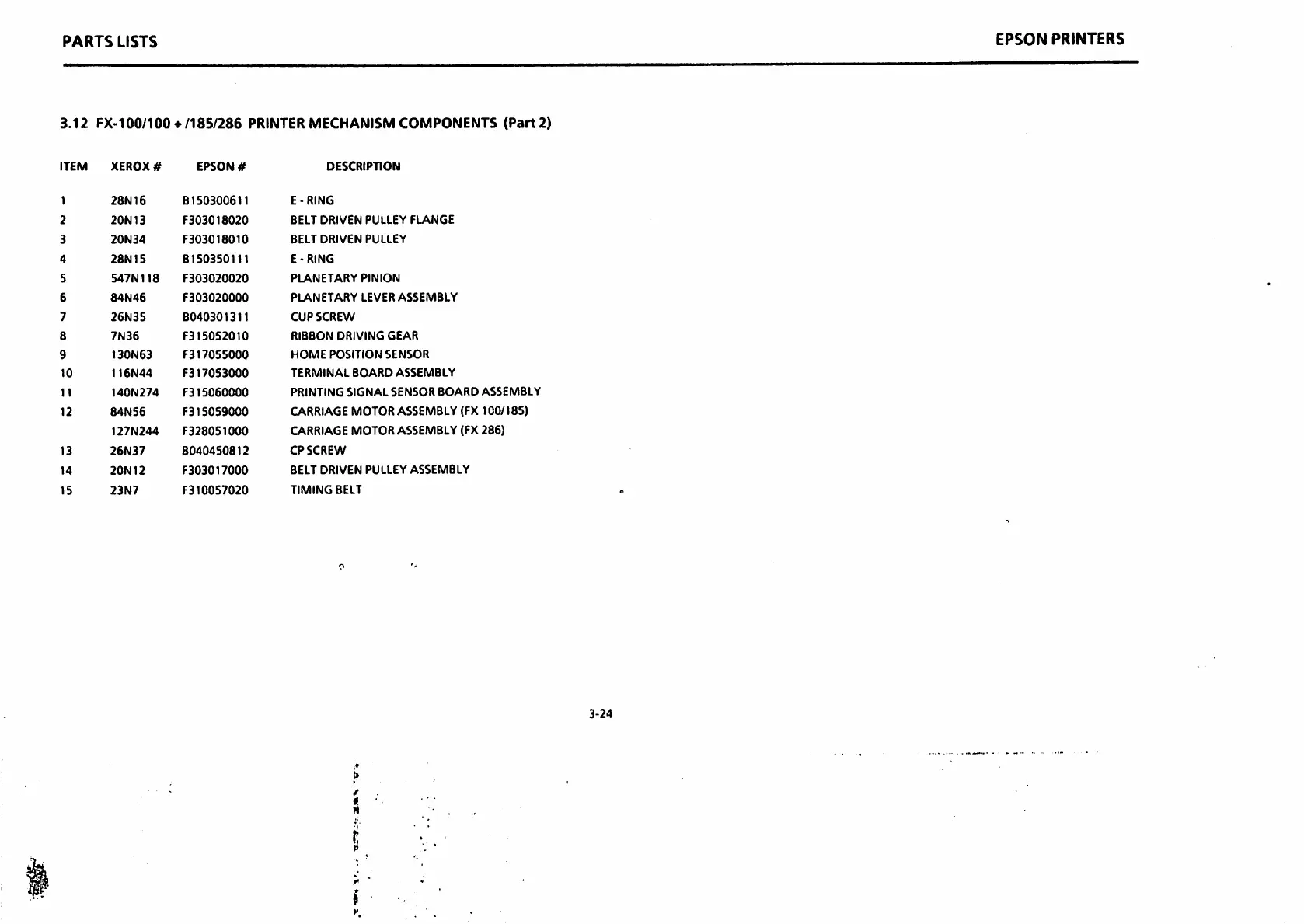

3.12 FX-100/100 +/185/286 PRINTER MECHANISM COMPONENTS (Part 2)
ITEM XEROX #
EPSON #
DESCRIPTION
1
28N16 B150300611
E-RING
2
20N13 F303018020
BELT DRIVEN PULLEY FLANGE
3 20N34 F303018010
BELT DRIVEN PULLEY
4 28N15 B150350111
E • RING
5 547N118 F303020020
PLANETARY PINION
6
84N46 F303020000
PLANETARY LEVER ASSEMBLY
7
26N35 B040301311
CUP SCREW
8 7N36 F315052010
RIBBON DRIVING GEAR
9 130N63
F317055000
HOME POSITION SENSOR
10
116N44
F317053000
TERMINAL BOARD ASSEMBLY
11
140N274
F315060000
PRINTING SIGNAL SENSOR BOARD ASSEMBLY
12 84N56 F315059000
CARRIAGE MOTOR ASSEMBLY (FX 100/185)
127N244 F328051000
CARRIAGE MOTOR ASSEMBLY (FX 286)
13 26N37
B040450812
CP SCREW
14 20N12 F303017000
BELT DRIVEN PULLEY ASSEMBLY
15
23N7
F310057020
TIMING BELT
EPSON PRINTERS
3-24
