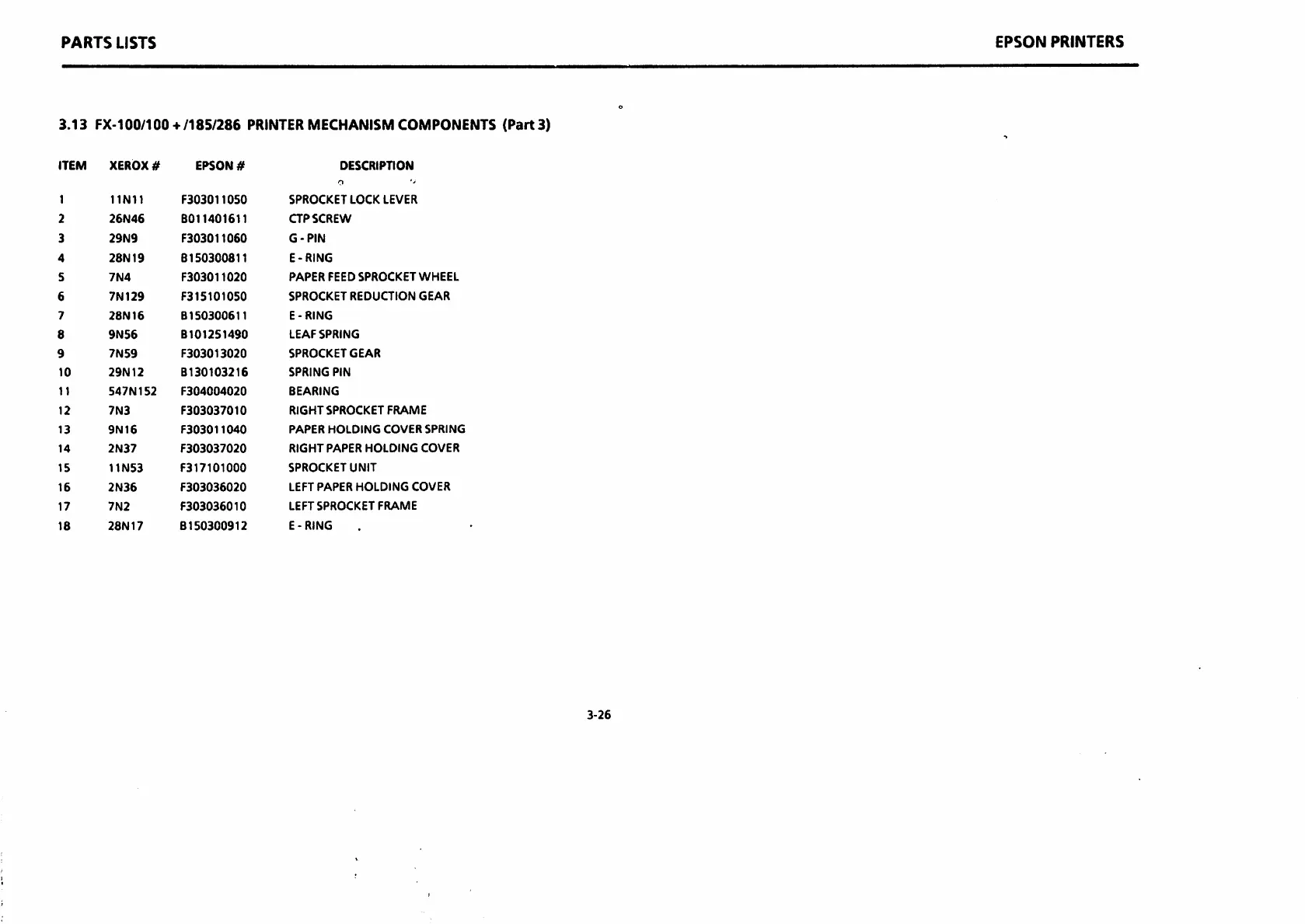

3.13 FX-100/100 ^7185/286 PRINTER MECHANISM COMPONENTS (Part3)
ITEM XEROX #
EPSON#
DESCRIPTION
1 11N11
F303011050 SPROCKET LOCK LEVER
2
26N46 8011401611
CTP SCREW
3 29N9 F303011060 G-PIN
4
28N19 8150300811
E-RING
S
7N4
F303011020
PAPER FEED SPROCKET WHEEL
6 7N129 F315101050
SPROCKET REDUCTION GEAR
7
28N16 B150300611 E - RING
8 9N56 8101251490
LEAF SPRING
9 7N59 F303013020
SPROCKET GEAR
10
29N12
8130103216
SPRING PIN
11 547N152
F304004020
8EARING
12 7N3 F303037010
RIGHT SPROCKET FRAME
13 9N16 F303011040
PAPER HOLDING COVER SPRING
14 2N37
F303037020
RIGHT PAPER HOLDING COVER
15
11N53
F317101000
SPROCKET UNIT
16 2N36 F303036020
LEFT PAPER HOLDING COVER
17 7N2 F303036010
LEFT SPROCKET FRAME
18 28N17
8150300912
E-RING
EPSON PRINTERS
3-26
