44 Using Optional Equipment

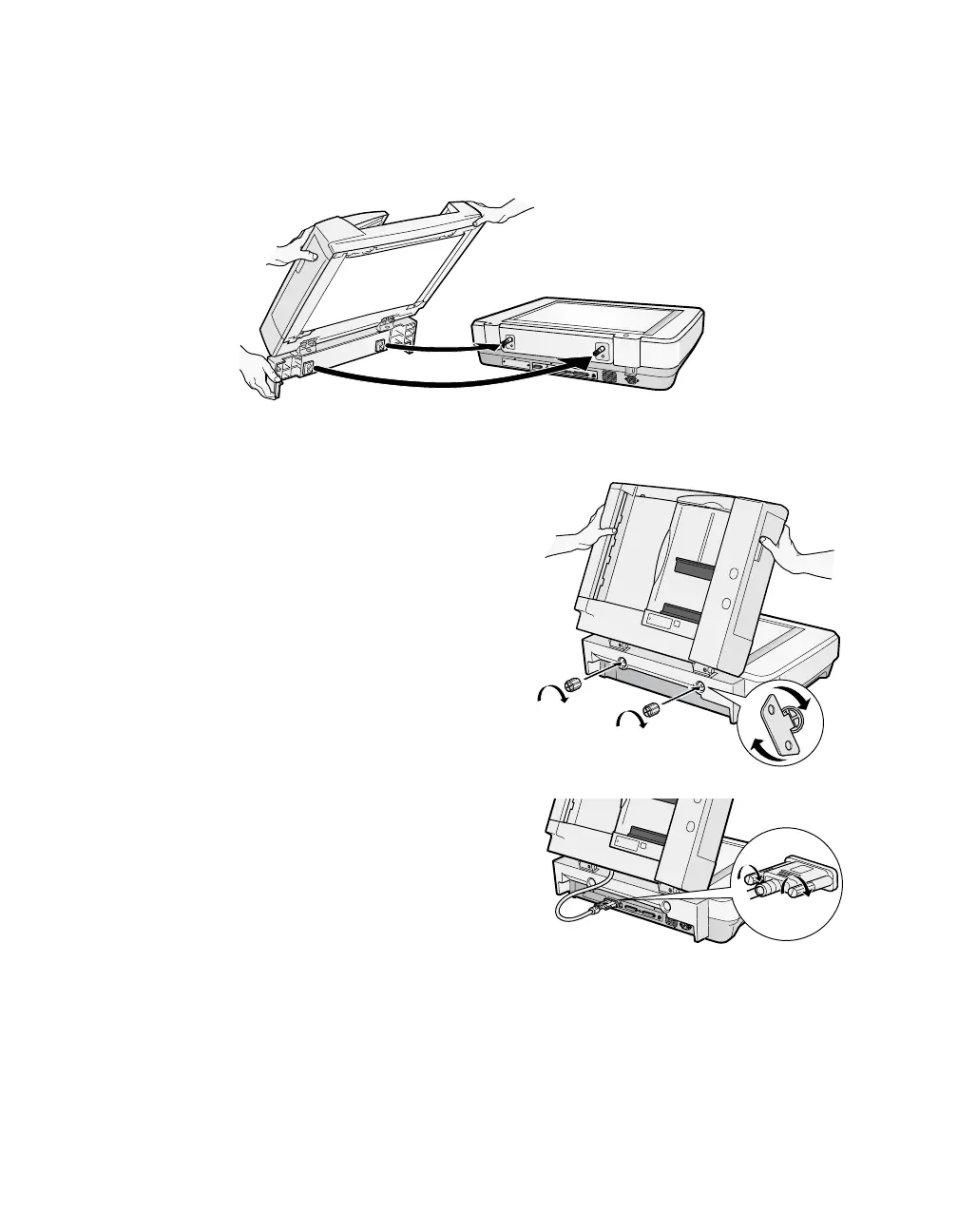

6. Align the screws with the holes in the automatic document feeder. Then slide the
holes over the installation screws. Make sure the small pegs below the holes on the
feeder go all the way into the back of the scanner.
Warning: Have someone help you lift the automatic document feeder.
7. Secure the knobs to the ends of the
installation screws using the screwdriver.
Make sure the base of the feeder is flush
against the back of the scanner.
8. Attach the cable to the scanner’s
ADF
connector and tighten the screws.
