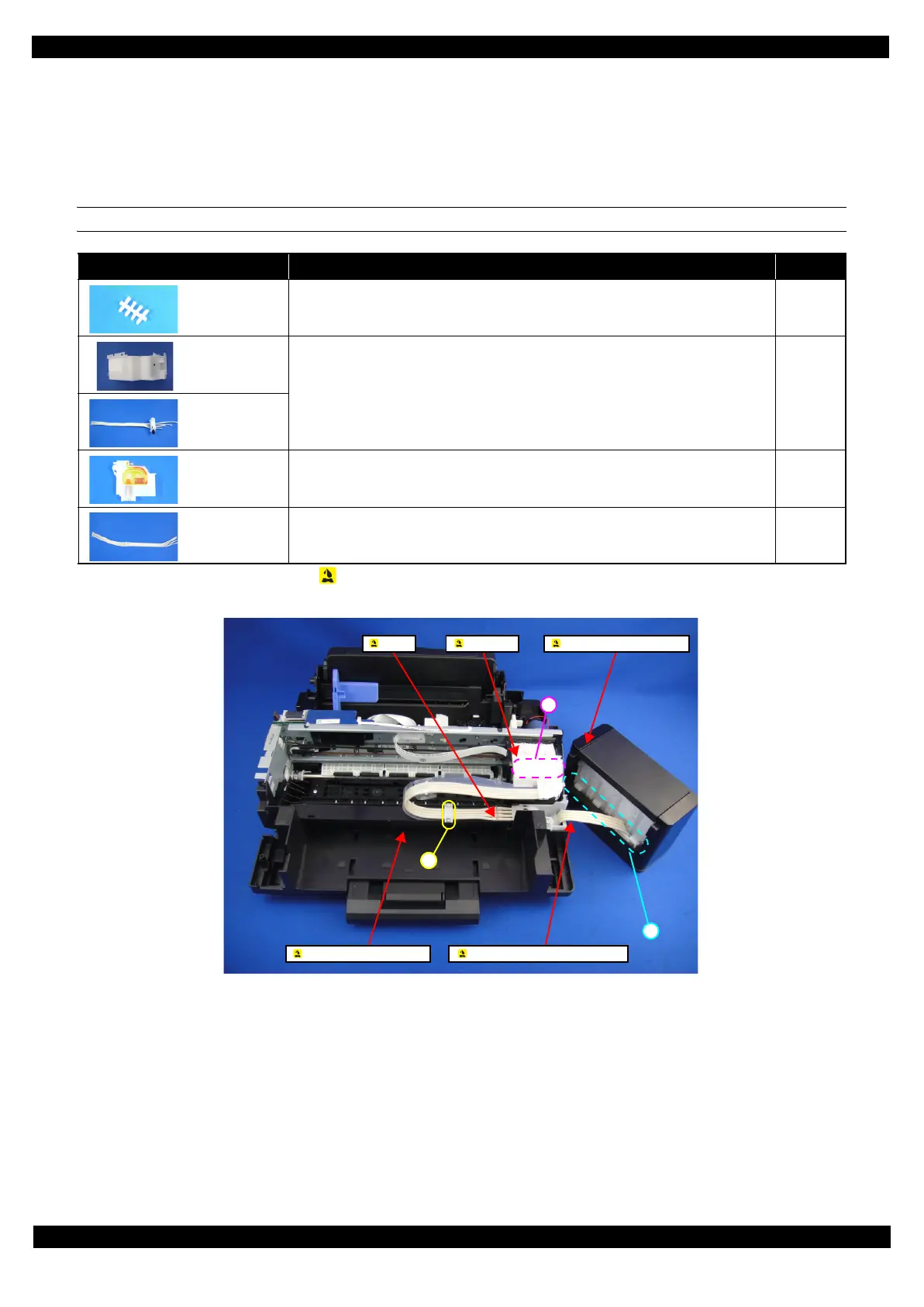

2.1.5.2 Factors which Affect the Safety of Service Personnel such as Ink Leakage during
Operation
Ink may spill when removing the following parts from L565/L566 Series.
This section describes the parts that may cause ink spill and the means to minimize the ink spill when removing
the parts.
THE PARTS THAT MAY CAUSE INK SPILL WHEN REMOVING
Note : These parts are indicated with the icon in disassembly/reassembly flowchart. (See "2.2 Disassembly/Reassembly Procedures
(p33)".)
Figure 2-9. Location
Parts When ink may spill Location
Joint Removing the Ink Supply Tank Tube Assy / Ink Supply Tube Assy from the Joint A
Ink Supply
Tank
• Removing the tubes of the Ink Supply Tank Tube Assy from the Joint
• Removing the tubes of the Ink Supply Tank Tube Assy from the Ink Supply Tank
A, B
Ink Supply
Tank Tube Assy
Adapter Removing the Ink Supply Tube Assy from the Adapter C
Ink Supply
Tube Assy
• Removing the Ink Supply Tank Tube Assy / Ink Supply Tube Assy from the Joint
• Removing the Ink Supply Tube Assy from the Adapter
A, C
A
C
B
Joint Ink Supply Tank Assy
Ink Supply Tank Tube Assy Ink Supply Tube Assy
Adapter

Epson L565 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	100 pages
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Indonesia
Maximum duty cycle	- pages per month
Paper input type	Paper tray
Total input capacity	30 sheets
Total output capacity	100 sheets
Photo paper sizes	10x15, 13x18 cm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Black
Market positioning	Home & office
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0
Internal memory	- MB
Sound pressure level (copying)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.6 W
Power consumption (average operating)	11 W
Sustainability certificates	ENERGY STAR
Pallet width	800 mm
Pallet height	1320 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	563 mm
Package width	465 mm
Package height	315 mm
Package weight	9060 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	377 mm
Width	484 mm
Height	226 mm
