Epson L565 Service Manual

Confidential
Disassembly/Reassembly Overview 19
L565/L566 Series Revision A
2.1.3 Locations of the Parts/Units
This section shows the locations of the main parts/units of this product.
 Exterior parts

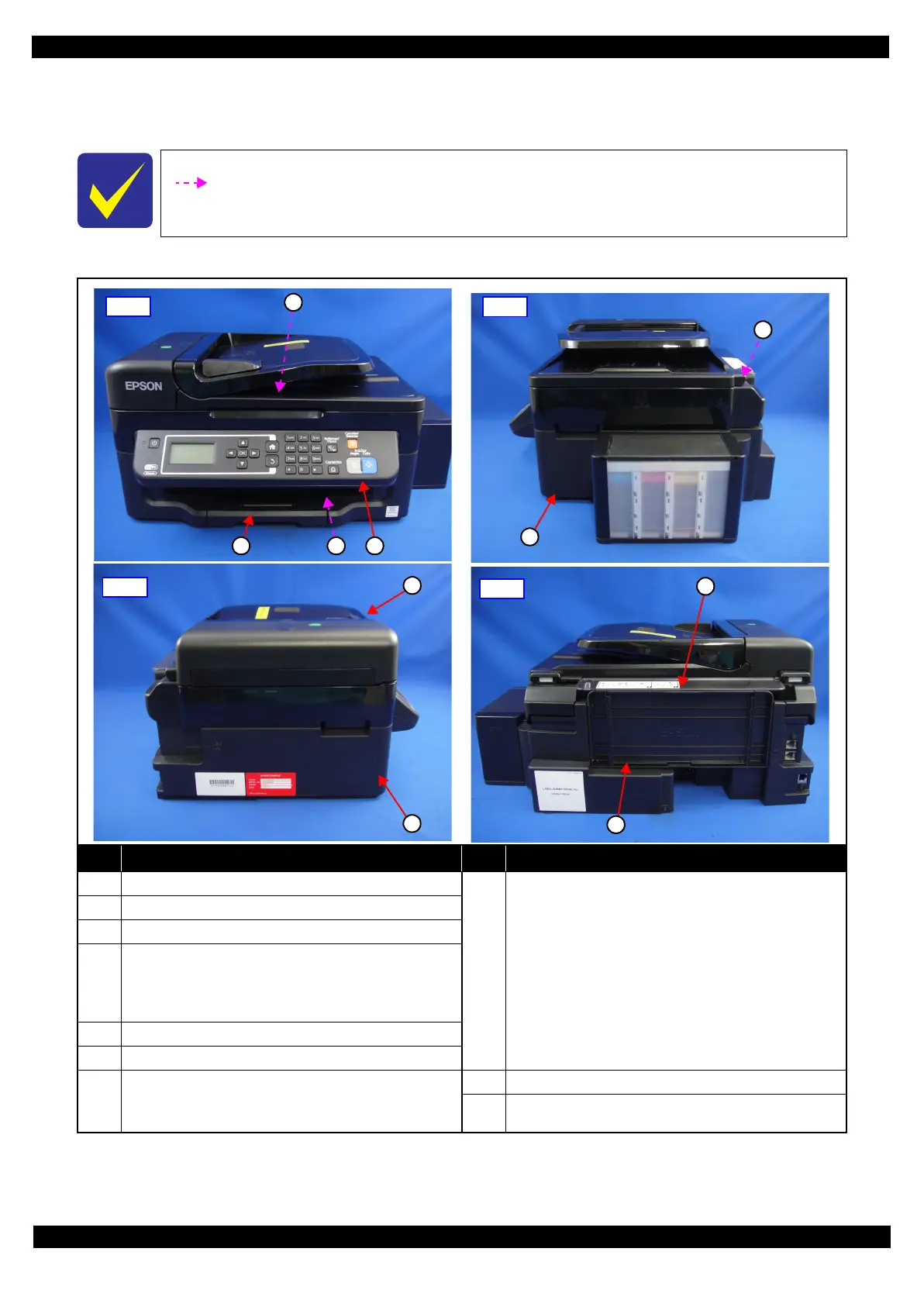

Figure 2-2. Exterior Parts
The parts/units which can not be seen in the following pictures are indicated in dotted lines
().
No. Name No. Name
1 Housing Rear (p35)
8
ADF/Scanner Unit* (p35)
• ADF Unit (p40)
ADF Paper Guide Cover Assy (p36) / Paper Support
Cover (p36) / Bevel Gear Shaft (p40) / Combination
Gear 24.9.6 (p40) / ADF Document Support (p40) /
ADF Pad Assy (p40)
• Scanner Unit (p40)
Scanner Housing Upper (p40) / Scanner Carriage Unit
(p40) / Scanner Housing Lower (p40) / CIS Module
Unit (p40) / Scanner Motor (p40)
2 Tray Front Assy (p35)
3 Frame Base Assy (p38)
4
Panel Unit (p38)
Panel Board (p41) / Panel Buttons (p41) / Panel
Housing Upper Assy (p41) / Panel Housing Lower
(p41)
5 Hinge (p39)
6 Housing Right (p39)
7
Housing Left Assy (p35)
• Housing Left (p41)
• Ethernet Cover (p41)
9 Paper Support (p35)
10 Paper Support Sub (p35)
1
2 3 4
Front
5
6
Right
7
8
Left
9
10
Rear

Epson L565 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	100 pages
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Indonesia
Maximum duty cycle	- pages per month
Paper input type	Paper tray
Total input capacity	30 sheets
Total output capacity	100 sheets
Photo paper sizes	10x15, 13x18 cm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Black
Market positioning	Home & office
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0
Internal memory	- MB
Sound pressure level (copying)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.6 W
Power consumption (average operating)	11 W
Sustainability certificates	ENERGY STAR
Pallet width	800 mm
Pallet height	1320 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	563 mm
Package width	465 mm
Package height	315 mm
Package weight	9060 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	377 mm
Width	484 mm
Height	226 mm
