Epson L565 Service Manual

L565/L566 Series Revision A
Confidential
Disassembly/Reassembly Disassembly/Reassembly Procedures 41

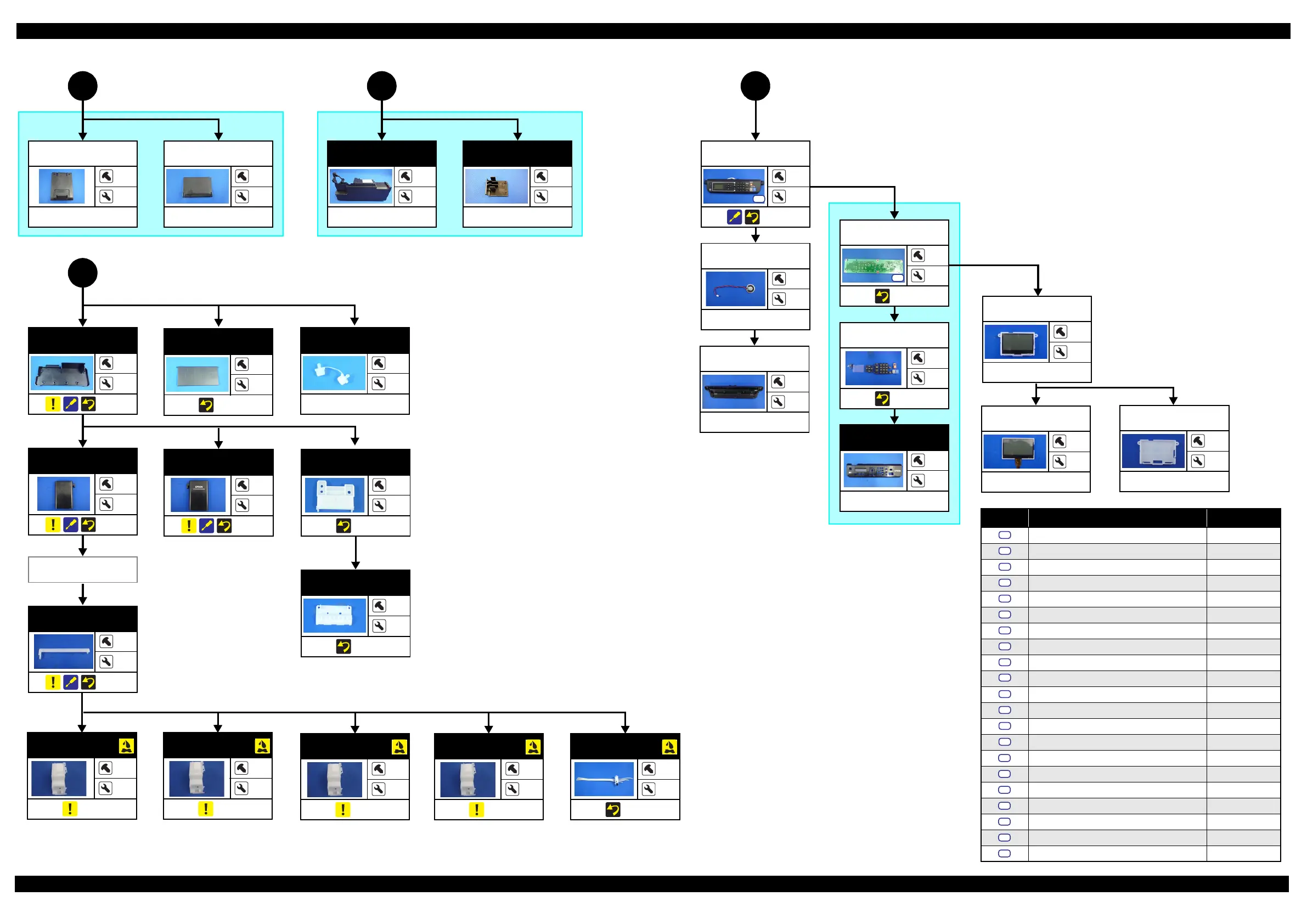

Flowchart 2-2. Unit/Assy (2)
Screw type/torque list
Symbol Screw Type Torque
C.B.P-TITE (S-P1) SCREW 3x12 F/ZN-3C 6 ± 1 kgf · cm
C.B.P-TITE SCREW 2.6x5 F/ZN-3C 6 ± 1 kgf · cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 2
± 0.5 kgf · cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 2.5 kgf · cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 4
± 1 kgf · cm
C.B.P-TITE SCREW 3x10 F/ZB-3C 6 ± 1 kgf · cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 6
± 1 kgf · cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 5 ± 1 kgf · cm
C.B.P-TITE SCREW 2.5x8 F/ZN-3C 2.5
± 0.5 kgf · cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 7 ± 1 kgf · cm
C.B.P-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf · cm
C.B.P-TITE SCREW 3x6 F/ZN-3C 6 ± 1 kgf · cm
C.B.S-TITE (P2) SCREW 3x6 F/ZN-3C 7
± 1 kgf · cm
C.B.S-TITE SCREW 2x4 F/ZN-3C 2 ± 0.5 kgf · cm
C.B.S-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf · cm
C.B.S-TITE SCREW 3x6 F/ZB-3C 6 ± 1 kgf · cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 6
± 1 kgf · cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 8 ± 1 kgf · cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 7
± 1 kgf · cm
C.P-TITE SCREW 3x4 F/ZN-3C 4 ± 1 kgf · cm
C.B.S-TITE SCREW 3x8 F/ZB-3C 6
± 1 kgf · cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
(p 35)
4
Housing Left
---
2
---
Ethernet Cover
---
2
---
5
Panel Housing
Lower
---
---
---
Panel Board
4
---
(p 46)
S7
Panel Buttons
---
4
(p 46)
Panel Housing
Upper
---
---
---
Panel Housing
Upper Assy
3
4
(p 46)
S6
(p 38)
Tray Front
---
2
---
Tray Front
Support
---
2
---
(p 35)
2
(p 35)
3
Cap Tank
---
---
---
Top Cover
---
2
(p 49)
Left Cover
---
7
(p 51)
Bottom Cover
6
---
(p 51)
Cover Joint
---
2
(p 51)
Right Cover
(p41)
Ink Supply Tank
(Magenta)
---
1
(p 50)
Ink Supply Tank
(Yellow)
---
1
(p 50)
Ink Supply Tank
(Cyan)
---
1
(p 50)
Ink Supply Tank
(Black)
---
1
(p 50)
Ink Supply Tank
Tube Assy
---
8
(p 50)
Guide Tube Tank
---
4
(p 50)
Cover Tube Tank
3
2
(p 50)
Right Cover
---
7
(p 51)
Panel Housing
Lower
---
---
---
Speaker
---
2
---
Panel Housing
Lower
---
---
---
Panel Housing
Lower
---
---
---
Panel Housing
Lower
---
---
---
Panel Housing
Lower
---
---
---
Panel Housing
Lower
---
---
---
LCD Assy
---
2
---
Panel Housing
Lower
---
---
---
Panel Housing
Lower
---
---
---
LCD
---
---
---
Panel Housing
Lower
---
---
---
Panel Housing
Lower
---
---
---
LCD Holder
---
3
---

Epson L565 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	100 pages
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Indonesia
Maximum duty cycle	- pages per month
Paper input type	Paper tray
Total input capacity	30 sheets
Total output capacity	100 sheets
Photo paper sizes	10x15, 13x18 cm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Black
Market positioning	Home & office
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0
Internal memory	- MB
Sound pressure level (copying)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.6 W
Power consumption (average operating)	11 W
Sustainability certificates	ENERGY STAR
Pallet width	800 mm
Pallet height	1320 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	563 mm
Package width	465 mm
Package height	315 mm
Package weight	9060 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	377 mm
Width	484 mm
Height	226 mm
