Epson L565 Service Manual

L565/L566 Series Revision A
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 50
Confidential

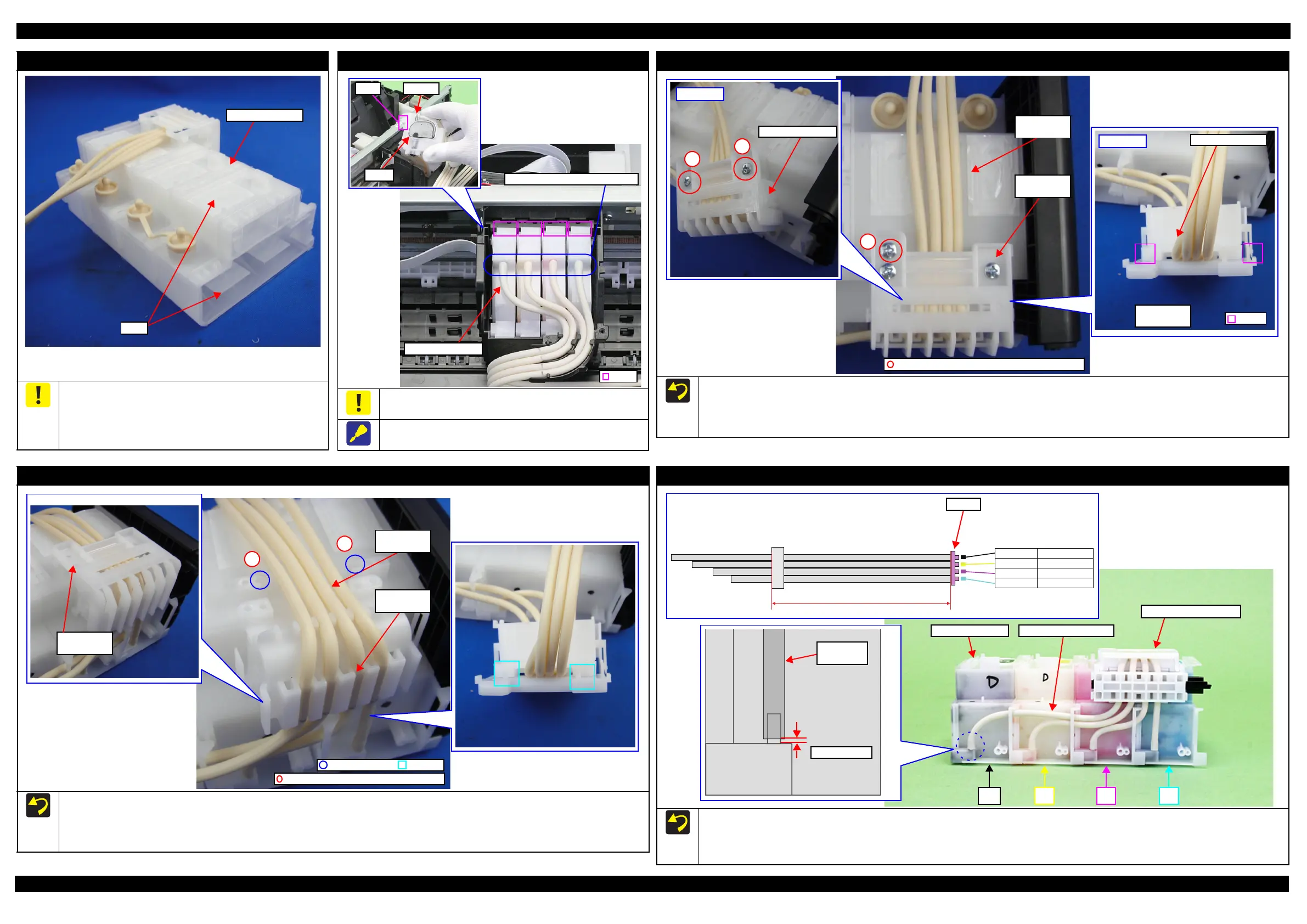

Ink Supply Tank Assy
 Be careful not to damage or peel off the film of the Ink Supply
Tank.
 Be careful about how to place the Ink Supply Tank Assy in
order to prevent printing failure from occurring. (See
"2.1.5Checks and Precautions before Disassembling (p27)" .)
Film
Ink Supply Tank
Adapter
Be careful not to damage or peel off the film of the Adapter.
Use a precision screwdriver when releasing the hooks of the
Adapter.
Adapter
Film
Hook
Connection of Ink Supply Tubes
Hook
Ink Supply Tube
Cover / Guide Tube Tank
Follow the procedure below when removing the Cover Tube Tank and Guide Tube Tank.
1. Removing the screw (x1) of the Cover Tube Tank from Ink Supply Tank Assy.
2. Removing the screw (x2) of the Cover Tube Tank .
3. Removing the hooks (x2) of the Cover Tube Tank and separating Cover Tube Tank and Guide Tube Tank.
1
Ink Supply
Tank Assy
Cover Tube
Tank
C.B.P-TITE SCREW 3x6 F/ZN-3C (4 ± 1
Back side
Guide Tube Tank
Cover Tube
Tank
Hook
Guide Tube Tank
Right side
2
3
Cover / Guide Tube Tank
Follow the procedure below when installing the the Cover Tube Tank and Guide Tube Tank.
1. Joint the Cover Tube Tank to Guide Tube Tank and tighten the screw (x1) of the Cover Tube Tank.
2. Insert the dowels (x2) of the Cover Tube Tank to the positioning Hole (x2) of the Ink Supply Tank Assy.
3. Tighten the screw (x2) of the Cover Tube Tank.
Ink Supply
Tank Tube
Guide Tube
Tank
C.B.P-TITE SCREW 3x6 F/ZN-3C (4 ± 1
1
2
DowelPositioning Hole
Cover Tube
Tank
Ink Supply Tank Tube Assy
 When connecting the Ink Supply Tank Tube to the Ink Supply Tank, confirm the color indicated on the film of the Ink Supply Tank, and take
care not to connect them with wrong joints.
 When connecting the Ink Supply Tank Tube to the Ink Supply Tank, insert the tubes to the full and make sure the gaps between the end of tubes
and the tank are 0.5 mm long or less.
Yellow
Black
358 ± 1 mm
Cyan 311 ± 1 mm
387 ± 1 mm
Magenta 330 ± 1 mm
265 ± 1 mm
Joint
Cover/Guide Tube Tank
Ink Supply Tank Tube
CMBk Y
Ink Supply Tank
Ink Supply
Tank Tube
0.5 mm or less

Epson L565 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	100 pages
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Indonesia
Maximum duty cycle	- pages per month
Paper input type	Paper tray
Total input capacity	30 sheets
Total output capacity	100 sheets
Photo paper sizes	10x15, 13x18 cm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Black
Market positioning	Home & office
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0
Internal memory	- MB
Sound pressure level (copying)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.6 W
Power consumption (average operating)	11 W
Sustainability certificates	ENERGY STAR
Pallet width	800 mm
Pallet height	1320 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	563 mm
Package width	465 mm
Package height	315 mm
Package weight	9060 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	377 mm
Width	484 mm
Height	226 mm
