Epson L565 Service Manual

Confidential
Disassembly/Reassembly Disassembly/Reassembly Procedures 33
L565/L566 Series Revision A
2.2 Disassembly/Reassembly Procedures
This section describes procedures for disassembling the parts/units in a flowchart format. For some parts/units,
detailed procedures or precautions are provided (accordingly indicated by icons and cell's color). Refer to the
explanations in the example chart below and perform an appropriate disassembling and assembling procedure.
(See "2.3 Detailed Disassembly/Reassembly Procedure for each Part/Unit (p44)".)
For routing cables, see "2.4 Routing FFCs/cables (p53)".

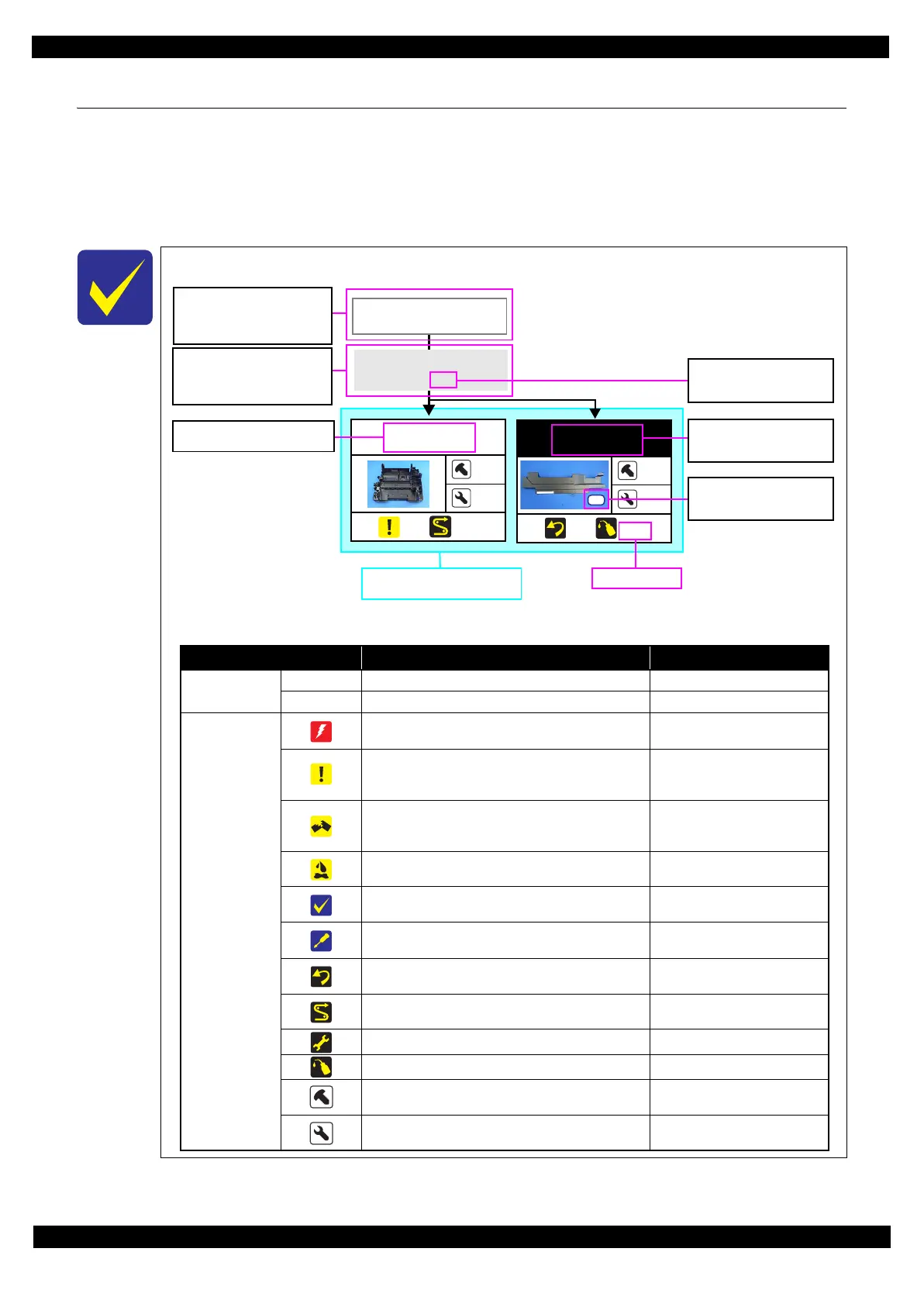

The example below shows how to see the charts on the following pages.
Housing Rear
1
4
(p22) (p43)
S4
Frame Base Assy
---
---
(p21) (p27)
Paper Guide
Upper Assy (p29)
 CR Timing Belt
 FFC/ Cable *1
Shows necessary
procedures before
removing the following
parts.*
Black letters indicate a part/
unit not supplied as an ASP.
Item Description Reference
Parts/unit name
White-letter
Part/unit supplied as an ASP ---
Black-letter
Part/unit not supplied as an ASP ---
Icon
Indicates a practice or condition that could result in
injury or loss of life if not strictly observed.
Indicates the reference page in
blue-letter
Indicates a practice or condition that could result in
damage to, or destruction of equipment if not strictly
observed.
Indicates the reference page in
blue-letter
Indicates the parts that are inevitably broken in the
disassembling procedure, and should be replaced with
a new one for reassembly.
Indicates the reference page in
blue-letter
Indicates the parts that may cause the ink spill when
they are removed.
"2.1.5 Checks and Precautions
before Disassembling (p27)"
Indicates necessary check items in the disassembling/
assembling procedure.
Indicates the reference page in
blue-letter
Indicates supplementary explanation for disassembly
is given.
Indicates the reference page in
blue-letter
Indicates particular tasks to keep quality of the units
are required.
Indicates the reference page in
blue-letter
Indicates particular routing of cables is required.
Indicates the reference page in
blue-letter
Indicates particular adjustment(s) is/are required. Chapter 3 " Adjustment (p56)"
Indicates lubrication is required. Chapter 4 " Maintenance (p70)"
Indicates the number of screws securing the parts/
units.
---
Indicates the points secured with other than a screw
such as a hook, rib, dowel or the like.
---
White letters indicate a
part/unit supplied as an
ASP.
Shows the screw types and
the specified torque on the
“Screw type/torque list”.
Reference pageShows removal/installation
as a unit/assy. is available.
The name enclosed in gray
indicate a part/unit that
must be removed on the
way to the target parts.
Note "*": The box with only part names means the removal of the parts. If the name of FF
C
or a cable is shown, disconnect the FFC or cable from the connector.
Shows the procedure
number on the “FFC/
cable list”.

Epson L565 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	100 pages
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Indonesia
Maximum duty cycle	- pages per month
Paper input type	Paper tray
Total input capacity	30 sheets
Total output capacity	100 sheets
Photo paper sizes	10x15, 13x18 cm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Black
Market positioning	Home & office
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0
Internal memory	- MB
Sound pressure level (copying)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.6 W
Power consumption (average operating)	11 W
Sustainability certificates	ENERGY STAR
Pallet width	800 mm
Pallet height	1320 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	563 mm
Package width	465 mm
Package height	315 mm
Package weight	9060 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	377 mm
Width	484 mm
Height	226 mm
