Epson L565 Service Manual

Confidential
Appendix Points to be checked before packing the printer 79
L565/L566 Series Revision A

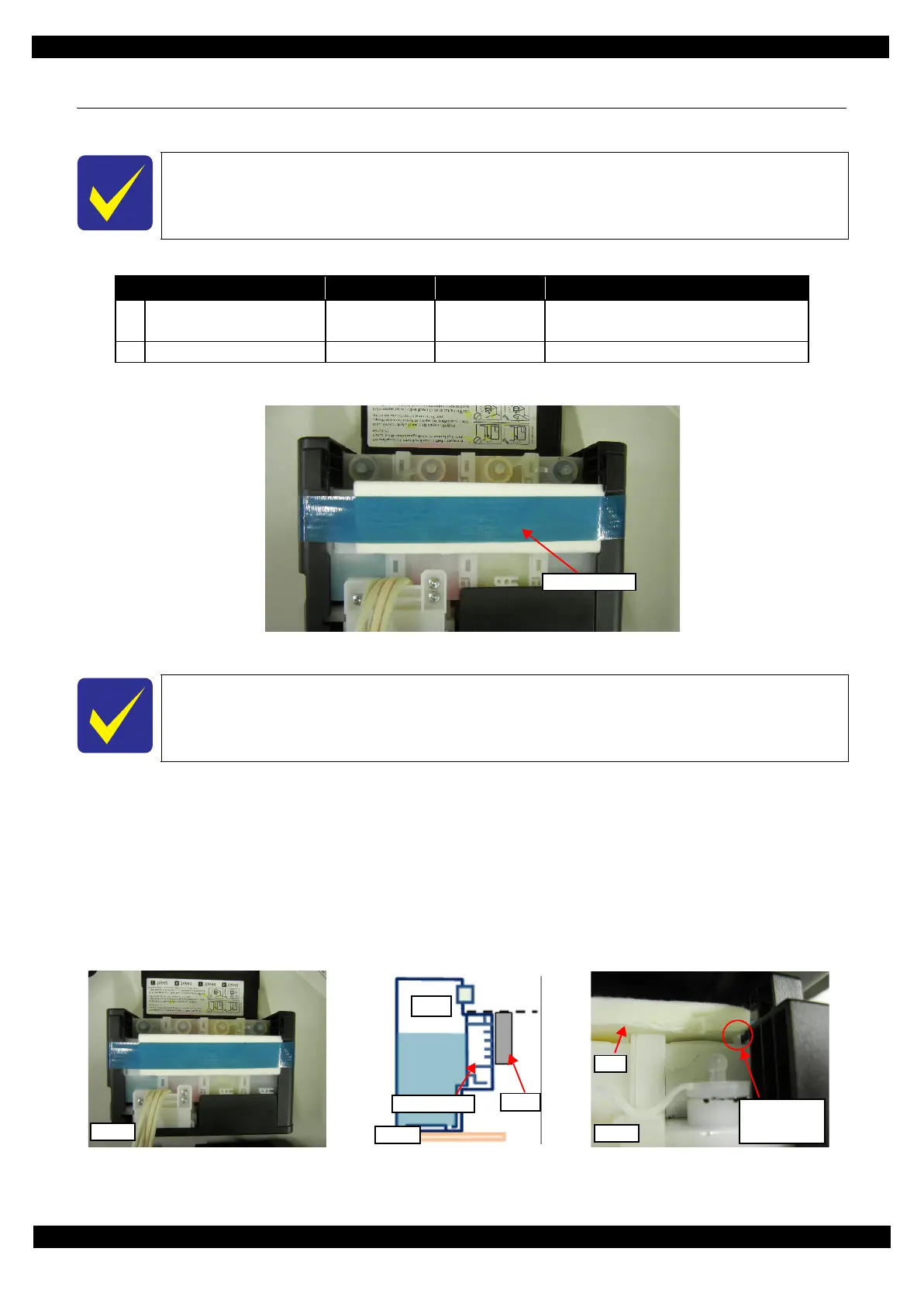

5.2 Points to be checked before packing the printer
To avoid the trouble, such as ink leaks. Products need to be packed following to the procedure mentioned below.
 In the case of Ventilation Film less Ink Tank
Figure 5-2. Attaching the Item
 Important points when attaching the Porous Pad
1. Attach the Porous Pad on the Ventilation hole as fig1.
2. The height positions of Porous Pad is almost the same as the air chamber in Ink Tank as fig2.
If the Porous Pad is attached more up remarkly than the air chamber , there is the risk that the tube becomes
kink because the Porous Pad pushes the curved part of the tube as fig4.
3. Attach the Porous Pad noting that Porous Pad covers all Ventilation holes of Ink Tank as fig3.
 “Highland” means that applied to the customer who is in the place where the altitude
difference with service center is over 1, 000m asl .
 In case of the customer who is in less than 1000m asl , “Lowland” is applied.
Item Highland Lowland Note
1 Amount of ink in Ink Tank Full Not Full Full;Fill ink up to upper limit line
Not Full;An original amount of ink is kept
2 Porous Pad Attach Not Attach Attach on the Ventilation hole
 Attach Porous Pad on the Ventilation hole.(In the case of Ventilation Film less Ink Tank).
 Size of Porous Pad is as follows
Size of Porous Pad : H 35mm×W 120mm×D 8mm
Porous Pad
fig2fig1
fig2
fig3
Pad
Air Chamber
Tank
Ventilation
hole
Pad

Epson L565 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	100 pages
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Indonesia
Maximum duty cycle	- pages per month
Paper input type	Paper tray
Total input capacity	30 sheets
Total output capacity	100 sheets
Photo paper sizes	10x15, 13x18 cm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Black
Market positioning	Home & office
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0
Internal memory	- MB
Sound pressure level (copying)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.6 W
Power consumption (average operating)	11 W
Sustainability certificates	ENERGY STAR
Pallet width	800 mm
Pallet height	1320 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	563 mm
Package width	465 mm
Package height	315 mm
Package weight	9060 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	377 mm
Width	484 mm
Height	226 mm
